9. DRIVE AND DRIVEN PULLEYS
9-6
MX’er SYSTEM
ASSEMBLY

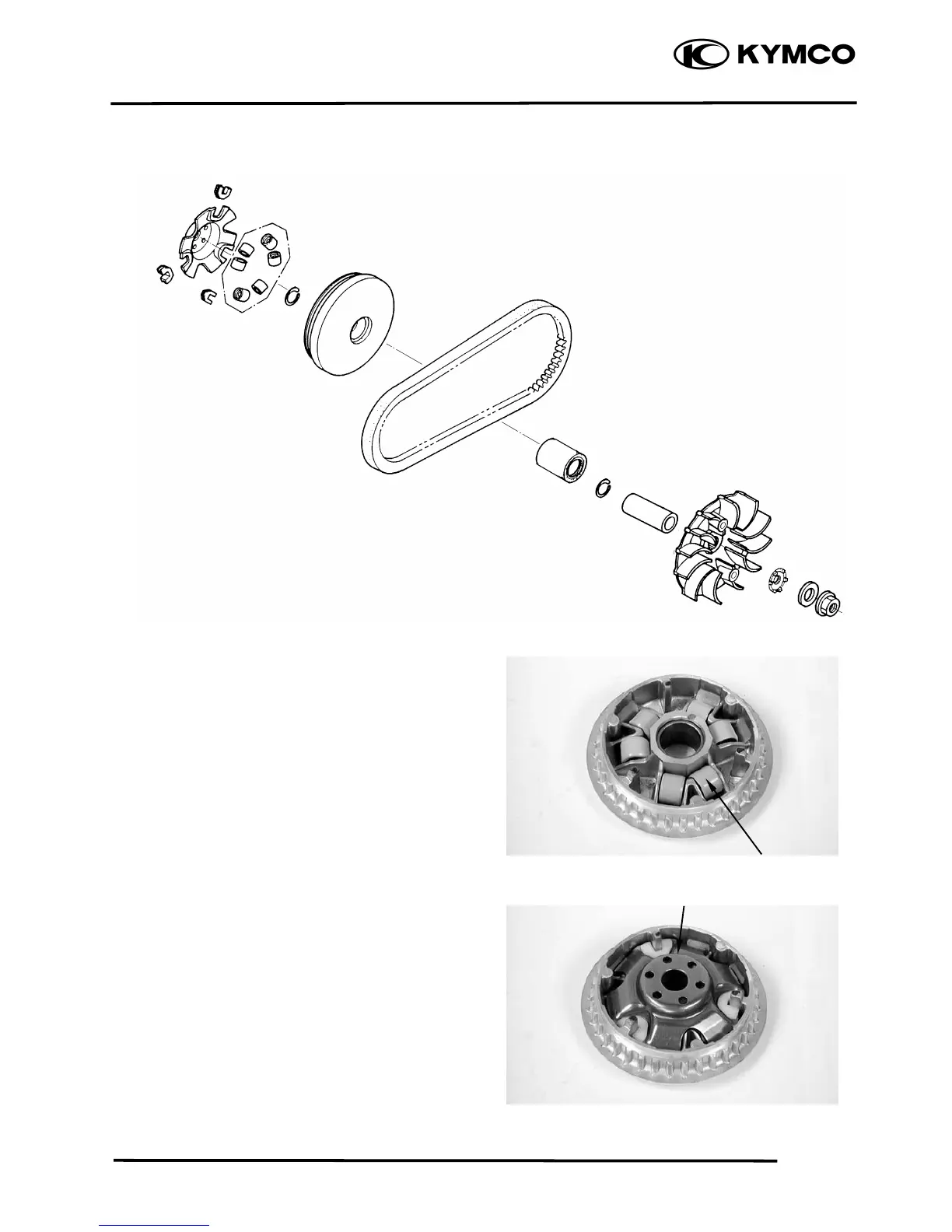

Install the weight rollers into the movable
drive face.
Install the ramp plate.
Weight Rolle
r
Ramp Plate
