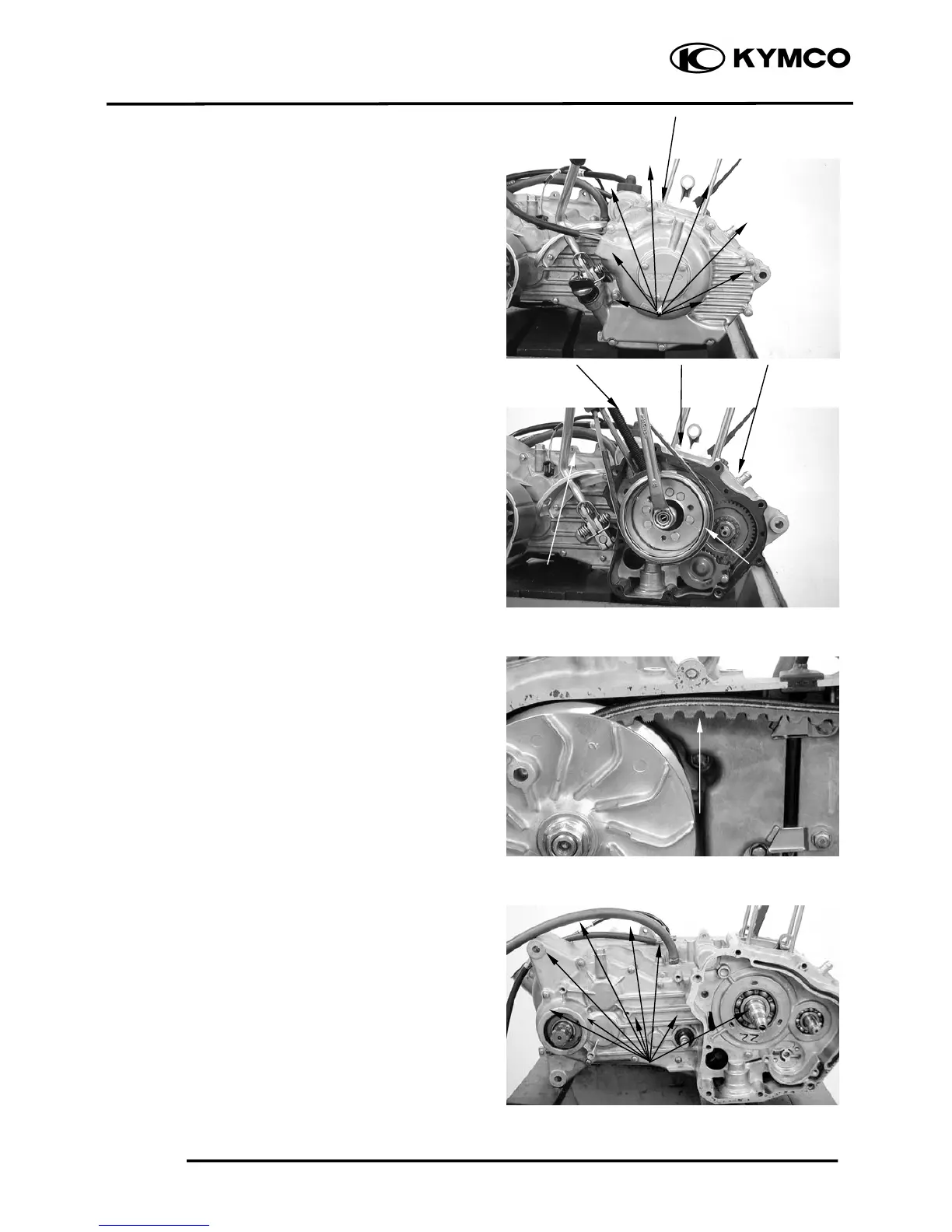

FINAL REDUCTION DISASSEMBLY
Drain engine oil and transmission gear oil
into a clean container.
Remove the engine.
Remove the right crankcase cover.
Remove the shift gear spindle.
Remove the flywheel and starter clutch.
Remove the balance gear oil pump and starter
motor.
Remove the left case bolt.
Remove the transmission case cover
attaching bolts.
Fl
y
wheel
Bolts
Starter Moto
r
Shift Gear S
p
indle
Bol
t
Oil Pum
p
Balance Gea
r
Bol
t
Crankcase Cove
r
