KYMCO MX 125 - Balance Shaft; Crankcase Separation

11. CRANKCASE/CRANKSHAFT/
BALANCE SHAFT
11-3
MX’er SYSTEM

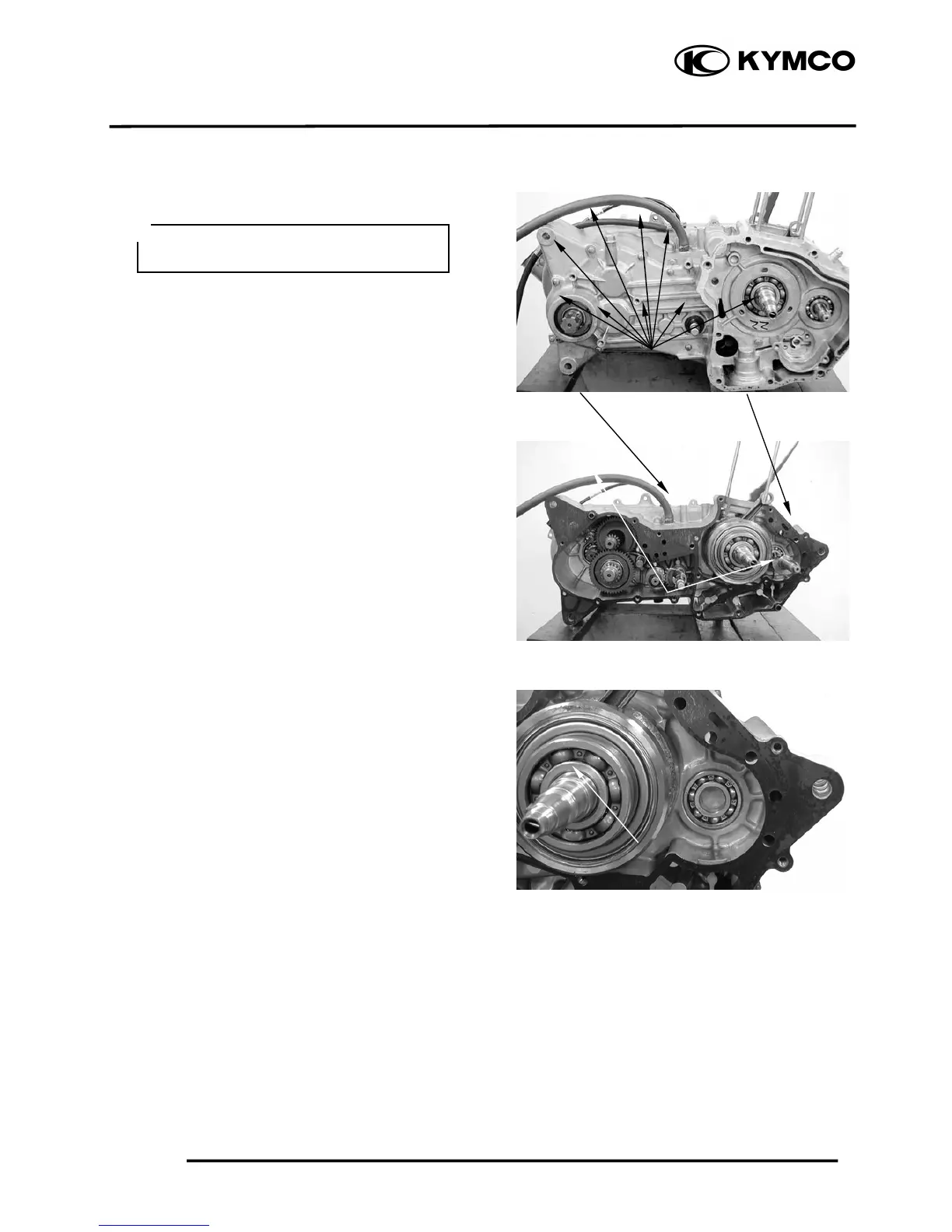

CRANKCASE SEPARATION
Remove the left and right crankcase
attaching bolts. (Section 10)
Separate the left and right crankcase halves.
Remove the gasket and dowel pins.
Remover balance shaft from the left
crankcase.
Dowel Pins
Crankcase Bolts
Gaske
t
Do not damage the crankcase gasket
surface.

Balance Shaf
t
Crankshaf
t
