KYMCO MX 125 - Final Reduction Inspection; Final Reduction Installation

10. FINAL REDUCTION/
TRANSMISSION SYSTEM
10-7
MX’er SYSTEM

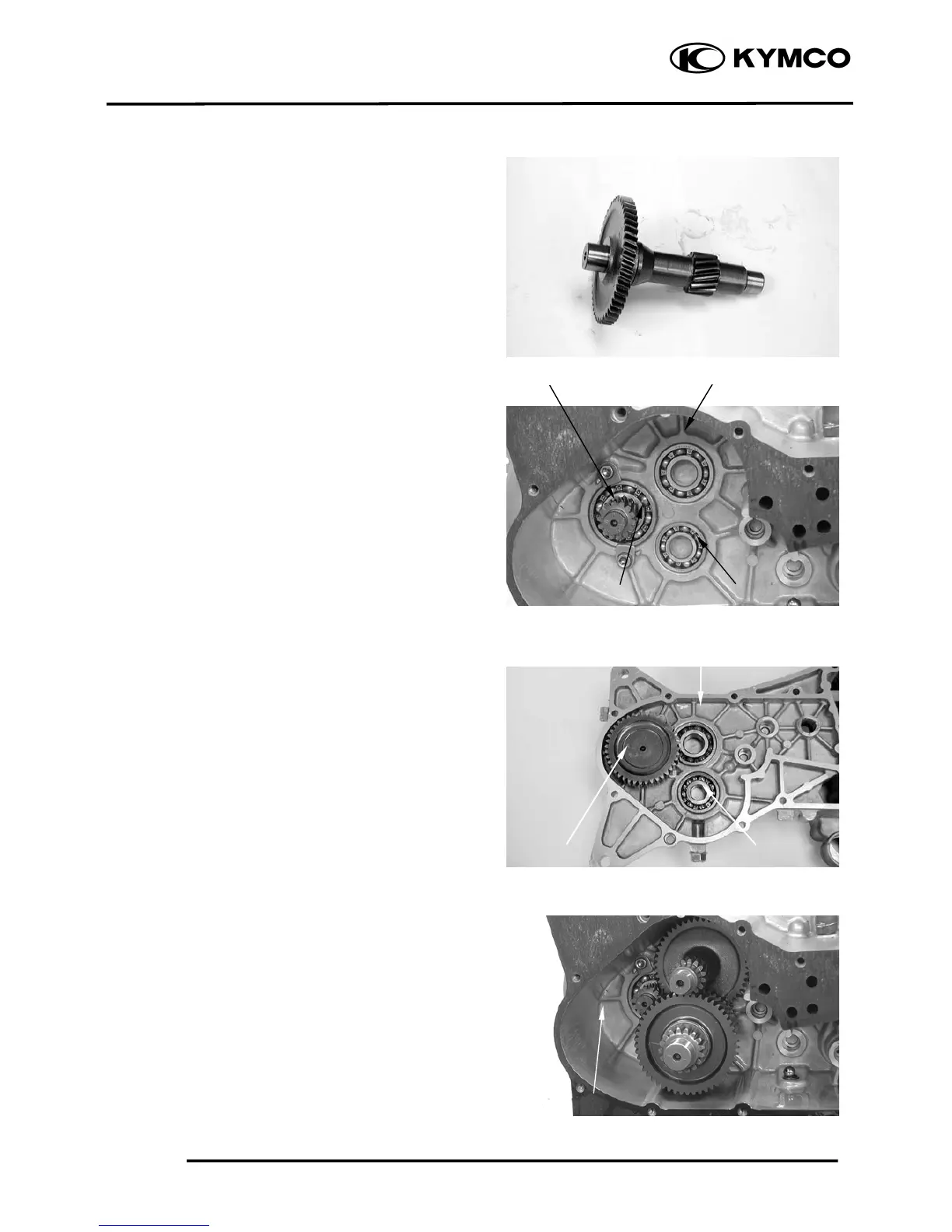

FINAL REDUCTION INSPECTION
Inspect the countershaft and gear for wear or
damage.
Inspect the drive shaft and gear for wear or
damage.
Check the left crankcase bearings for
excessive play and inspect the oil seal for
wear or damage.
Inspect the final shaft gear for wear or
damage.
Check the right crankcase bearings for
excessive play and inspect the oil seal for
wear or damage.
FINAL REDUCTION
INSTALLATION
Install the final gear and final shaft into the
left crankcase.
Install the countershaft and gear into the left
crankcase.
Install the main shaft and gear into the left
crankcase.
Countershaf
t
Bearing
Drive Shaf
t
Final Shaft Gea
r
Left Crankcase
Drive Shaf
t
Bearing Main Shaf
t
Bearing
Main Shaf
t
Bearing
Countershaf
t
Bearing
