3. INSPECTION/ADJUSTMENT
3-3
MX’er SYSTEM
Check the fuel tubes and replace any parts,
which show signs of deterioration, damage
or leakage.

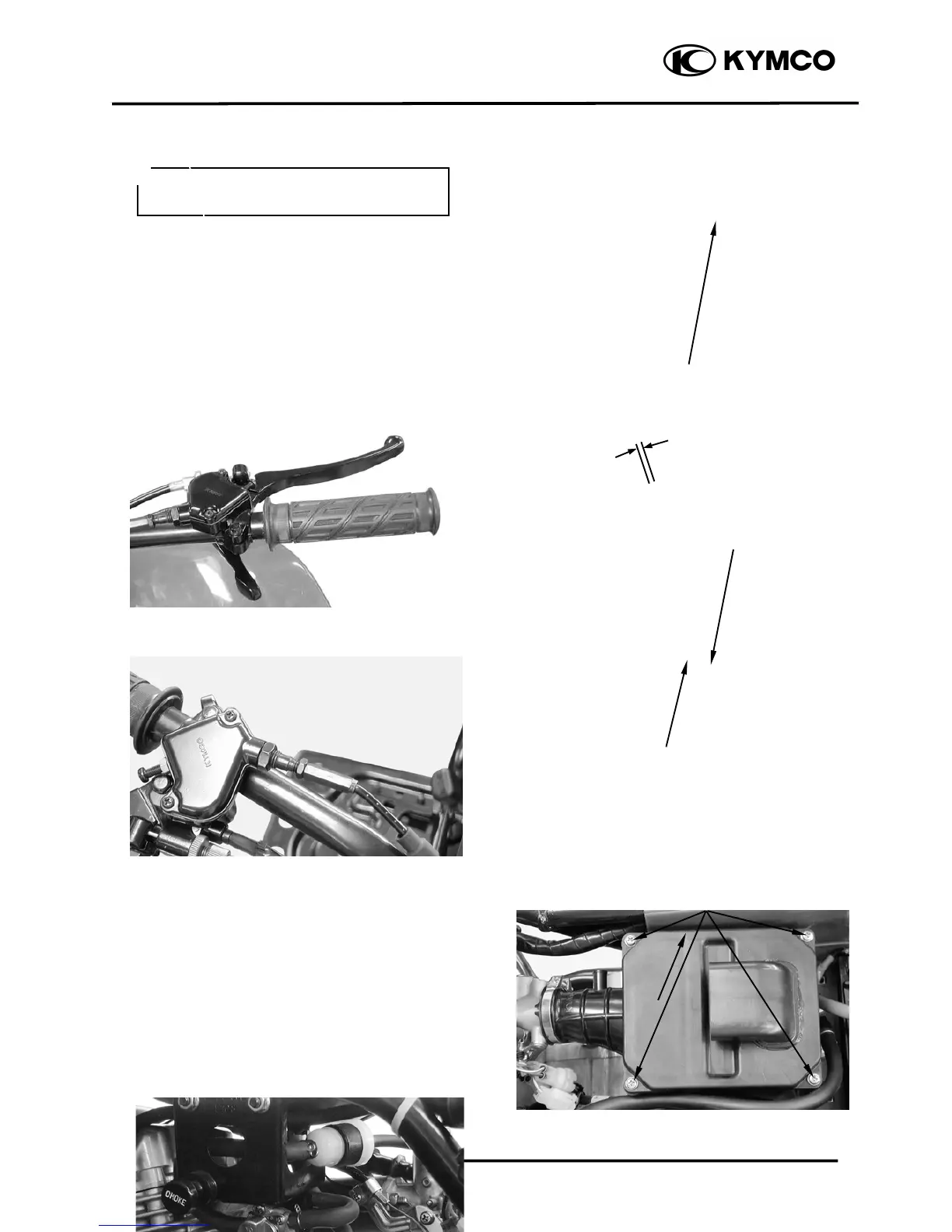

THROTTLE OPERATION
Check the throttle to swing for smooth
movement.
Measure the throttle to swing free play.
Free Play: 14mm
Minor adjustment is made with the
adjusting nut at the throttle to swing above.
Slide the rubber cover out and adjust by
loosening the lock nut and turning the
adjusting nut.
AIR CLEANER
AIR CLEANER REPLACEMENT
Remove the rear side covers.
Remove four screws on the air cleaner case
cover and the cover.
Check the element and replace it if it is
excessively dirty or damaged.
Do not smoke or allow flames or sparks
in your working area.
