5. FUEL SYSTEM
5-4
MX’er SYSTEM

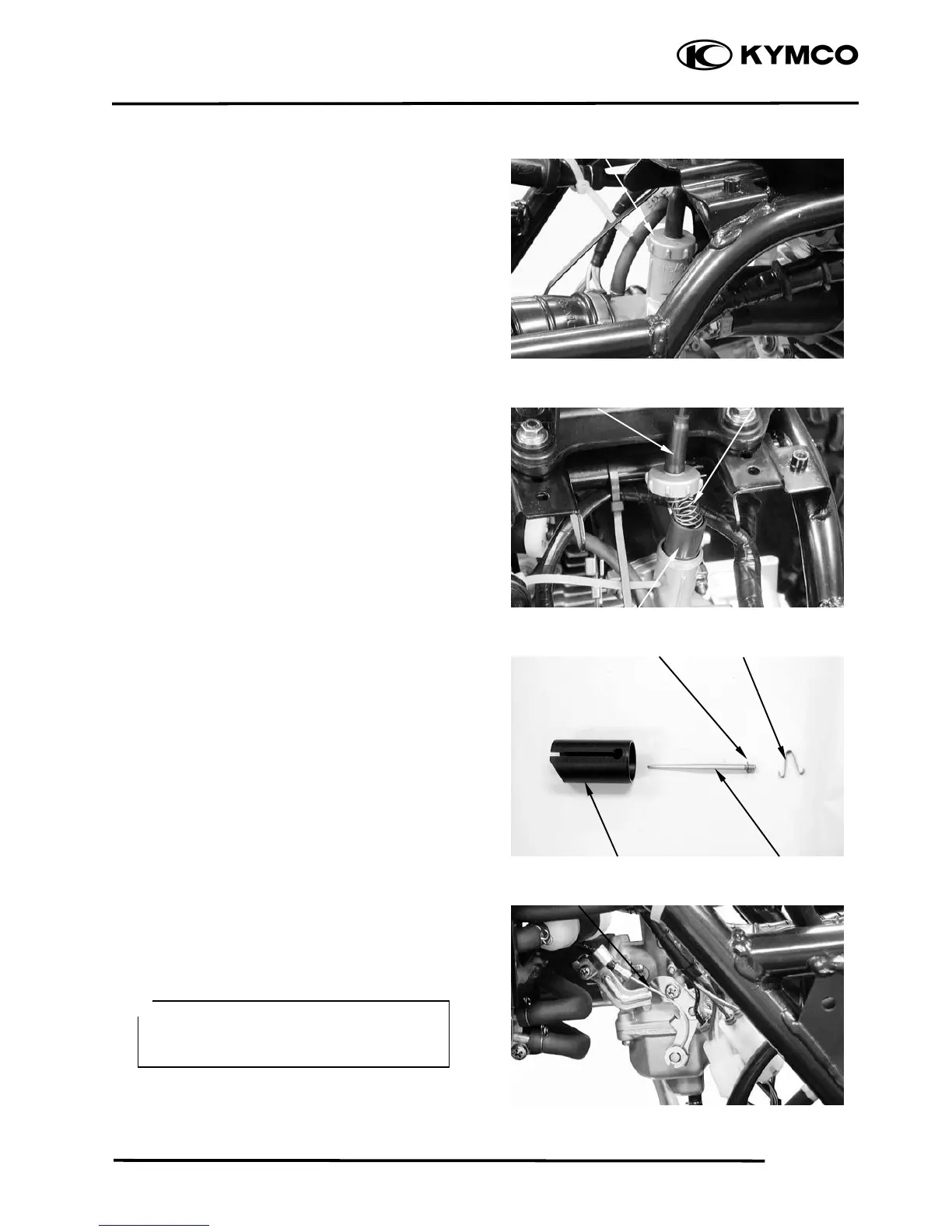

THROTTLE VALVE DISASSEMBLY
Remove the front cover.
Remove the front fender.
Remove the carburetor cap.
Pull out the throttle valve.
Disconnect the choke knob cable.
Disconnect the throttle cable and remove the
spring from the throttle valve.
Pry off the needle retainer and remove the jet
needle.
Check the throttle valve and jet needle for
wear or damage.
CARBURETOR REMOVAL
Switch the fuel valve OFF.
Loosen the drain screw to drain the gasoline
from the float chamber.
Disconnect the fuel inlet tube and the choke
cable.
Carburetor Cap
Spring
Throttle Cable
Throttle Valve
Clip
Needle Retaine
r
Throttle Valve
Jet Needle
Choke Cable
• Keep sparks and flames away from the
work area.
• Drain gasoline into a clean container.

