6. ENGINE REMOVAL/INSTALLATION
6-2
MX’er SYSTEM

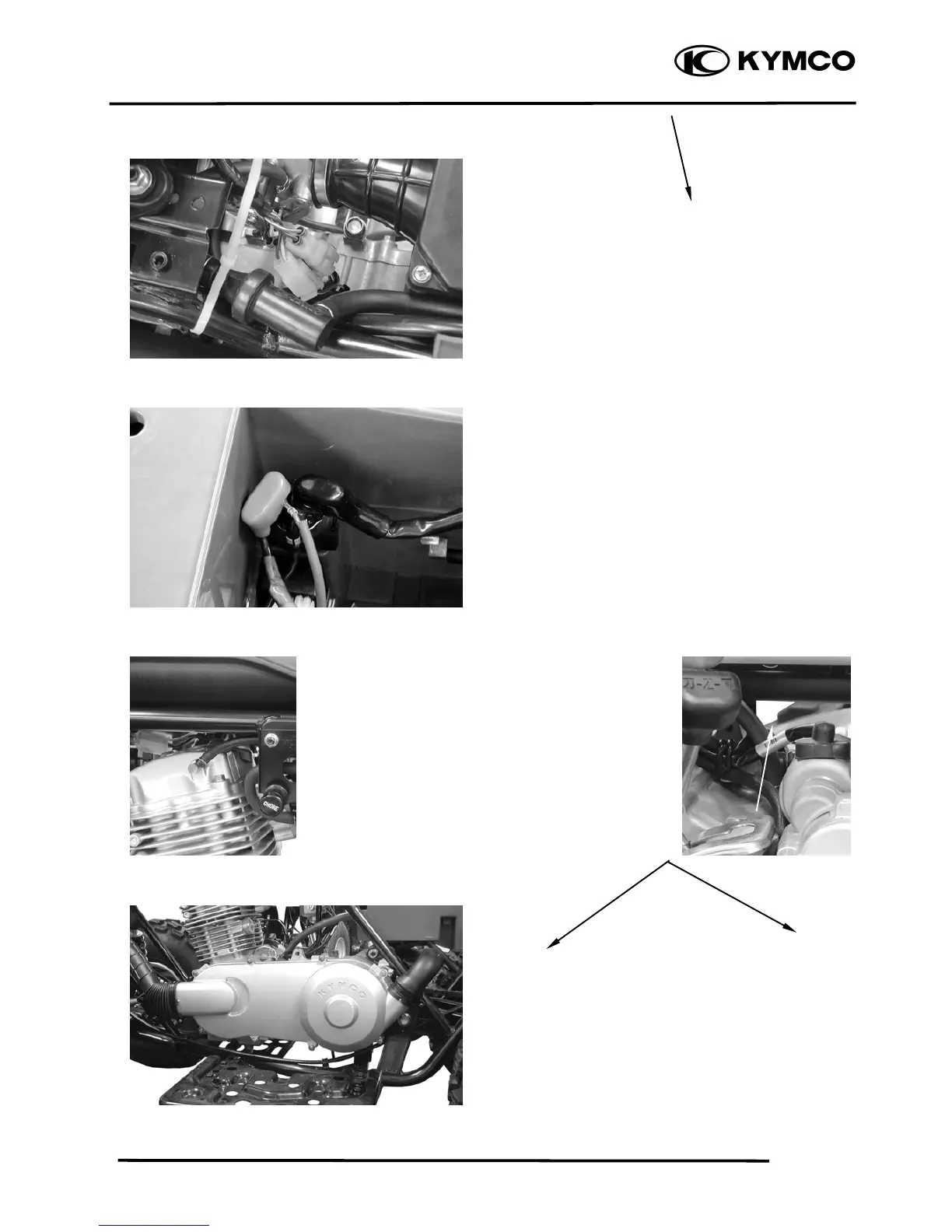

ENGINE REMOVAL
Drain engine oil and transmission oil.
Remove seat, front cover, center cover,
front fender and rear fender.
Remove the carburetor.
Disconnect the battery negative cable.
Remove the frame body cover.
Disconnect the engine negative cable.
Disconnect the A.C.G. wire connector.
Disconnect the starter motor cable from the
starter relay.
Disconnect the oil recycle tube at the engine
body.
Disconnect the oil recycle tube at the
cylinder head cover.
Loosen the drive belt air cleaner connecting
tube band screw and remove the connecting
tube.
Starter Relay
Starter Motor Cable
Oil Recycle Tube
Connecting Tube
Screw
Oil Recycle Tube
A.C.G. Wire Connecto
To Next Page
