17. LIGHTS/ SWITCHES
17-6
MX’er SYSTEM

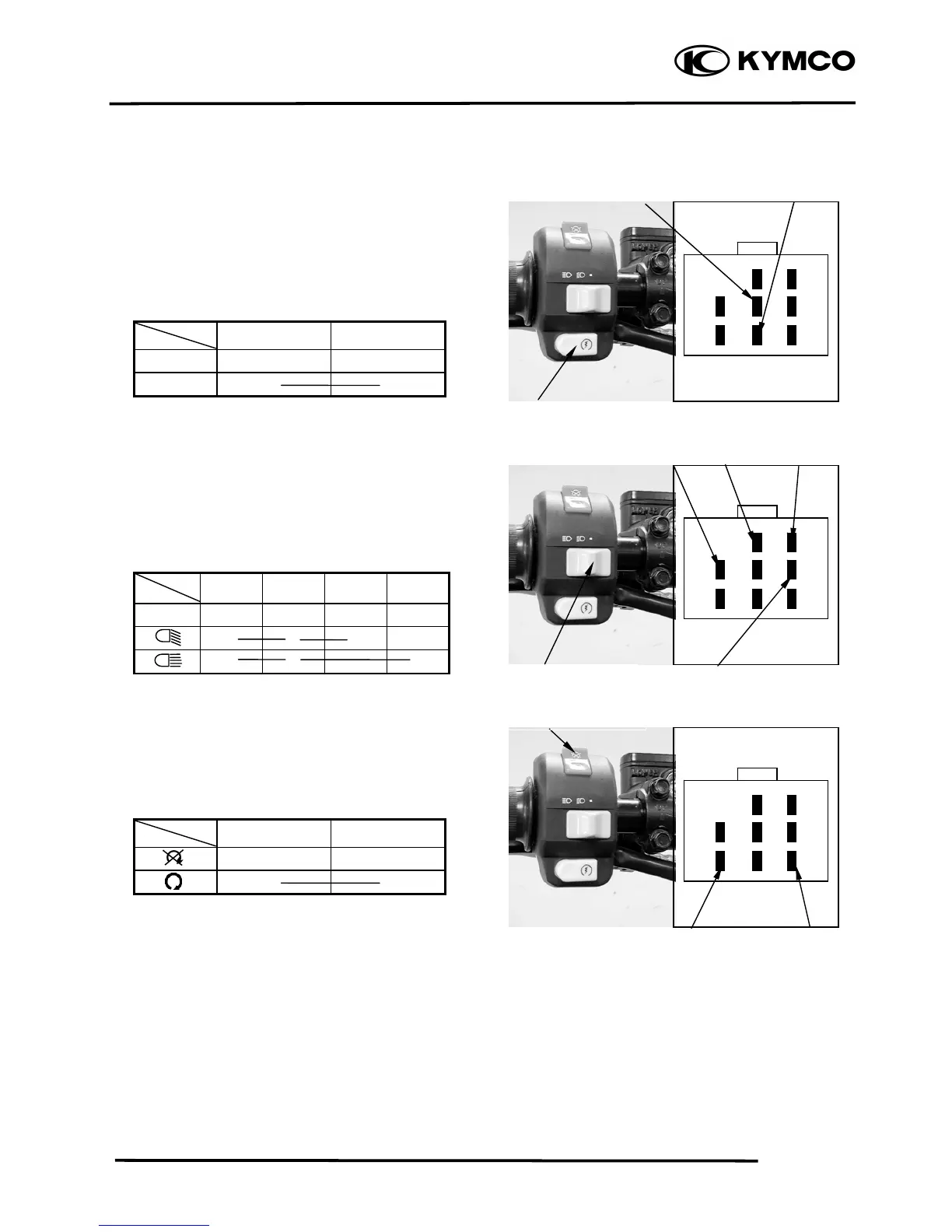

STARTER BUTTON
Remove the center cover.
Disconnect the starter button yellow/brown
and yellow/red wires.
Check for continuity between the black and
yellow/red wires.
Color
Position
Yellow/Brown Yellow/Red
FREE
PUSH ○ ○
HEADLIGHT SWITCH
Remove the center cover.
Disconnect the headlight switch wire
coupler. Check for continuity between the
headlight switch wires.
Color
Position
Black Brown White Blue

○ ○ ○
○ ○ ○
ENGINE STOP SWITCH
Remove the center cover.
Disconnect the headlight switch wire
coupler. Check for continuity between the
headlight switch wires.
Color
Position
Green/Red Green
○ ○
Yellow
/
Brown Yellow
/
Red
Starter Button
Black BrownWhite
Blue
Headlight Switch
Green/Red
Green
Engine Stop Switch
