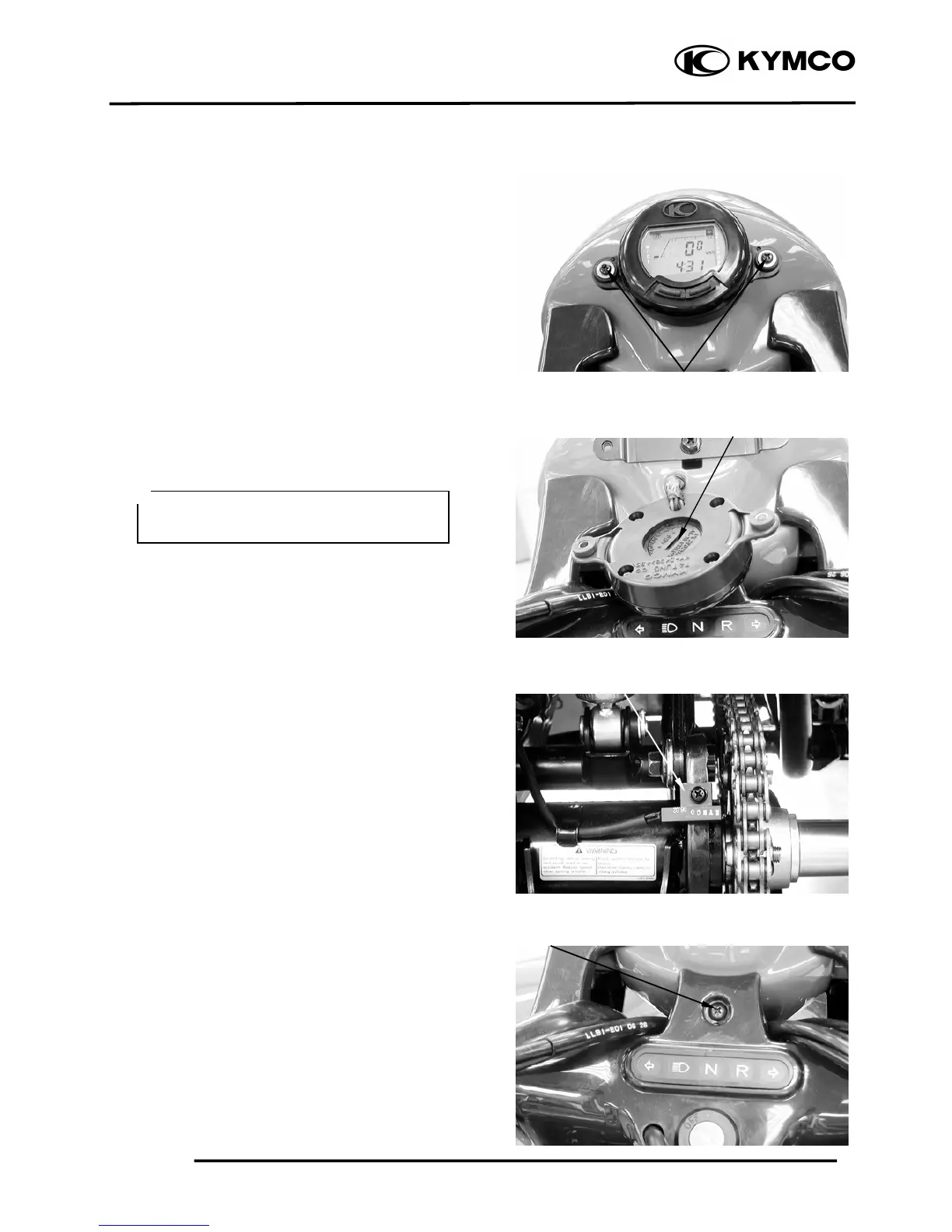

MX’er SYSTEM
INSTRUMENT
REMOVAL
Remove the two instrument attaching
screws.
Disconnect the instrument.
Remove battery cover on instrument back to
replace battery.
SENSOR WHEEL
If the sensor is lost or wore, the speed will
be not calculated on the instrument.
INDICATOR LIGHT
REMOVAL
Remove the screw and disconnect the cover
of the ignition switch.
Screws
Battery Cover
After replace battery, the instrument will
be reset. (Refer to owner’s manual)
Speed Wheel
Screw
