KYMCO MX 125 - Drive Belt;Brake Shoe;Brake System

3. INSPECTION/ADJUSTMENT
3-9
MX’er SYSTEM
thoroughly.
Install the oil drain bolt.
Torque: 0.81.2kgf-m
Fill with the recommended oil.
Oil Capacity: At disassembly : 400cc
At change : 200cc
Reinstall the oil filler bolt and check for oil
leaks.
Torque: 0.81.2kgf-m

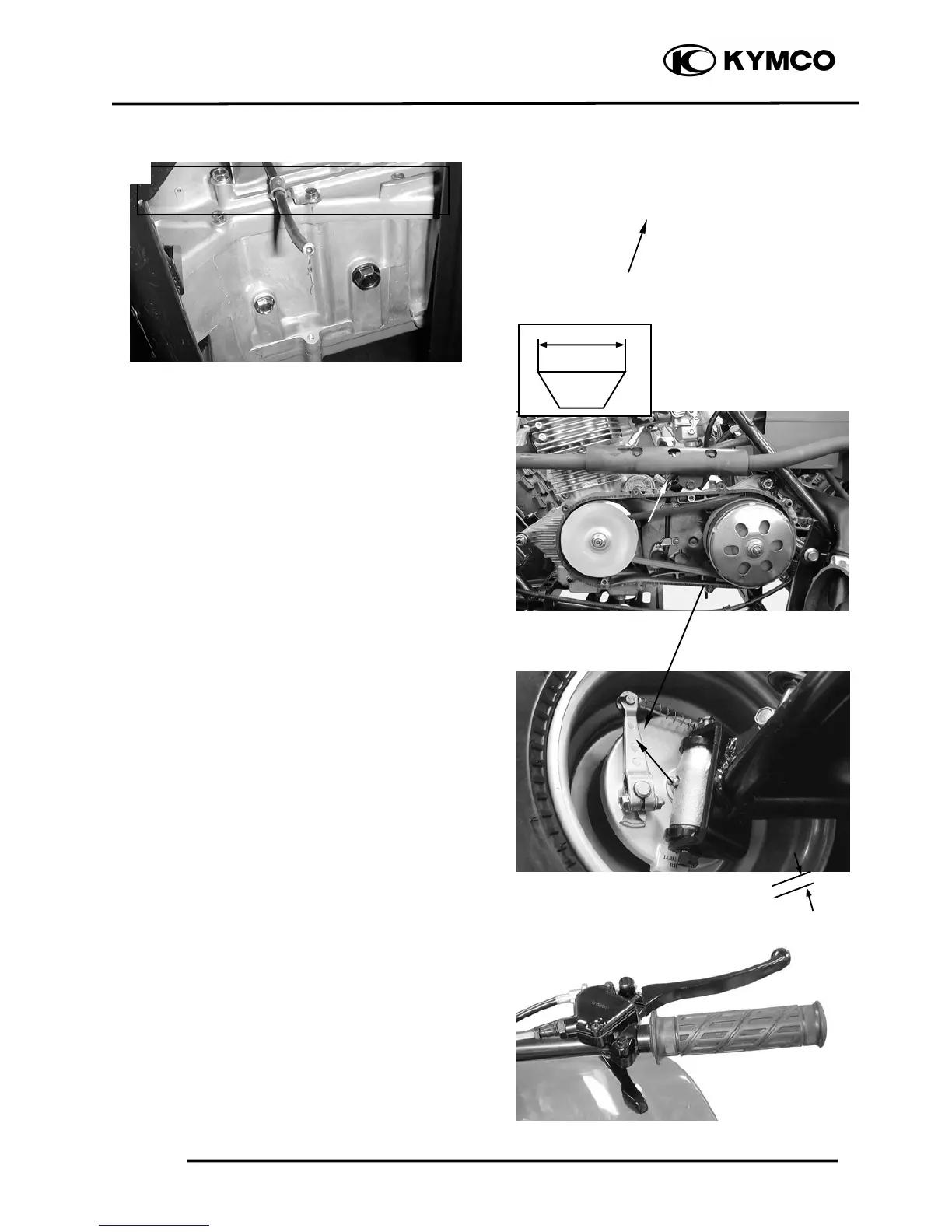

DRIVE BELT
Remove the left crankcase cover.
Inspect the drive belt for cracks, scaling,
chipping or excessive wear.
Measure the V-belt width
Service limit: 17mm
Replace the drive belt if out of specification.
BRAKE SHOE
Replace the brake shoes if the arrow on the
wear indicator plate aligns with the punch
mark on the brake panel when the brake is
fully applied.
BRAKE SYSTEM
FRONT BRAKE
Measure the front brake lever free play.
Free Play: 1020mm
Adjust if out of specification.
Make sure that the sealing washer is in
good condition.

Oil Drain Bolt/ Sealing Washe
r
Drive Bel
t
Wear Indicato
r
Punch Mark
Adjust brake lever free play:
Loosen the lock nuts.
