KYMCO MX 125 - Air Cleaner

5. FUEL SYSTEM
5-10
MX’er SYSTEM
Remove the screw on the fuel valve control
switch.
Remove the two screws on the fuel valve
body.
INSPECTION
Inspect the fuel valve strainer for dirt and
clog. Clean if necessary.
Replace the O-rings with new ones if they
are damaged or deteriorated.
AIR CLEANER
REMOVAL
Remove the seat.
Remove the four screws on the air cleaner
case cover and the cover.
Remove the air cleaner screen and element.

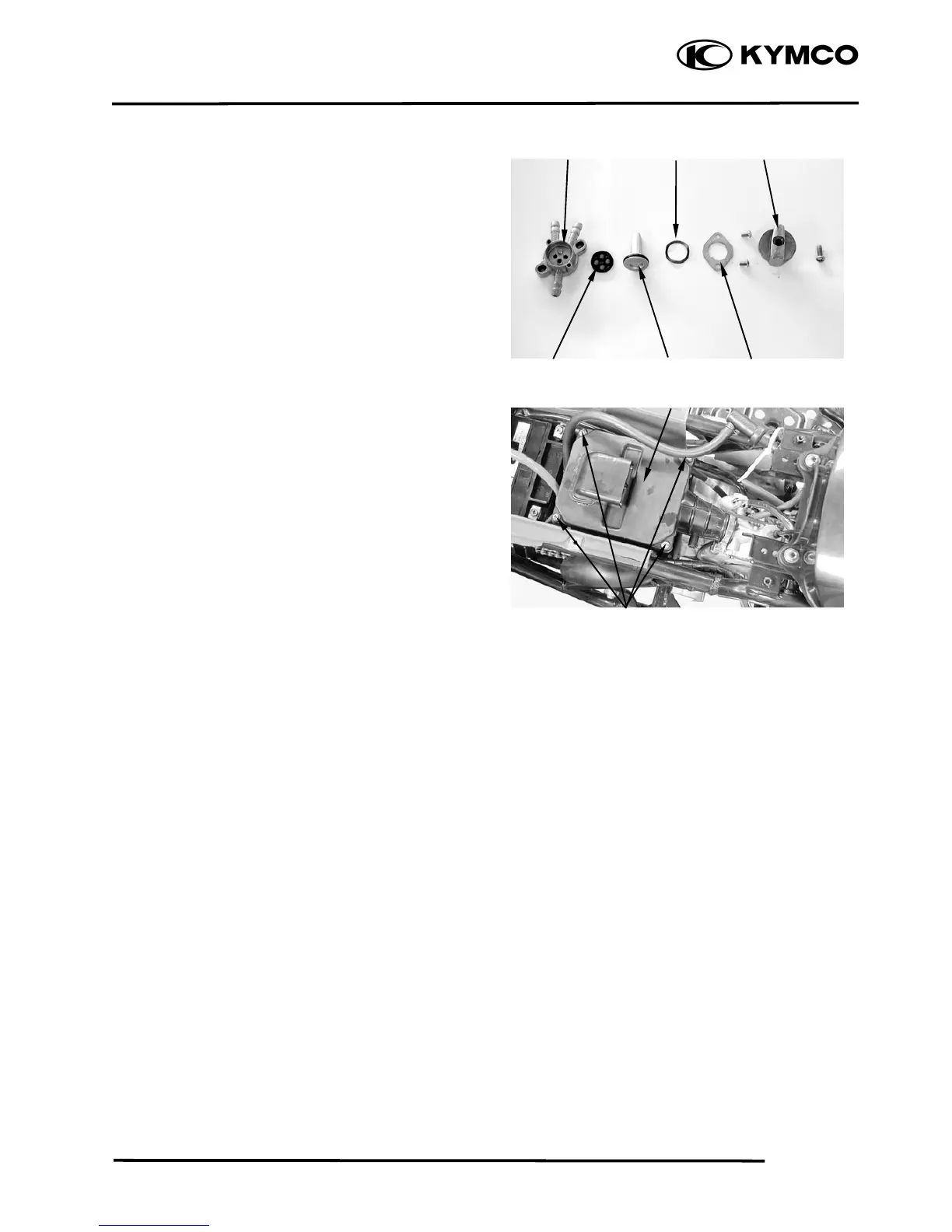

Fuel Valve Body
Screws
Air Cleaner Case Cove
r
Washe
r
Cont
r
ol Switch
Control Shaf
t
Rubber Gaske
t
Retaining Ring
