7. CYLINDER HEAD/VALVES
7-4
MX’er SYSTEM

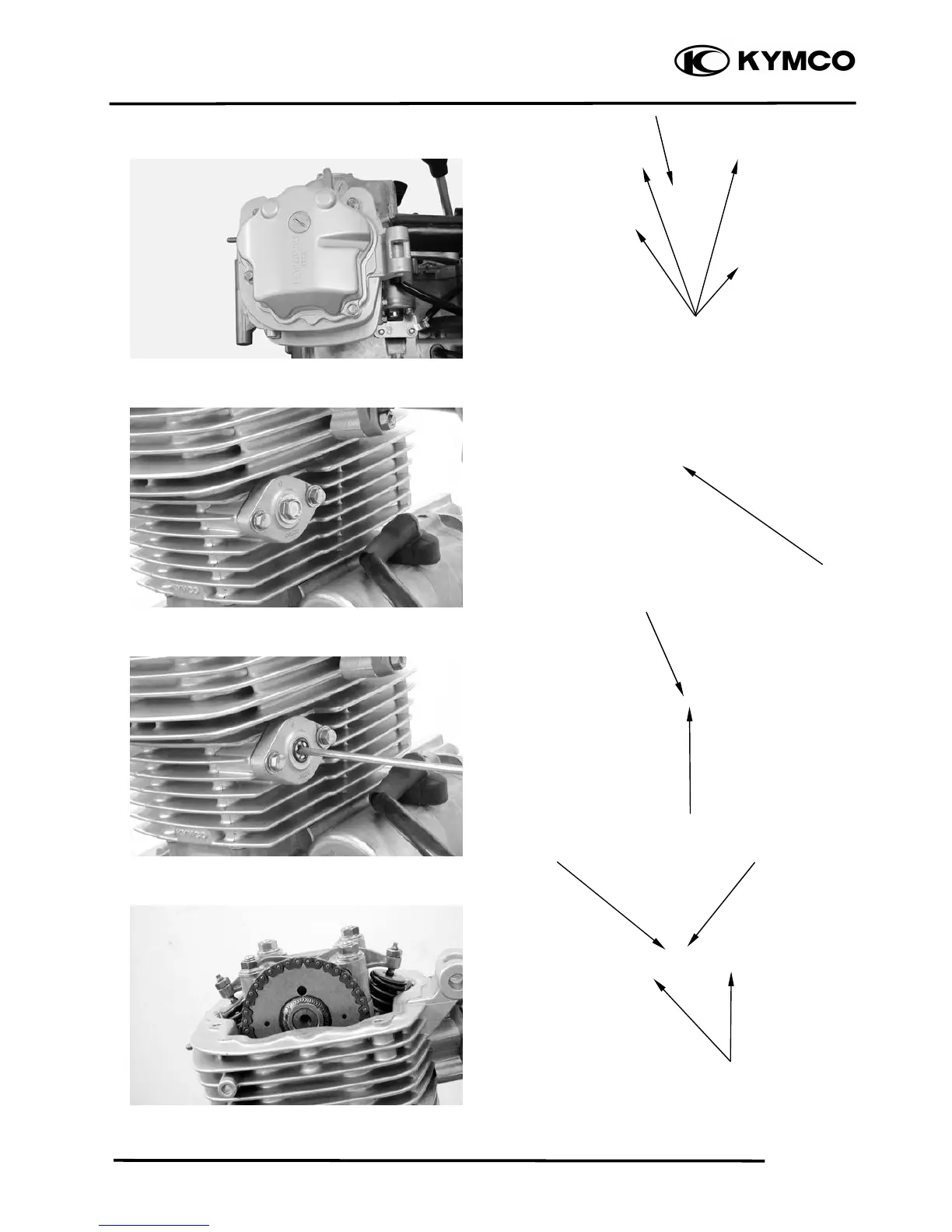

CAMSHAFT REMOVAL
Remove seat, front cover, center cover.
Front fender, fuel tank and exhaust pipe.
Remove the four cylinder head cover bolts
to remove the cylinder head cover.
Remove the cam chain tensioner cap bolt
and the O-ring.
Turn the cam chain tensioner screw
clockwise to tighten it.
Turn the flywheel counterclockwise so that
the “T” mark on the flywheel aligns with
the index mark on the crankcase to bring the
round hole on the camshaft gear facing up
to the top dead center on the compression
stroke.
Cylinder Head Cove
To Next Page
