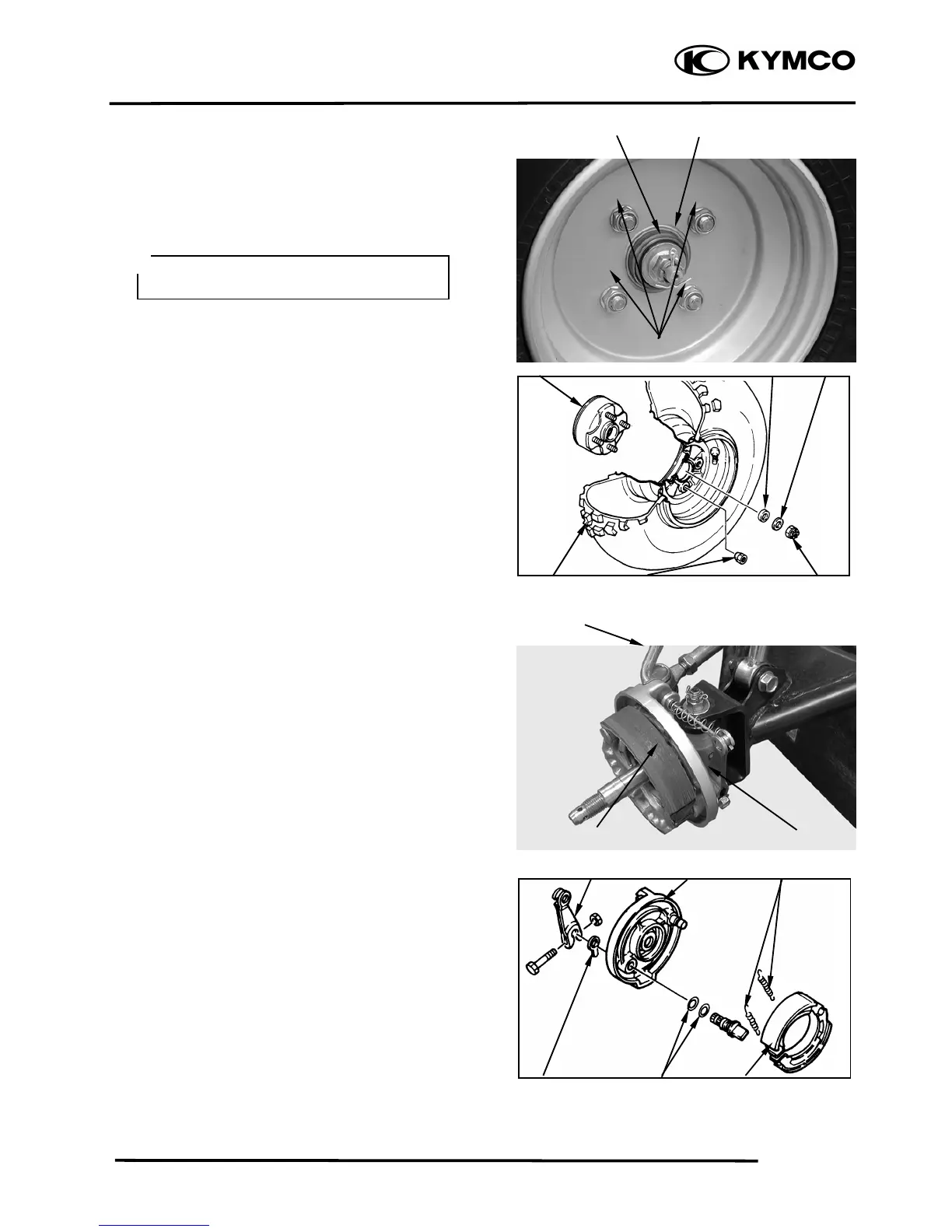

FRONT WHEEL
REMOVAL
Place the machine on a level place.
Remove four nuts attaching the wheel panel
and front wheel.
Elevate the front wheels by placing a
suitable stand under the frame.
Remove the cotter pin.
Remove nut attaching the wheel hub and
washer.
Remove the collar and wheel hub.
FRONT BRAKE DISASSEMBLY
Loosen the lock nut and tighten the adjuster
nut at brake lever. (Refer to the “FRONT
BRAKE ADJUSTMENT” section in the
CHAPTER 3.).
Disconnect the front brake cable from brake
cam lever and remove the brake panel.
Remove the brake shoes.
REMOVE
Remove brake shoes and springs.
Remove the bolt attaching camshaft lever
and remove camshaft lever.
Remove the wear indicator, camshaft and
O-
rings
Nu
t
Pin
Camshaft leve
r
Brake Cable
Support the machine securely so there is
no dan
g
er of it fallin
g
over.

Wheel Hub
Front Wheel
Colla
r
Wheel Panel Nuts
Hub Nu
t
Brake Panel
Nuts
Washe
r
Wear Indicato
r
Brake Panel
Brake Shoes
S
p
rin
g
s
Brake Shoes
O-rin
g
s
