17. LIGHTS/ SWITCHES
17-5
MX’er SYSTEM

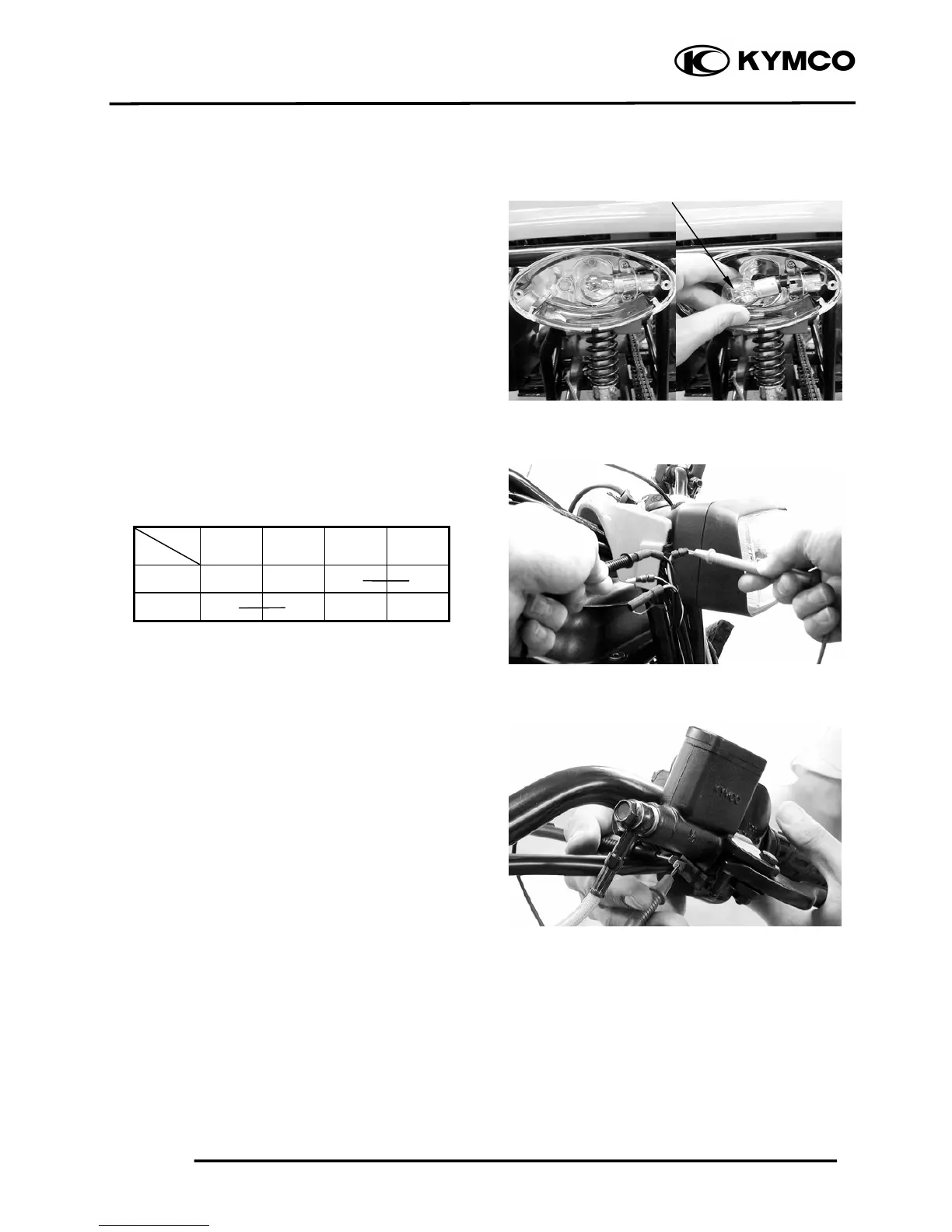

Remove the bulb and check the bulb for
damage. Replace with a new one if
necessary.
IGNITION SWITCH
Check for continuity between the wires
indicated below.
Color
Position
Black Red
Black/
White
Green
OFF ○ ○
ON ○ ○
STOP SWITCH
Disconnect the front stop switch wire
coupler.
Check for continuity between the front stop
switch wires.
Brake lever applied: There is continuity.
Brake lever released: There is no continuity.
Bul
b
