18. ONLY ATV ON ROAD AVAILABLE
18-2
MX’er SYSTEM

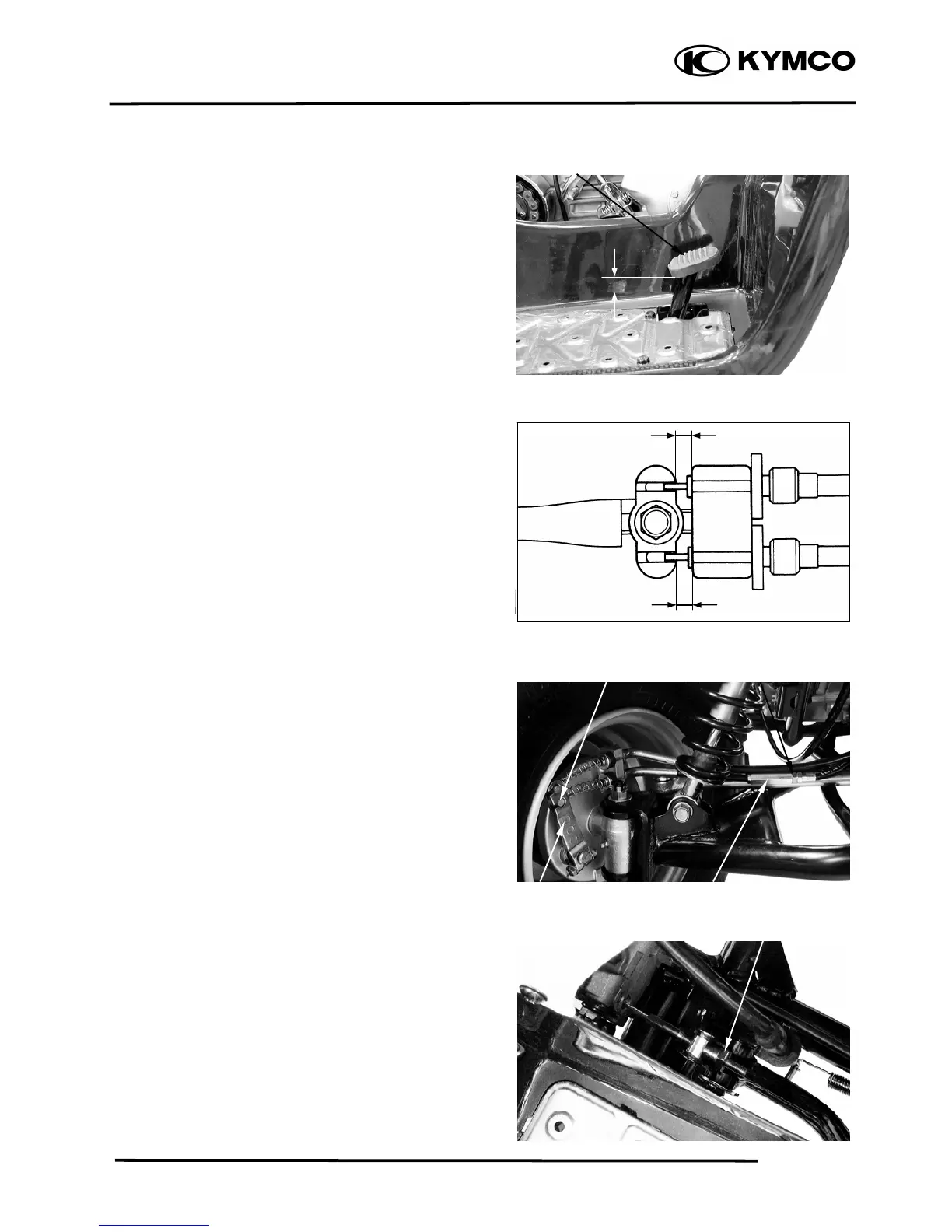

BRAKE PEDAL ADJUSTMENT
The brake pedal free play should be
adjusted
to 10~20 mm (0.4~0.8 in) at the brake pedal
pivot. If the free play is incorrect, adjust as
Follows:
Keep front brake lever free play at 10~20
mm (0.4~0.8 in). (Refer to page 3-9)
Loosen the lock nut.
Turn the adjusting bolt until the front
lower brake cable is tensed.
Apply the front brake lever and check front
bake cam lever to make sure that the brake
does not drag after adjusting.
Tighten the lock nut.
Turn the adjusting nut on the brake cam
lever to decrease play or increase play.
Turn the adjusting nut until specified free
Play is obtained.
Brake Pedal
10~20mm
Front lower brake cable Lock Nut
Brake Cam Lever Adjusting Bolt
Adjusting Nut
