KYMCO MX 125 - Front Suspension

12. FRONT WHEEL/FRONT BRAKE/FRONT
SUSPENSION/STEERING SYSTEM
12-9
MX’er SYSTEM

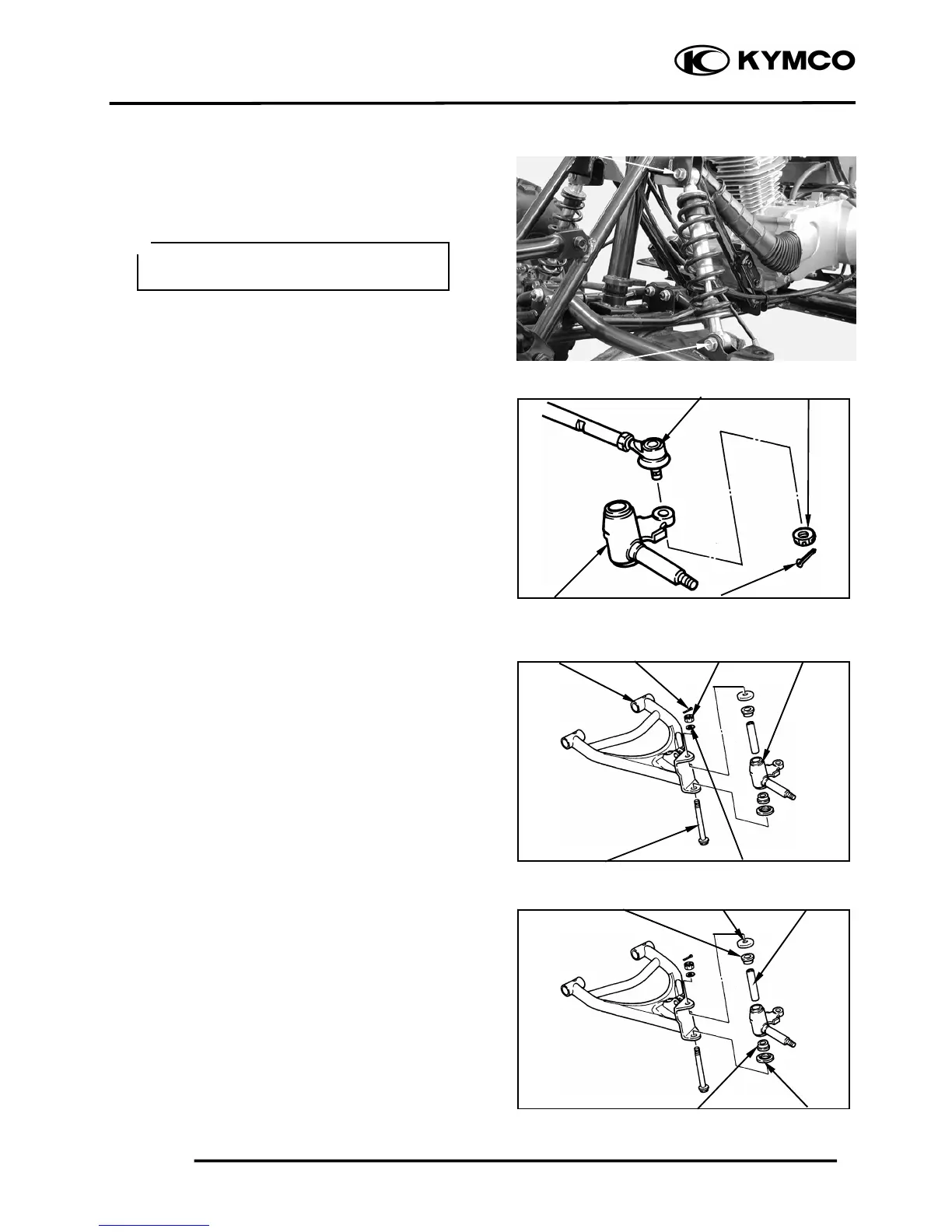

FRONT SUSPENSION
REMOVAL
Elevate the front wheels by placing a
suitable stand under the frame.
Remove the front wheel, wheel hub, brake
shoe plate.
Remove the upper and lower bolt, then
remove the shock absorber.
Remove the cotter pin and nut, then remove
tie-rod from steering knuckle.
Remove cotter pin, nut, washer and bolt,
then remove the steering knuckle, covers,
collar and bush from the front arm.
Upper Bol
t
Lower Bol
t
Support the machine securely so there is
no dan
g
er of it fallin
g
over.

Tie-rod
Nu
t
Cotter pinSteering Knuckle
Front ar
m
Cotter pin
Nu
t
Steering Knuckle
Bol
t
Washe
r
Cove
r
Bush
Colla
r
Bush
Cove
r
