12. FRONT WHEEL/FRONT BRAKE/FRONT
SUSPENSION/STEERING SYSTEM
12-8
MX’er SYSTEM

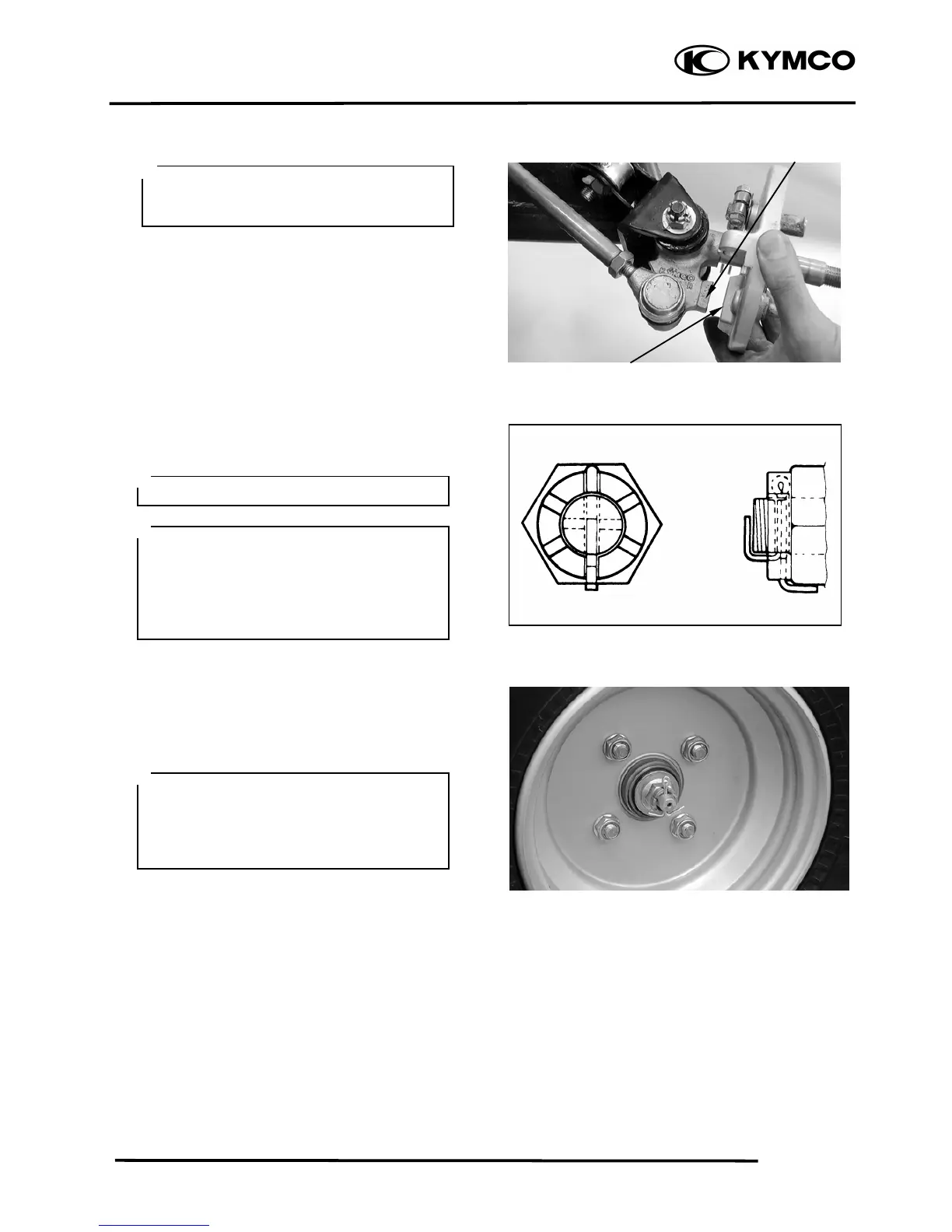

Install the brake shoe plate.
Apply the grease onto the bearings and oil
seal lips of the wheel hub.
Install wheel hub, plate washer and tight the
nut (wheel hub).
Torque: 6.08.0kgf-m
Install cotter pins.
Install the front wheel and tighten the nuts
(wheel).
Torque: 6.08.0kgf-m
Adjust the front brake cable free play.
Refer to the “FRONT BRAKE
ADJUSTMENT” section in the
CHAPTER 3.
Brake cable free play: 1020mm at lever
pivot.
Make sure that the boss on the knuckle
correctly engages with the locating slot
on the brake shoe plate.

Boss
Locatin
g
Slo
t
Do not loosen the axle nut after torque
tightening. If the axle nut groove id not
aligned with the cotter pin hole, align
groove with the hole by tightening ut on
the axle nut.

Always use a new cotter pin.

Tapered wheel nuts are used for front
wheels.
Install the nuts with its tapered side
towards the wheel.

