12. FRONT WHEEL/FRONT BRAKE/FRONT
SUSPENSION/STEERING SYSTEM
12-7
MX’er SYSTEM

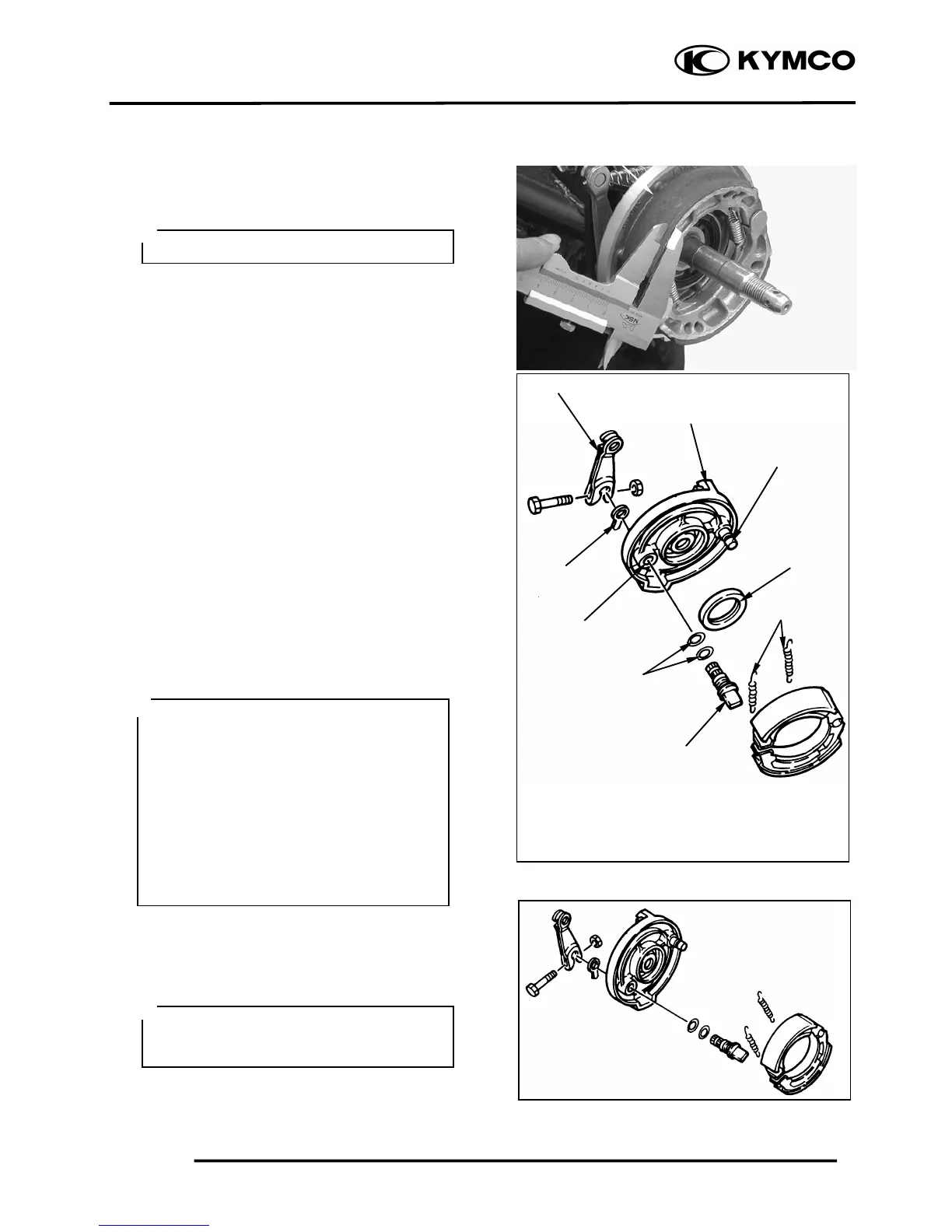

FRONT BRAKE
FRONT BRAKE LINING INSPECTION
Measure the front brake lining thickness.
Service limit: 2.0mm replace if below
REMOVAL
Inspect the shoe springs, O-rings, camshaft
lever and wear indicator.
Replace if damage.
Inspect the brake shoe plate.
Replace if cracks or damage.
Inspect the brake shoe pivot pin.
Replace if wear or damage.
Inspect the camshaft hole and camshaft.
Replace if scratches or excessive wear.
INSTALLATION
Reverse the “REMOVAL” procedures.
Tighten the bolt for camshaft lever.
Torque: 1.82.5kgf-m
Brake Linin
g
Keep oil or grease off the brake linings.

Camshaft leve
r
Wear Indicato
r
Brake Plate
Apply the grease onto the o-ring, oil seal
lips, pivot pin of brake shoe and
camshaft.

• Install the camshaft to the brake shoe
plate with the slot of the camshaft
placing at bass line of the wear
indicator scale.
• Align the projection with the slot of the
camshaft when installing the wear
indicator to the camshaft.
• Align the cut-out of the camshaft lever
with the slot of the camshaft when
installing the camshaft lever to the
camshaft.

O-rin
g
s
S
p
rin
g
s
Oil Seal
Brake shoe
p
ivot
p
in
Camshaf
t
Camshaft Hole
