7. CYLINDER HEAD/VALVES
7-7
MX’er SYSTEM

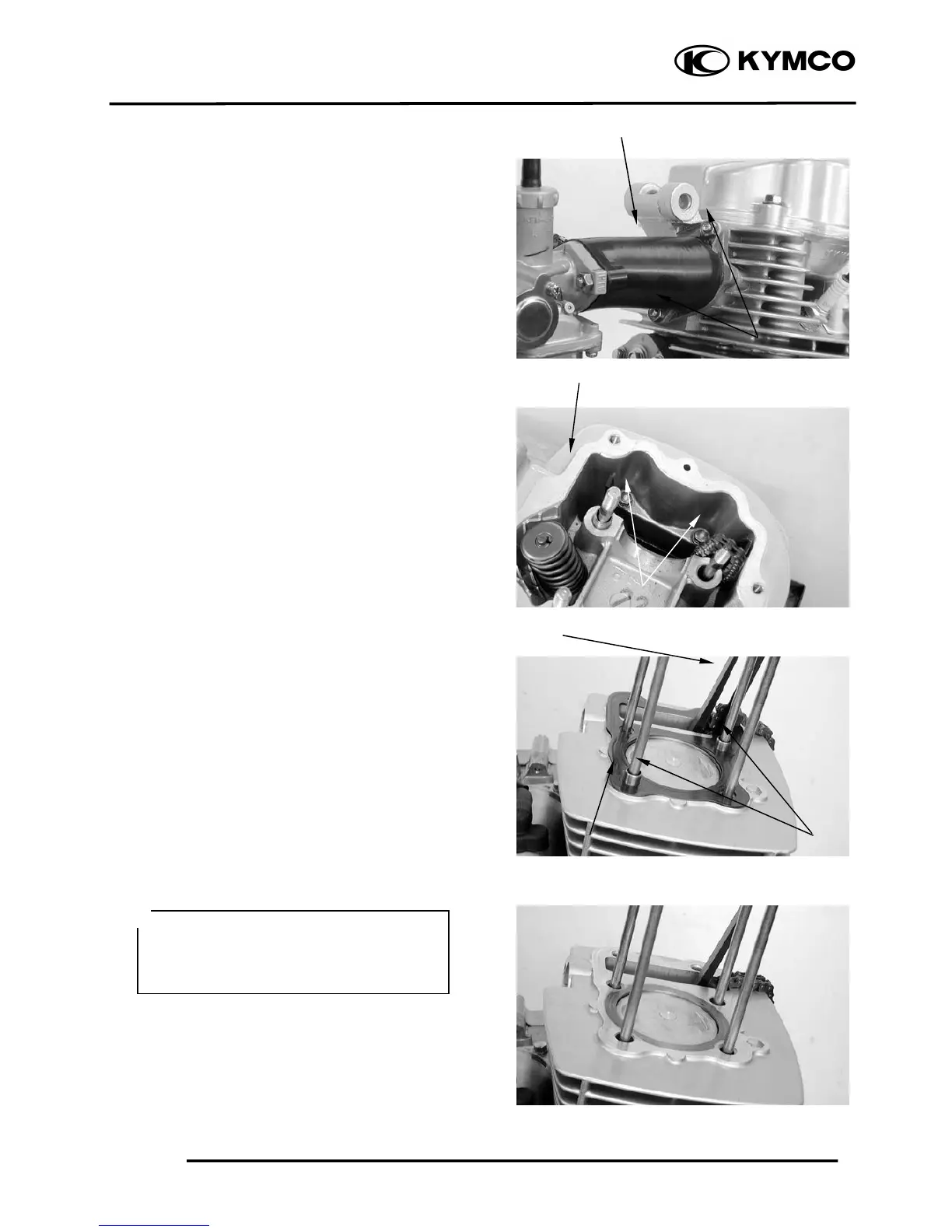

CYLINDER HEAD REMOVE
Remove the camshaft.
Remove the carburetor.
Remove the exhaust muffler.
Remove the carburetor intake manifold.
Remove the two cylinder head bolts.
Remove the cylinder head.
Remove the dowel pins and cylinder head
gasket.
Remove the cam chain guide.
Remove all gasket material from the
cylinder mating surface.
Intake Manifold
Cylinder Head
Dowel Pins
Cam Chain Guide
C
Bolts
Bolts
• Avoid damaging the cylinder mating
surface.
• Be careful not to drop any gasket
material into the engine.
To Next Page
