10. FINAL REDUCTION/
TRANSMISSION SYSTEM
10-6
MX’er SYSTEM

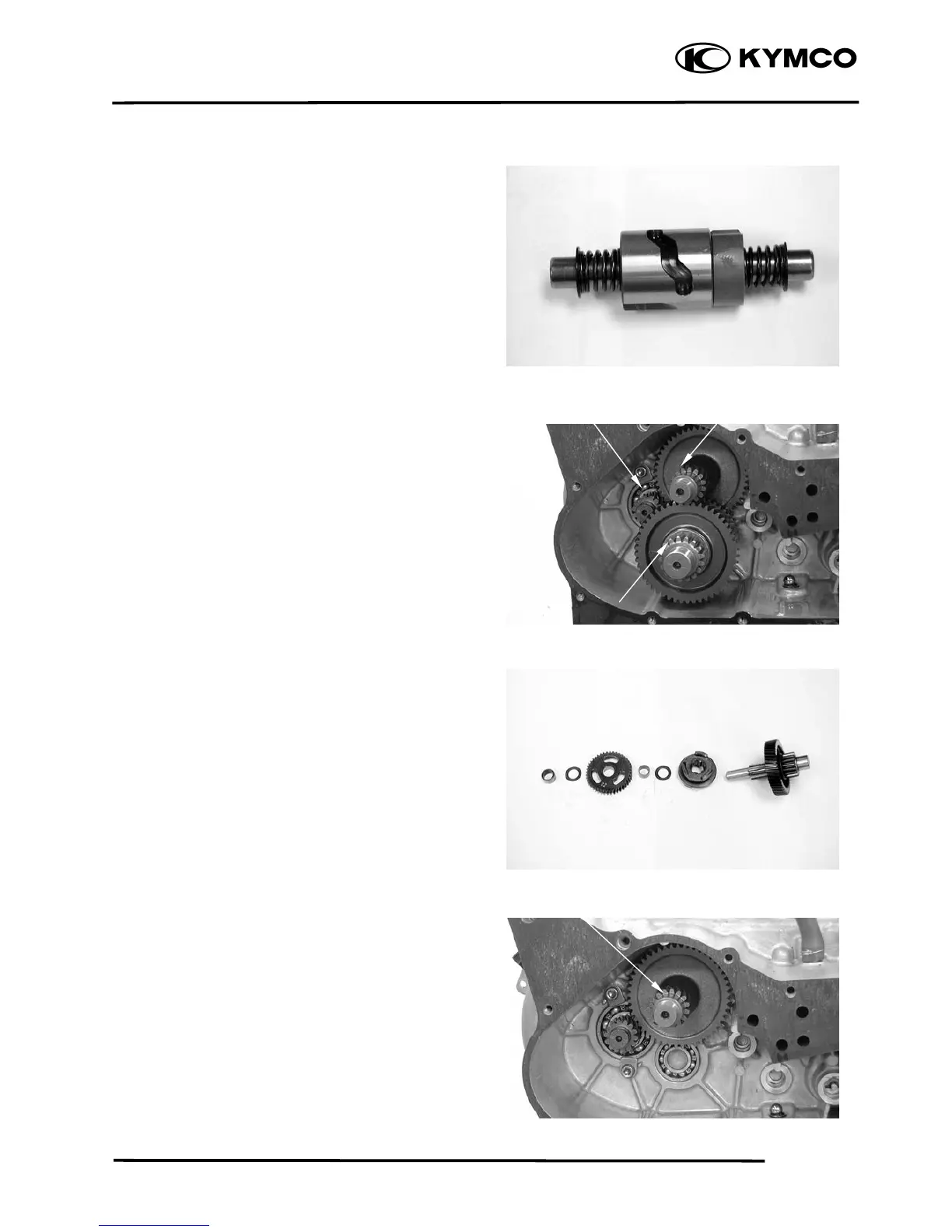

Check the shift cam groove and shift cam
gear.
Replace if wear or damage.
TRANSMISSION GEARS/
CRANKSHAFT REMOVAL
Remove the final gear and main shaft.
GEAR/SHAFT COLLAR INSPECTION
Check each gear and gear teeth for wear,
damage, or poor lubrication.
Remove the counter shaft.
Countershaf
t
Driver Shaf
t
Countershaf
t
Main Shaf
t
