10. FINAL REDUCTION/
TRANSMISSION SYSTEM
10-4
MX’er SYSTEM

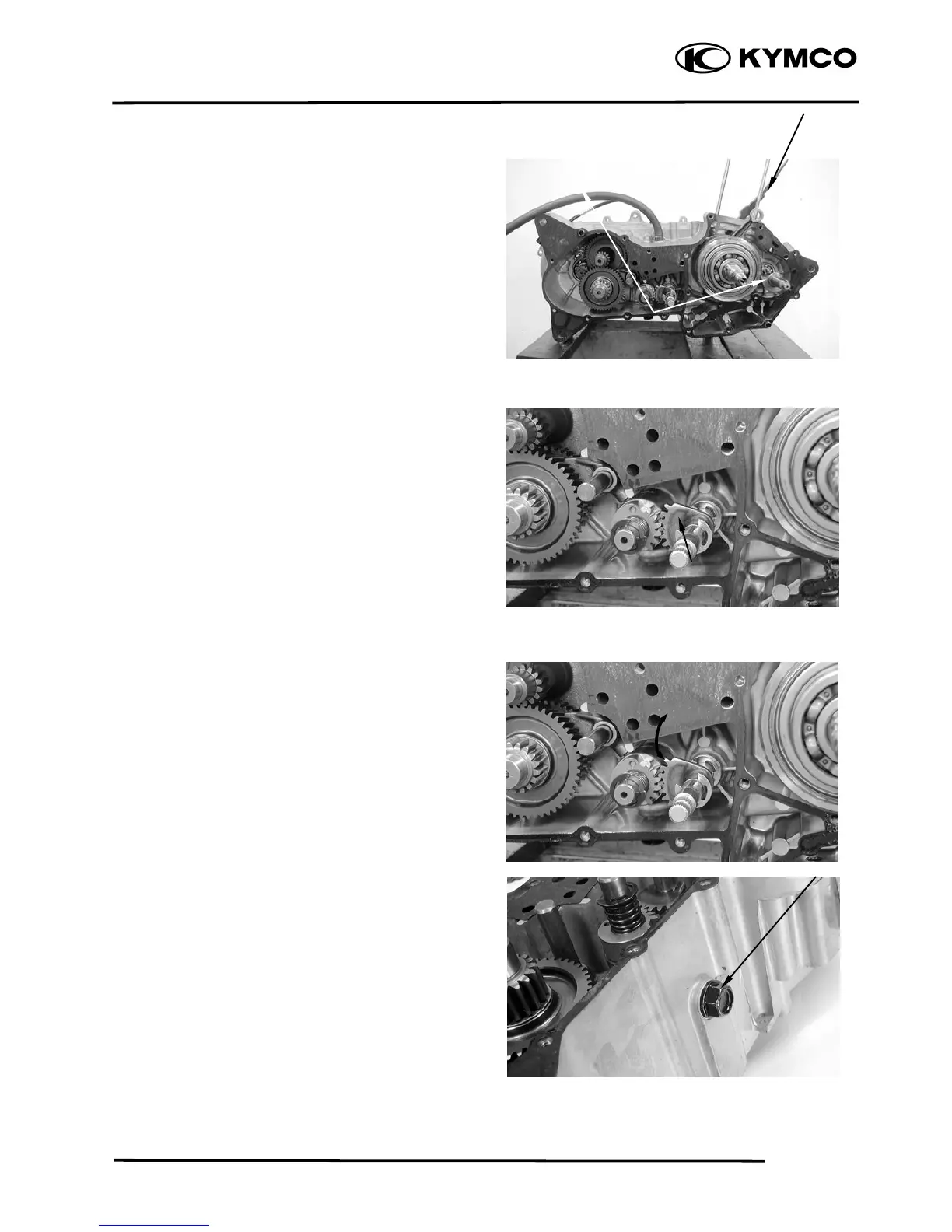

Remove gasket and two dowel pins.
FINAL REDUCTION/
TRANSMISSION INSPECTION
Inspect the change gear shaft for wear,
damage or seizure.
Check the transmission operation.
Repair if unsmooth operation.
Remove the plug.
Dowel Pins
Change Gear Shaf
t
Plug
Gaske
t
