9. DRIVE AND DRIVEN PULLEYS
9-8
MX’er SYSTEM

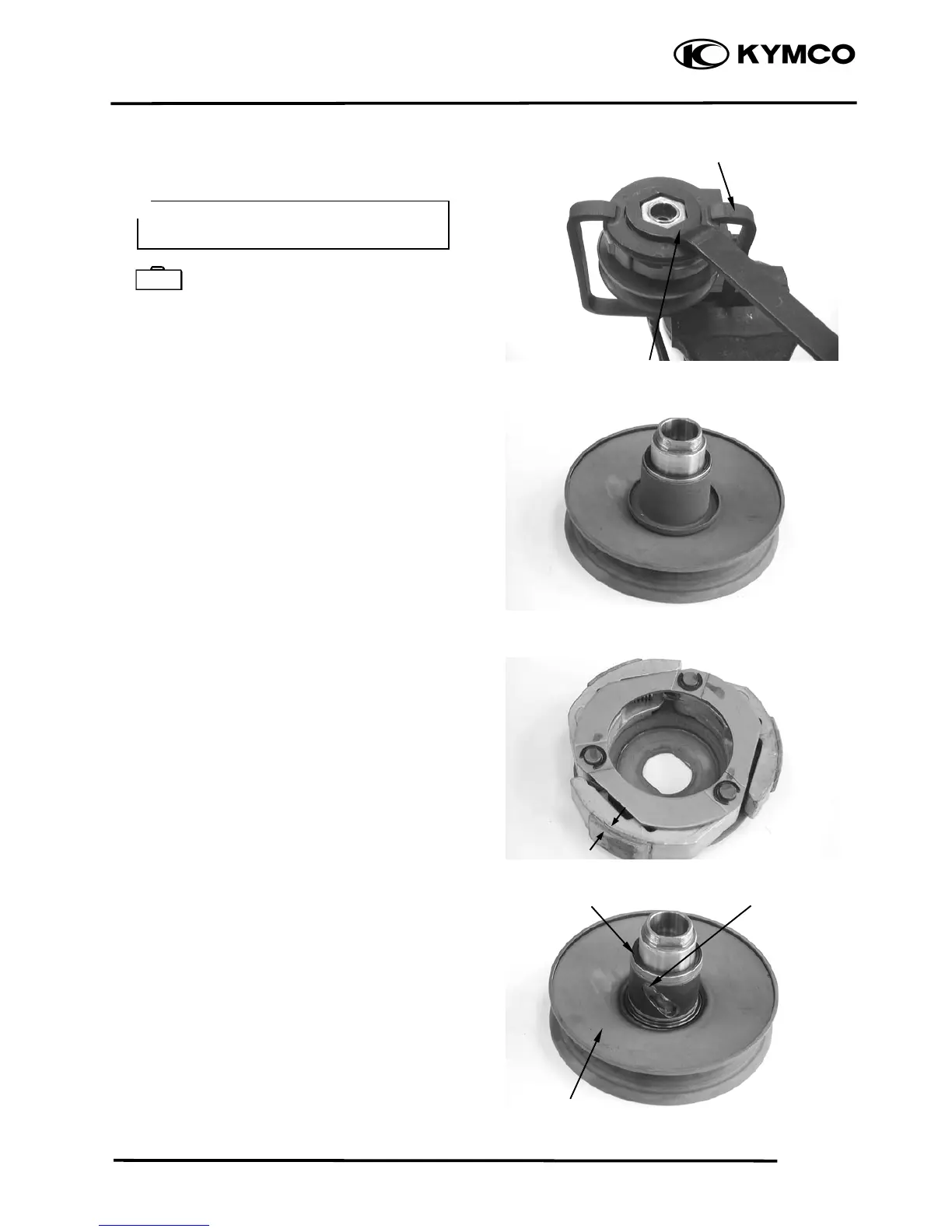

Hold the clutch/driven pulley assembly with
the clutch spring compressor.
Clutch Spring Compressor E027
Set the clutch spring compressor in a vise and
remove the clutch drive plate nut.
Loosen the clutch spring compressor and
disassemble the clutch/driven pulley assembly.
Remove the seal collar.
Check the driven face for wear or damage.
Measure the clutch lining thickness.
Service Limit: 2.0mm replace if below
Pull out the guide roller pins and guide rollers.
Remove the movable driven face from the
driven face.
Clutch Spring Compresso
r
Be sure to use a clutch spring
comp

ressor to avoid spring damage.
Special
Lock Nut Wrench
Guide Roller Pin
O-ring
Movable Driven Face
