9. DRIVE AND DRIVEN PULLEYS
9-10
MX’er SYSTEM

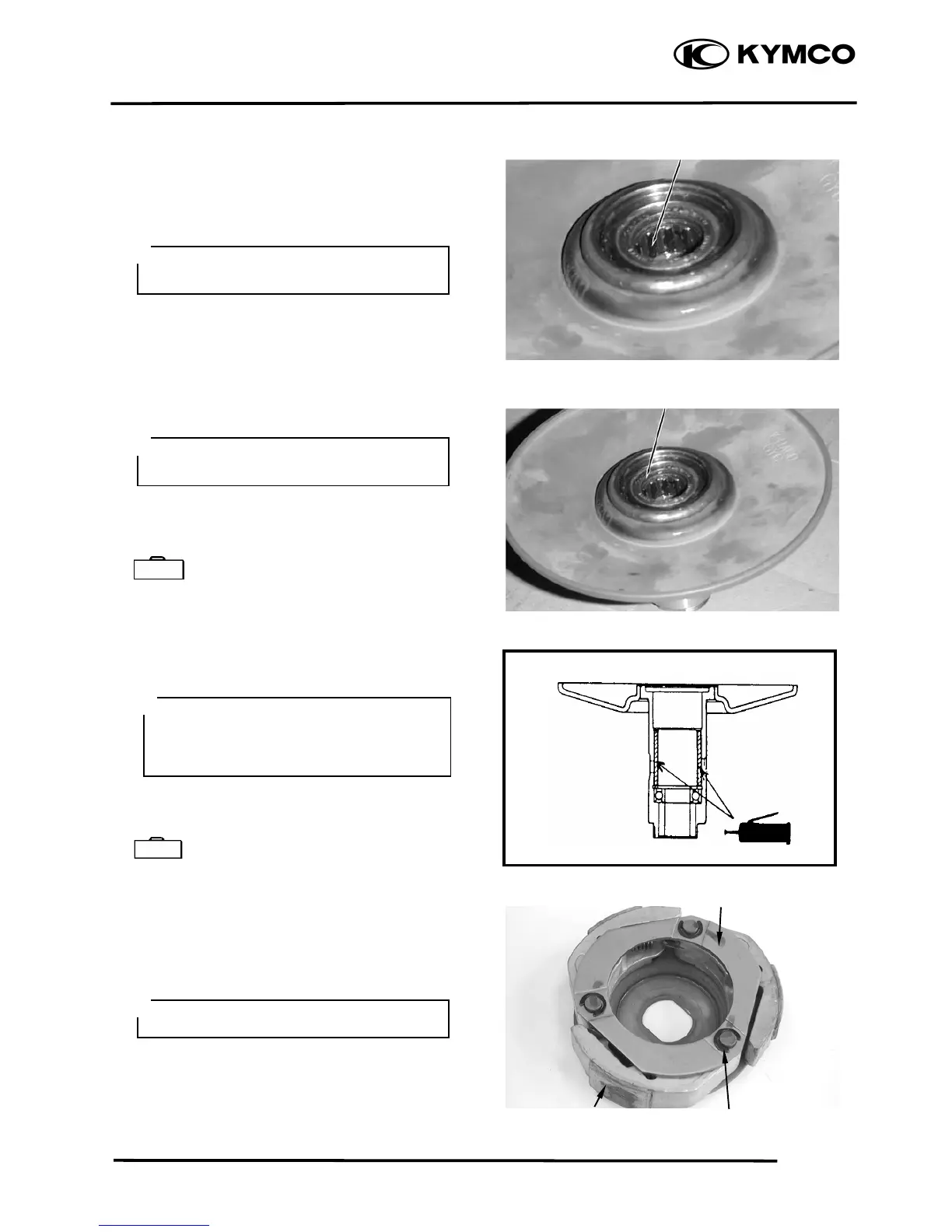

DRIVEN PULLEY FACE BEARING
REPLACEMENT
Drive the inner needle bearing out of the
driven pulley face.
Remove the snap ring and drive the outer
bearing out of the driven face.
Apply grease to the outer bearing.
Drive a new outer bearing into the driven face
with the sealed end facing up.
Bearing Puller E008
Seat the snap ring in its groove.
Apply grease to the driven face bore areas.
Press a new needle bearing into the driven
face.
Oil Seal And Bearing Install E014
CLUTCH DISASSEMBLY
Remove the circlips and retainer plate to
disassemble the clutch.
Inner Bearing
Discard the removed bearing and replace
with a new one.

Outer Bearing
Discard the removed bearing and replace
with a new one.

Special
Pack all bearing cavities with 99.5g
grease.
Specified grease: Heat resistance 230°C

Special
Retainer Plate
Circlip
Clutch Lining
Keep grease off the clutch linings.

