12. FRONT WHEEL/FRONT BRAKE/FRONT
SUSPENSION/STEERING SYSTEM
12-14
MX’er SYSTEM

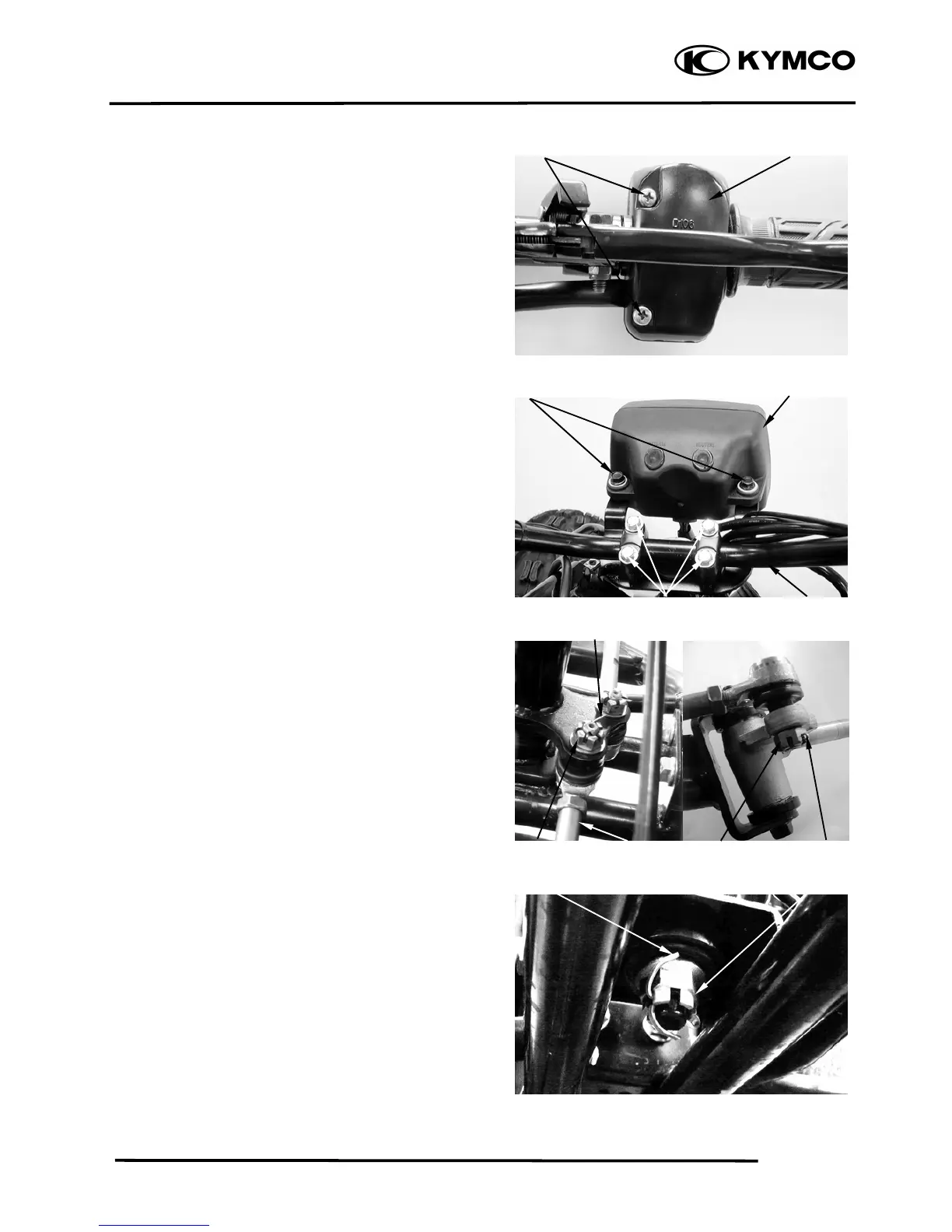

Remove the two screws and remove the
handlebar switch.
Remove the two bolts and remove headlight
unit.
Remove the four handlebar holder bolts and
remove the handlebar.
Remove the cotter pins and nuts attaching
the tie-rods, then remove tie-rods.
Remove the cotter pin and nut attaching the
steering column, then remove steering
column and collar.
Screws
Handlebar Switch
Headlight Uni
t
Bolts
Bolts
Handleba
r
Cotter Pin
Cotter Pin
Nu
t
Nu
t
Tie-rod
Cotter Pin
Nu
t
