2. FRAME COVERS/EXHAUST MUFFLER
2-4
MX’er SYSTEM

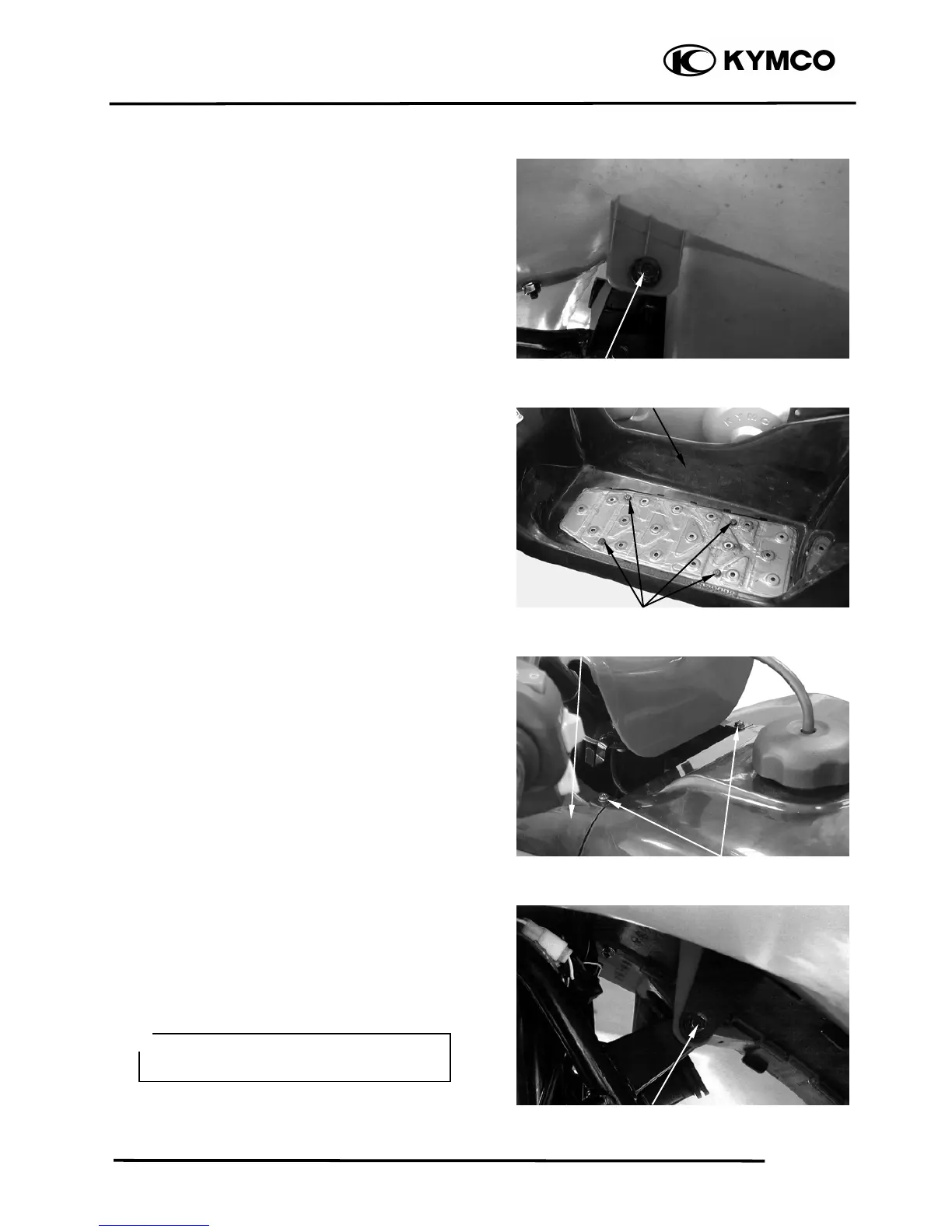

Remove right rear fender under bolt.
Remove the right rear fender.
FLOOR BOARD COVER REMOVAL
Remove the four bolts on the floorboard
cover.
Remove the floorboard cover.
FRONT COVERS REMOVAL
Remove the two screws on the front cover.
Remove the left and right front fender under
bolt.
Remove the front cover.
FRONT FENDER REMOVAL
Remove the left and right front fender under
bolt.
Remove screws attaching the left and right
front fender.
Remove the left and right front fender.
Bol
t
Floor Board Cove
r
Bolts
Bol
t
Screws
Front Cove
r
During removal, be careful not to
damage the joint claws.

