KYMCO MX'ER 50 - Page 110

9. KICK STARTER/DRIVE PULLEY/
CLUTCH/DRIVEN PULLEY
9-6
MX’er 50

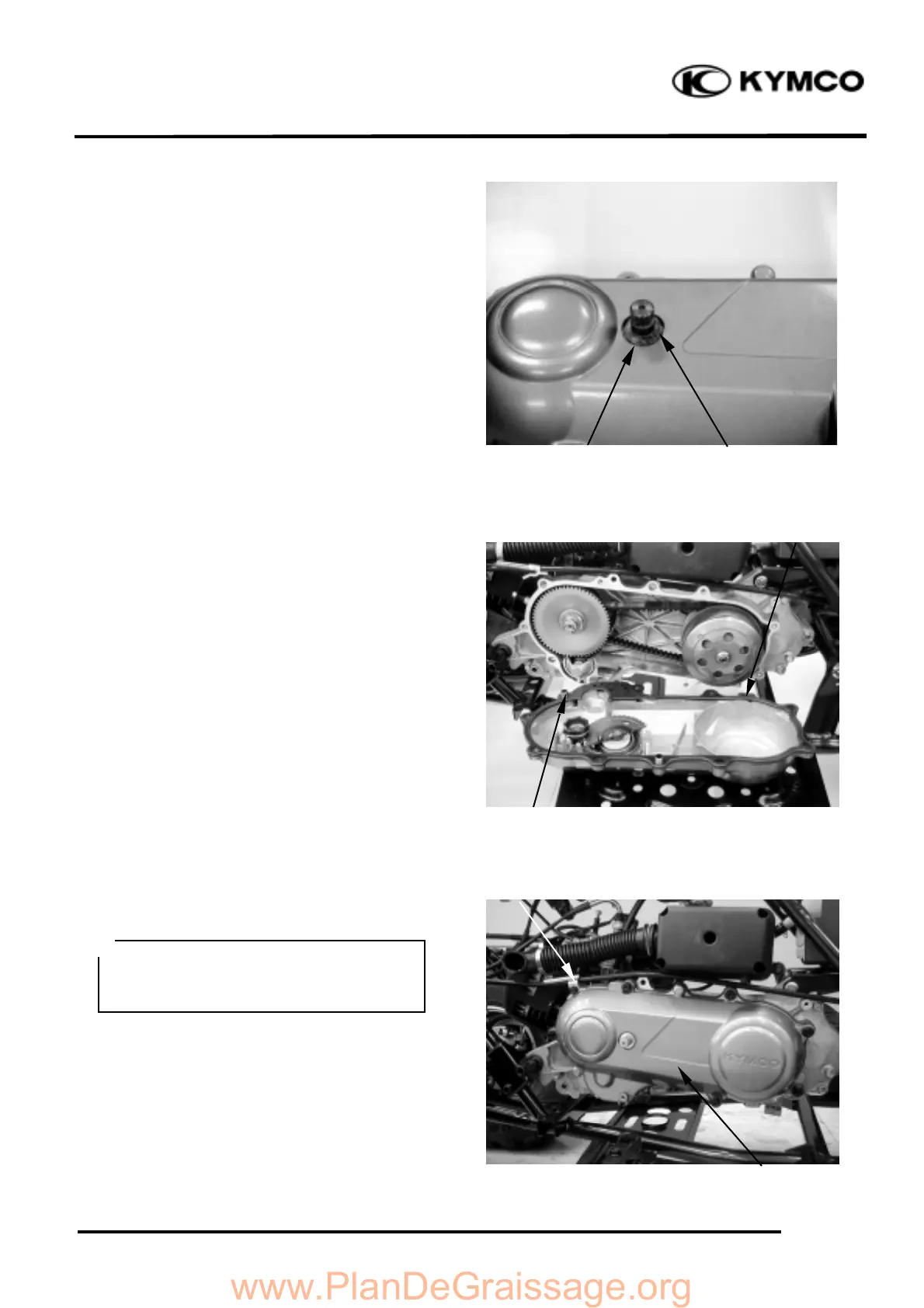

First install the washer and then the circlip
onto the kick starter spindle.
Install the kick lever.
LEFT CRANKCASE COVER
INSTALLATION
First install the dowel pins and then the seal
gasket.
Install the left crankcase cover and tighten the
ten bolts diagonally.
Driven Pulley
Left Crankcase Cover
Rear Brake Cable Clamp
Seal Gasket
Dowel Pins
Washer
Circlip
For drum brake, note the location of the
brake cable clamp and install the rear
brake cable in place with the clamp.
