9. KICK STARTER/DRIVE PULLEY/
CLUTCH/DRIVEN PULLEY
9-9
MX’er 50

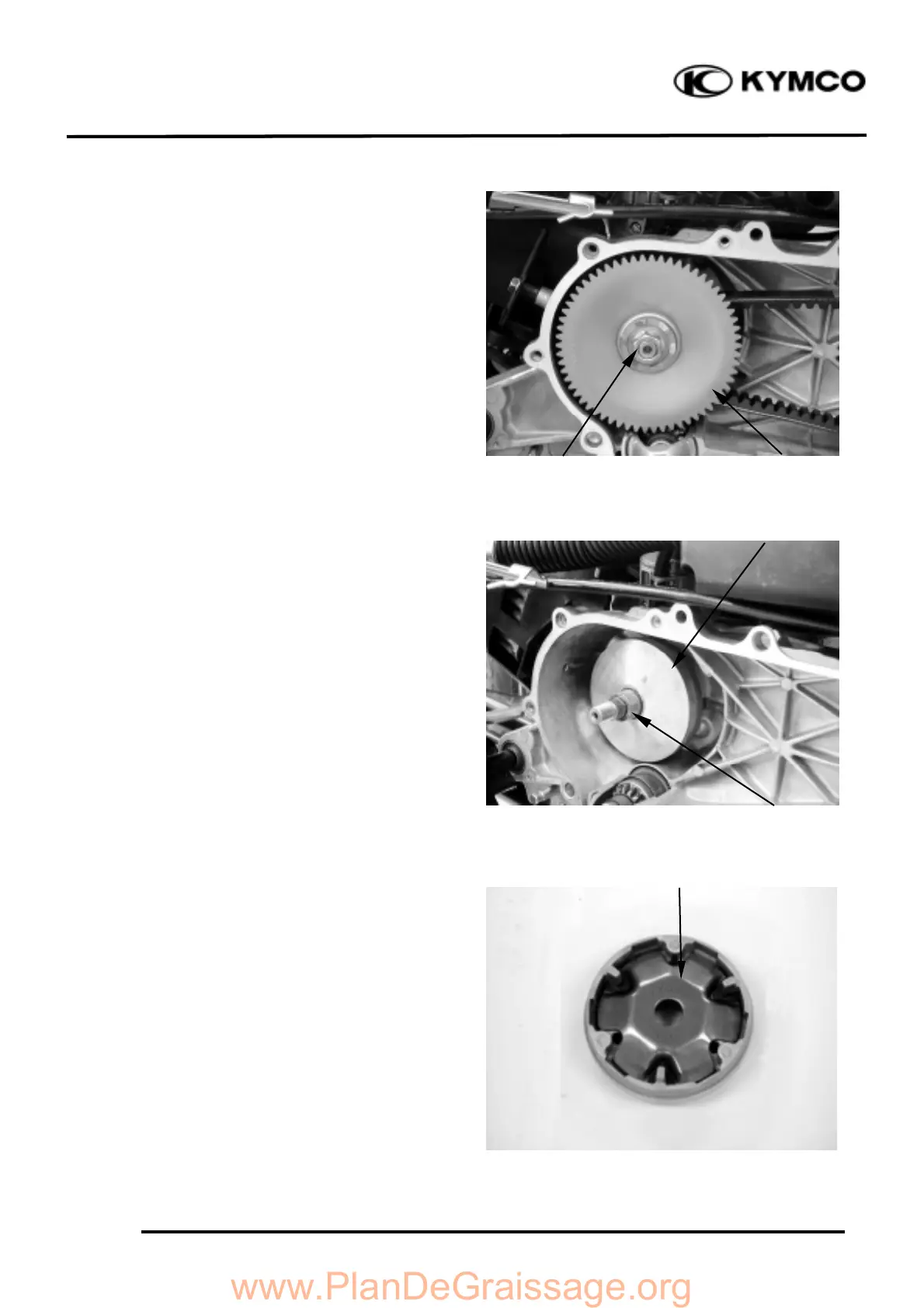

DRIVE PULLEY
REMOVAL
Hold the drive pulley with the holder and
remove the drive face nut.
Remove the drive pulley face.
MOVABLE DRIVE FACE
DISASSEMBLY
Remove the movable drive face and drive
pulley collar from the crankshaft.
Remove the ramp plate.
Movable Drive Face
Ramp Plate
Drive Pulley Collar
Drive Face Nut
Drive Pulley Face
