9. KICK STARTER/DRIVE PULLEY/
CLUTCH/DRIVEN PULLEY
9-10
MX’er 50

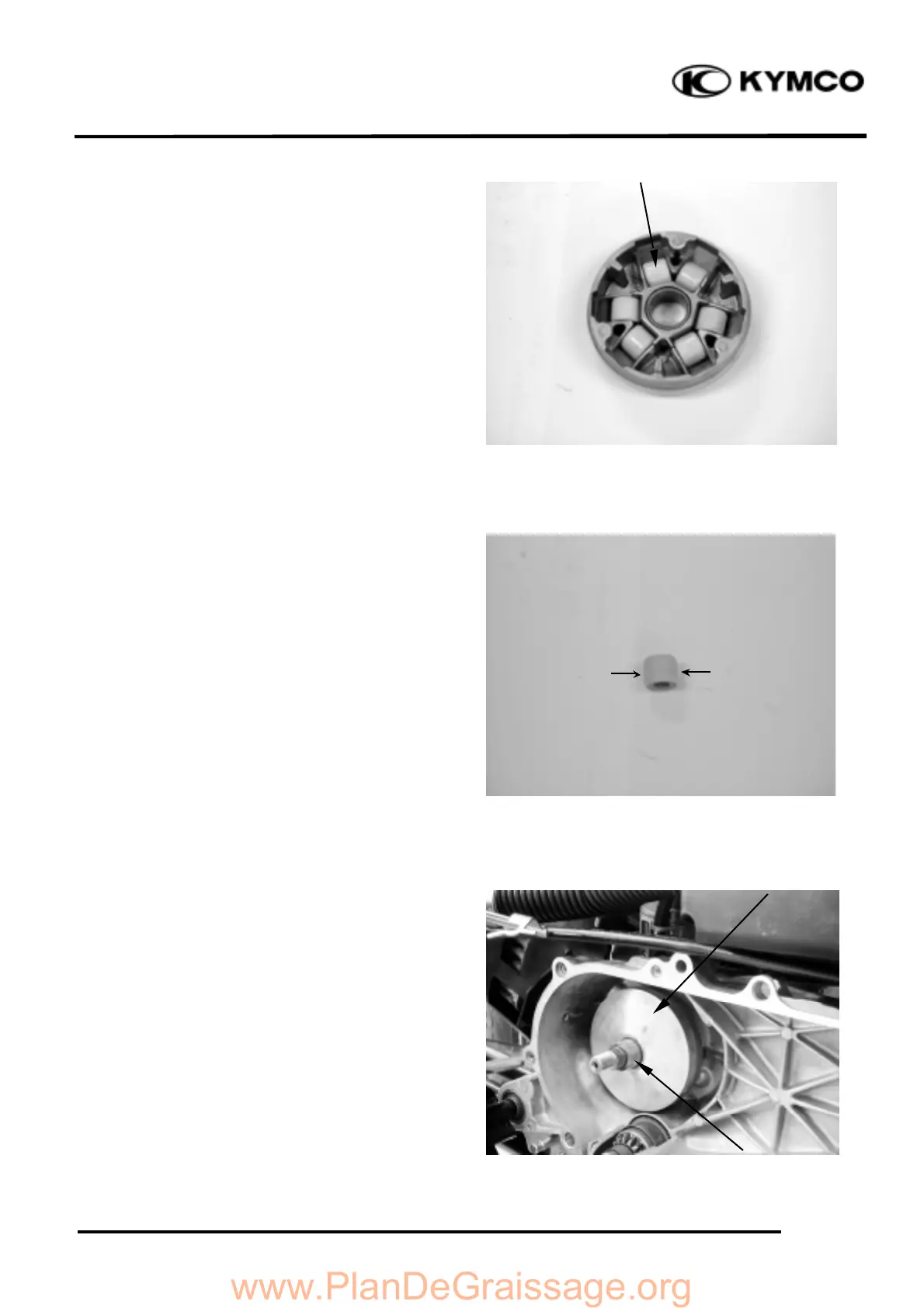

Remove the weight rollers.
Remove the weight rollers.
Check each weight roller for wear or damage.
Measure each roller O.D.
Service Limit: 12.4mm replace if below
DRIVE PULLEY INSTALLATION
Install the drive pulley collar and movable
drive face onto the crankshaft.
Weight Roller
Movable Drive Face
Drive Pulley Collar
