9. KICK STARTER/DRIVE PULLEY/
CLUTCH/DRIVEN PULLEY
9-11
MX’er 50

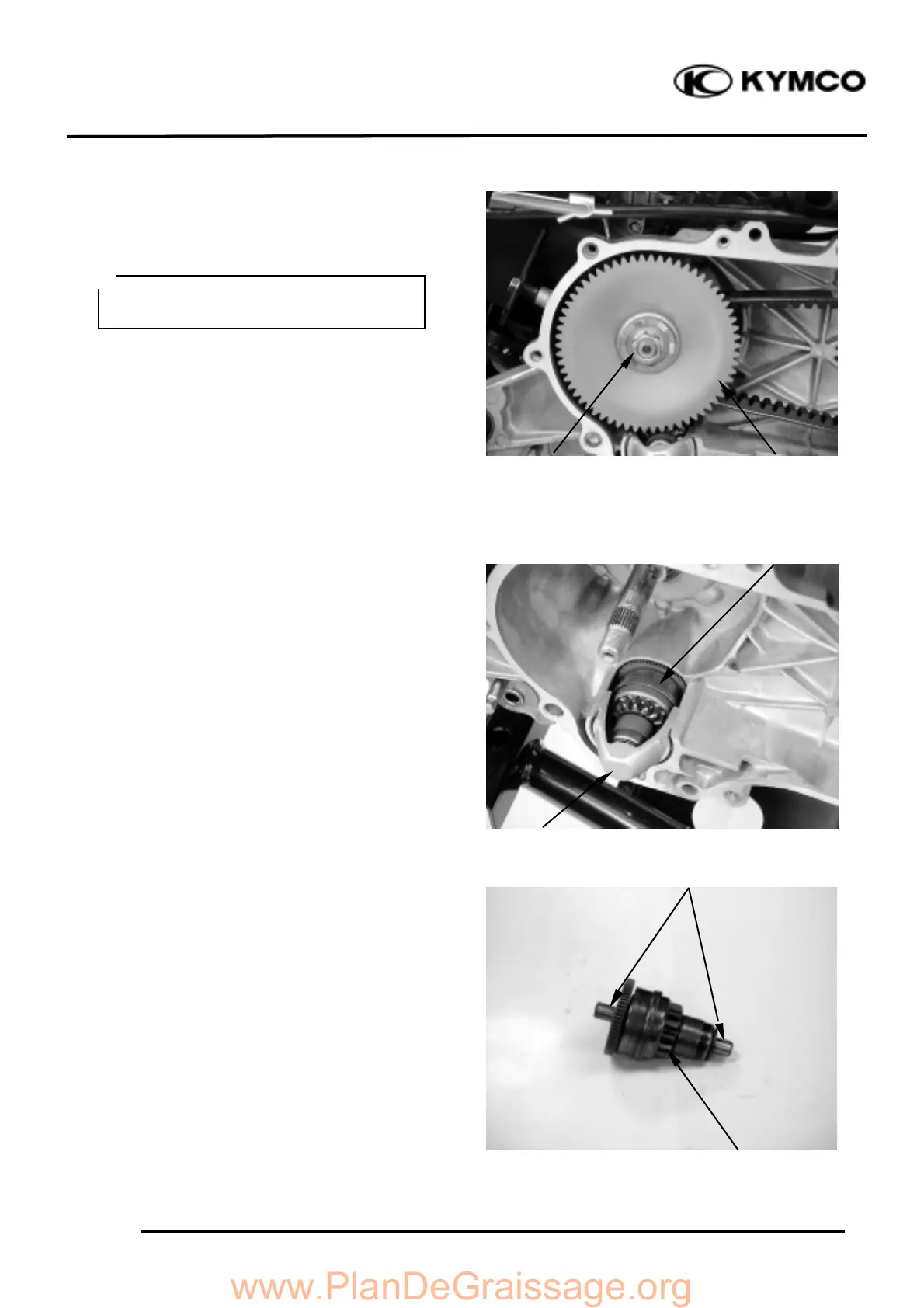

Install the drive belt on the crankshaft.
Install the drive face, then tighten the drive
face nut.
Torque: 3.5_ 4.0kg-m
STARTER PINION
REMOVAL
Remove the left crankcase cover. (
!
9-3)
Remove the drive pulley. (
!
9-9)
Remove the starter pinion cover.
Remove the starter pinion.
INSPECTION
Inspect the starter pinion seat for wear.
Inspect the starter pinion for smooth
operation.
Inspect the starter pinion shaft forcing parts
for wear and damage.
INSTALLATION
Apply a small amount of grease to the starter
pinion teeth.
Install the starter pinion in the reverse order
of removal.
Drive Face Nut
Drive Pulley Face
Starter Pinion
Shaft Forcing Parts
Starter Pinion
Starter Pinion Cover
Keep grease or oil off the drive belt and
drive pulley faces.
