9. KICK STARTER/DRIVE PULLEY/
CLUTCH/DRIVEN PULLEY
9-12
MX’er 50
CLUTCH/DRIVEN PULLEY

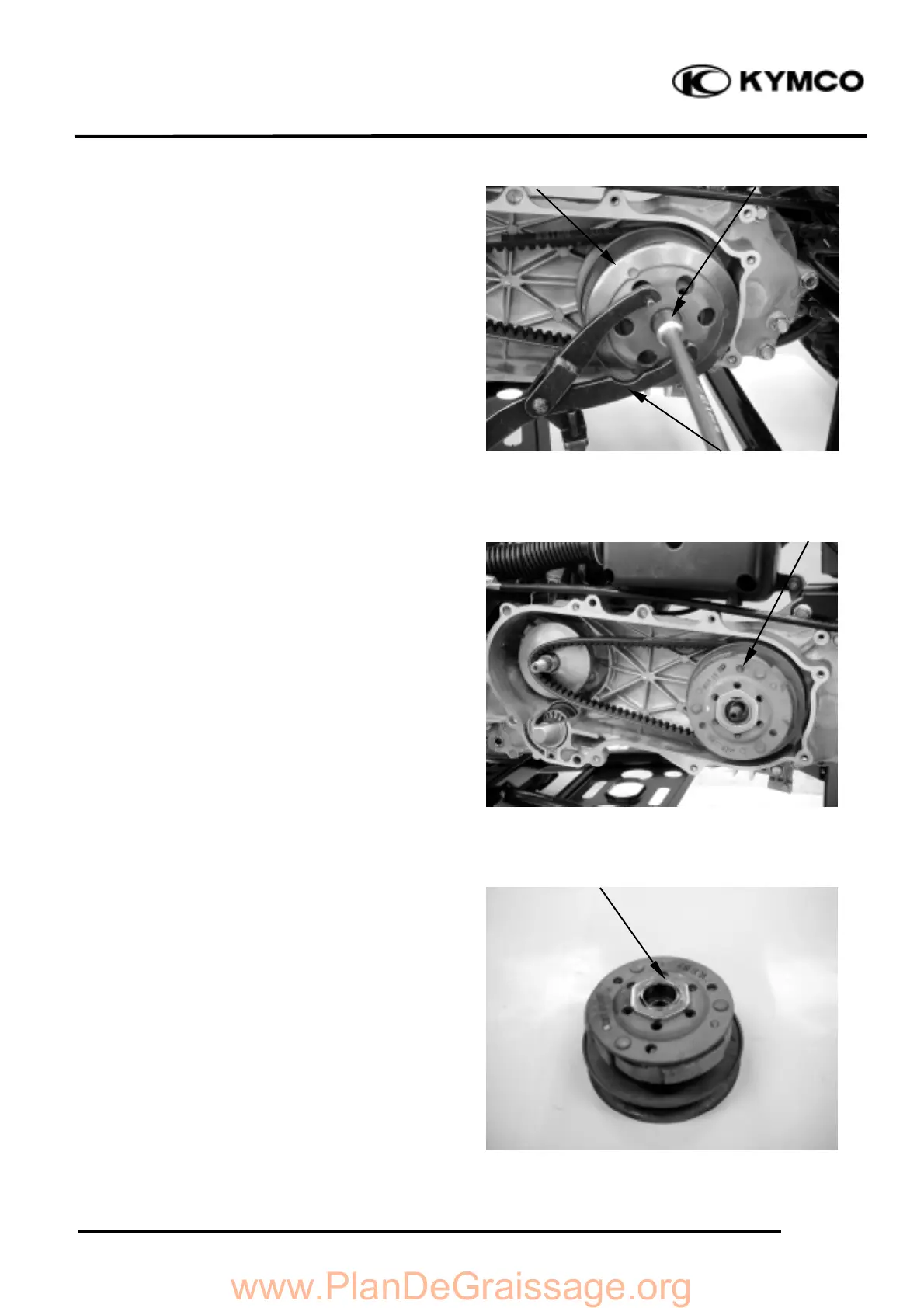

CLUTCH/DRIVEN PULLEY REMOVAL
Remove the drive pulley. (
!
9-9)
Hold the clutch outer with the universal
holder and remove the clutch outer nut
Remove the clutch outer.
Remove the clutch/driven pulley.
Remove the drive belt from the clutch/driven
pulley.
CLUTCH/DRIVEN PULLEY DIS-
ASSEMBLY
Compress the clutch/driven pulley spring
with the clutch spring compressor and
remove the 39mm drive plate nut.
Remove the driven face spring.
Clutch/Driven Pulley
Universal Holder
Clutch Outer
14mm Clutch Outer Nut
Nut 39mm
