9. KICK STARTER/DRIVE PULLEY/
CLUTCH/DRIVEN PULLEY
9-13
MX’er 50

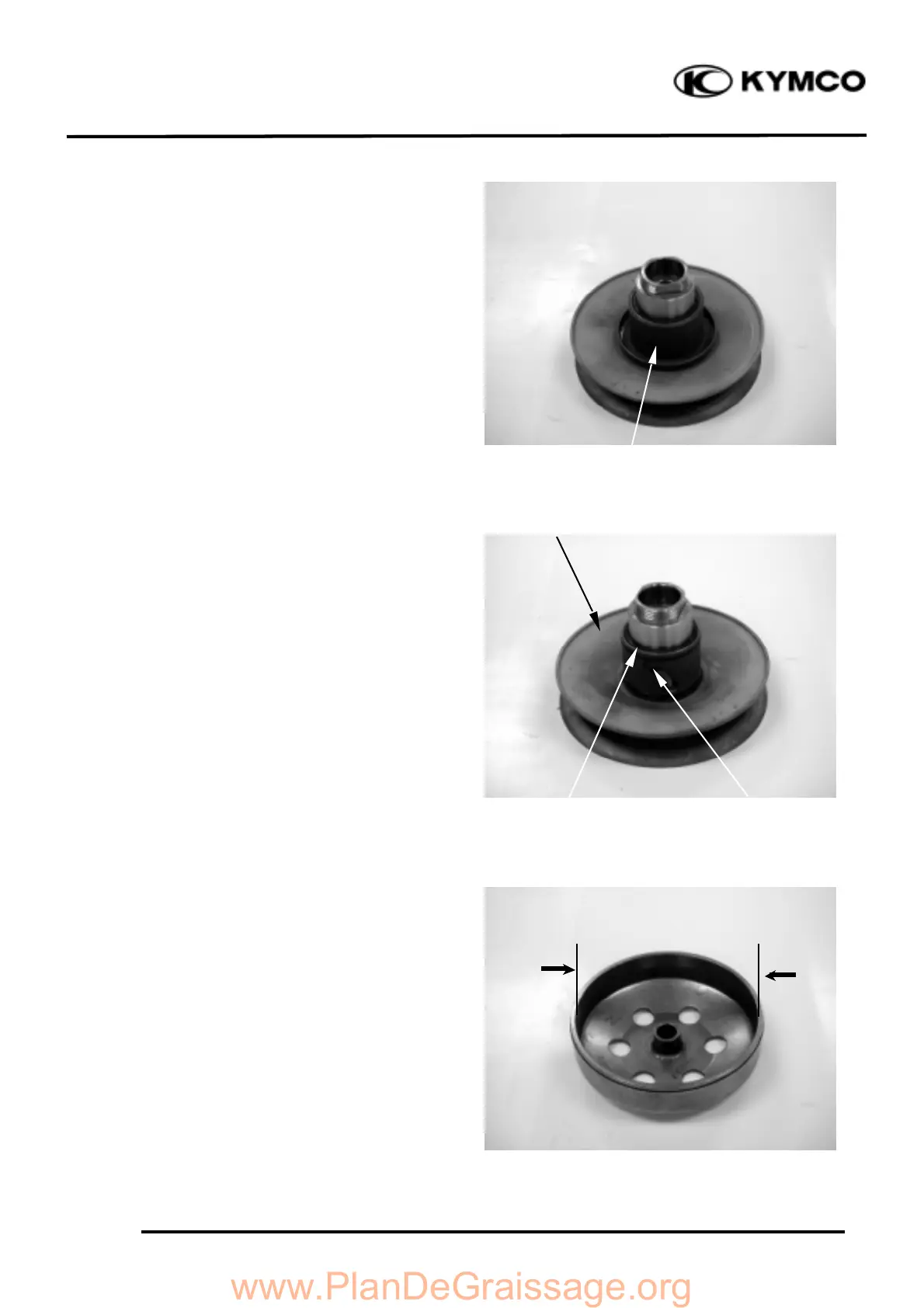

Remove the seal collar.
Pull out the guide roller pins from the driven
pulley and then remove the O-rings and oil
seal from the driven pulley.
CLUTCH/DRIVEN PULLEY
INSPECTION
Inspect the clutch outer for wear or damage.
Measure the clutch outer I.D.
Service Limit: 107.5mm replace if over
Seal Collar
O-rings
Guide Roller Pin
Driven Pulley
