13. REAR WHEEL/SWING ARM/
HYDRAULIC BRAKE

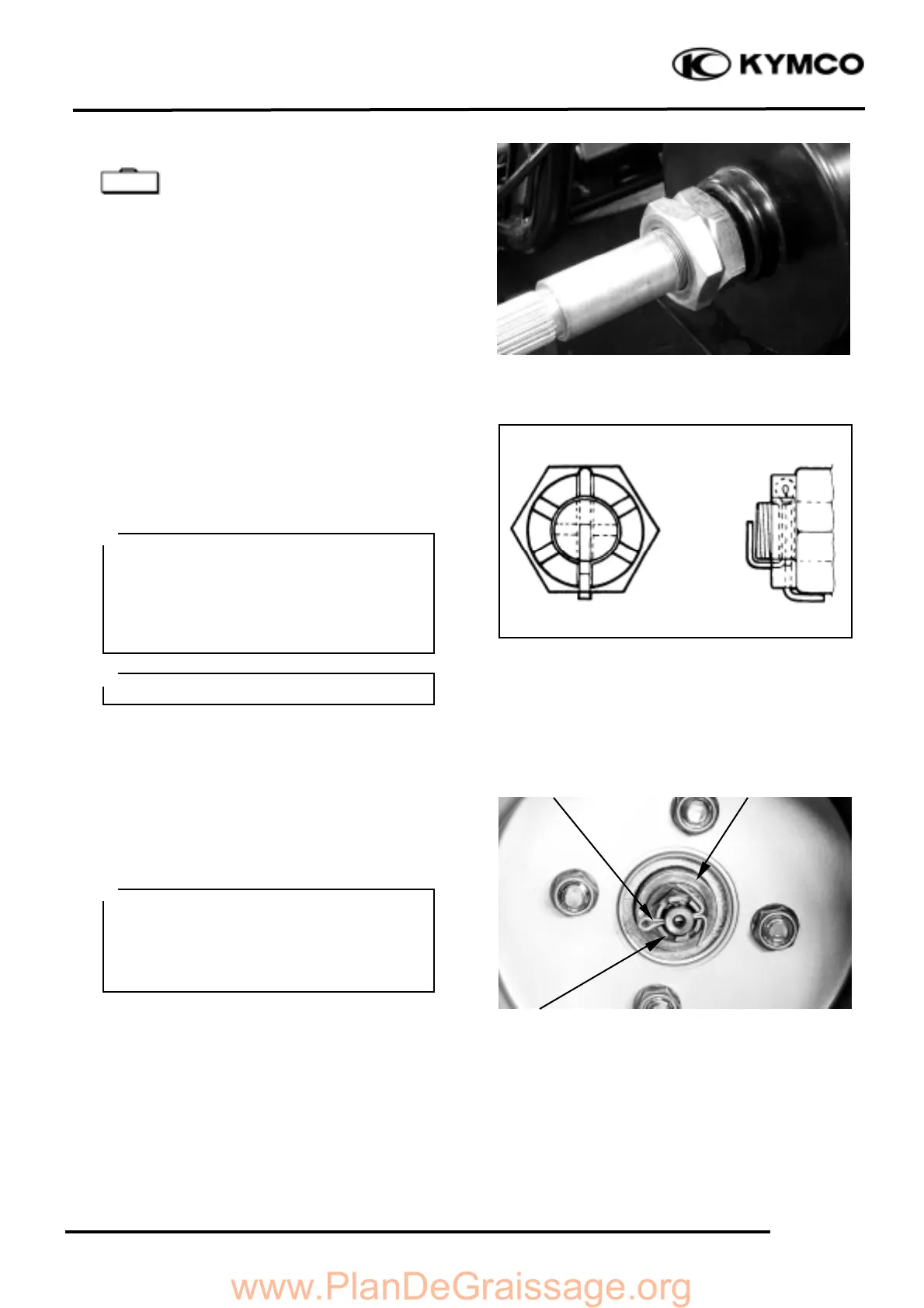

Tighten the two nuts with the nut wrench.
Nut wrench F010
Torque: 11.0_ 13.0kgf-m
Install wheel hub, plate washer and nut
(wheel hub).
Torque: 6.0_ 8.0kgf-m
Install cotter pins.
Install the rear wheel and tighten the nuts
(wheel).
Torque: 6.0_ 8.0kgf-m
Do not loosen the axle nut after torque
tightening. If the axle nut groove id not
aligned with the cotter pin hole, align
groove with the hole by tightening ut on
the axle nut.
Always use a new cotter pin.
Tapered wheel nuts are used for rear
wheels.
Install the nuts with its tapered side
towards the wheel.
