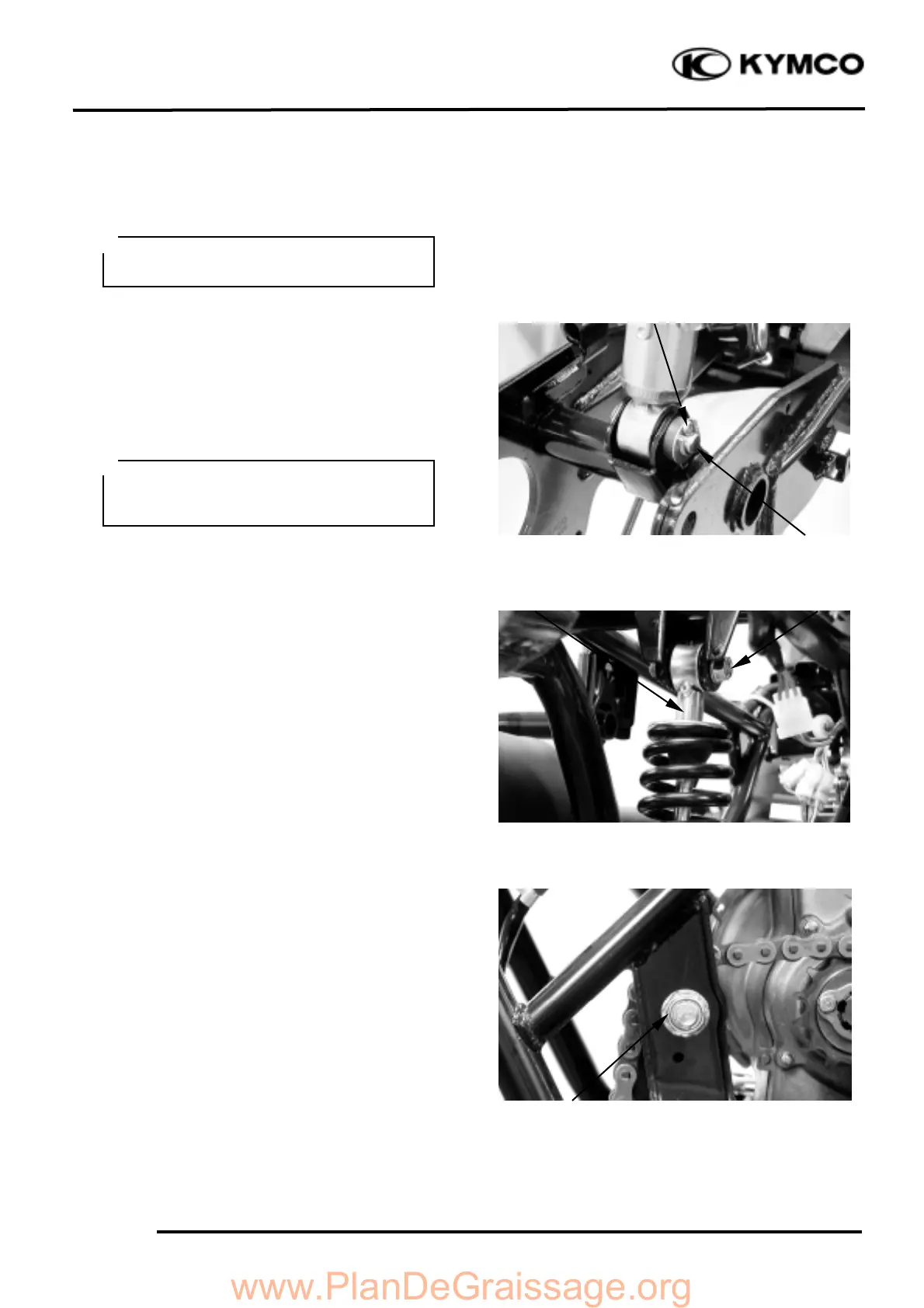

SWING ARM
Place the machine on a level place.
Elevate the rear wheels by placing a suitable
stand under the rear of frame.
Remove the rear wheels, rear hub with rear
axle.
Refer to the “REAR
WHEEL°– REMOVAL” section
Remove the cotter pin, washer and shaft.
Remove the bolt, then remove the shock
absorber.
Check the tightening torque of the pivot
shaft (swingarm) securing nut.
Torque: 6.0_ 8.0kgf-m
When removing the lower shaft, hold the
swing arm so that it does not drop
downwards when the shaft id removed.
To Next Page
