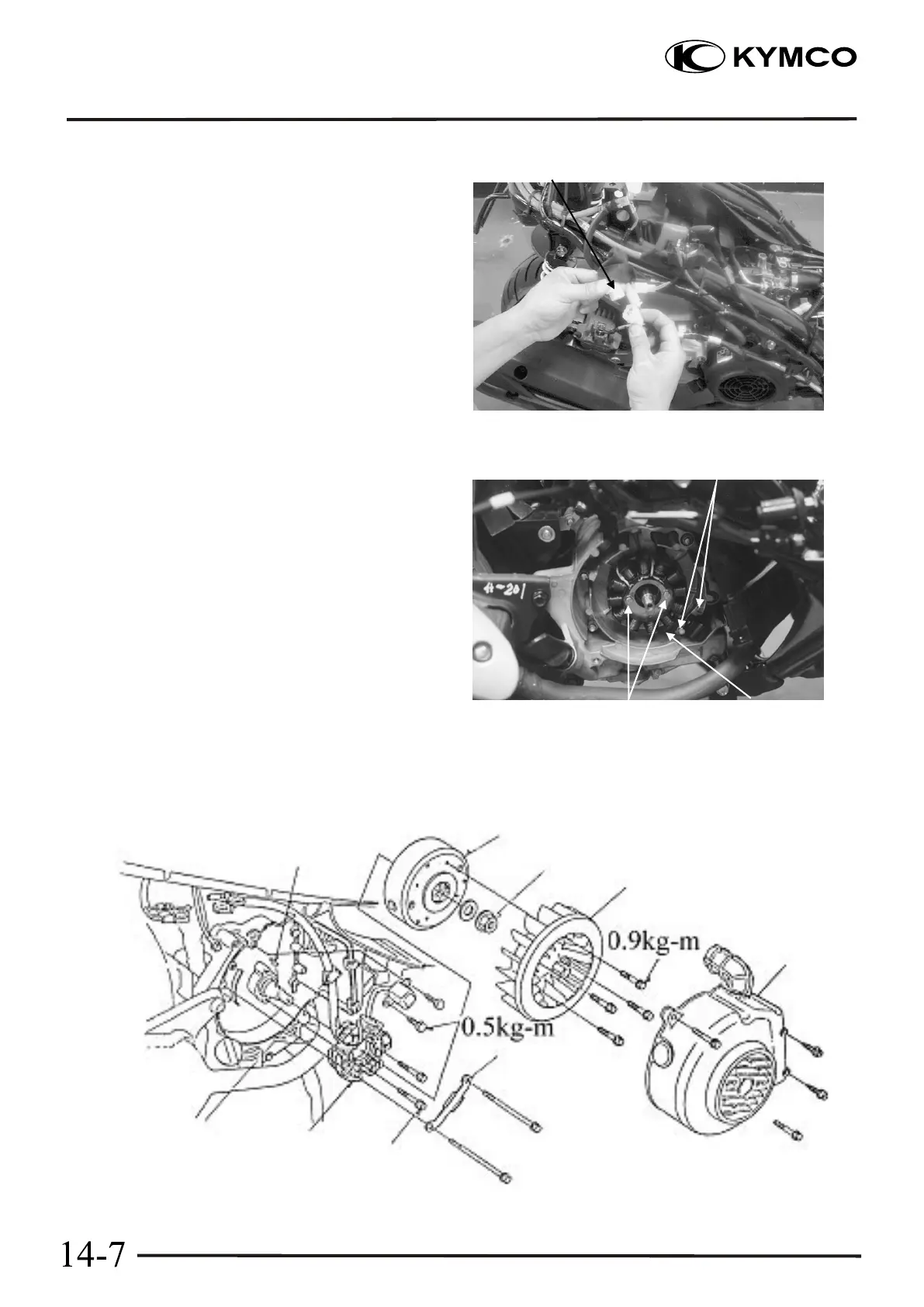

14. BATTERY/CHARGING SYSTEM/

A.C. GENERATOR

A.C. Generator Wire Connector

Remove the A.C. generator wire connector.

Bolts

Wire Set Plate

Remove the A.C. generator wire set plate.

Remove the CPS bolts.

Remove the A.C. generator wire rubber sleeve and

CPS.

INSTALLATION

Flywheel

Cooling fan

Fan cover

A.C. Generator Wire

Rubber Sleeve

A.C. Generator

Wire Set Plate

Stator
