Before Using the Fax Machine > Part Names (Machine Exterior)
Part Names (Machine Exterior)

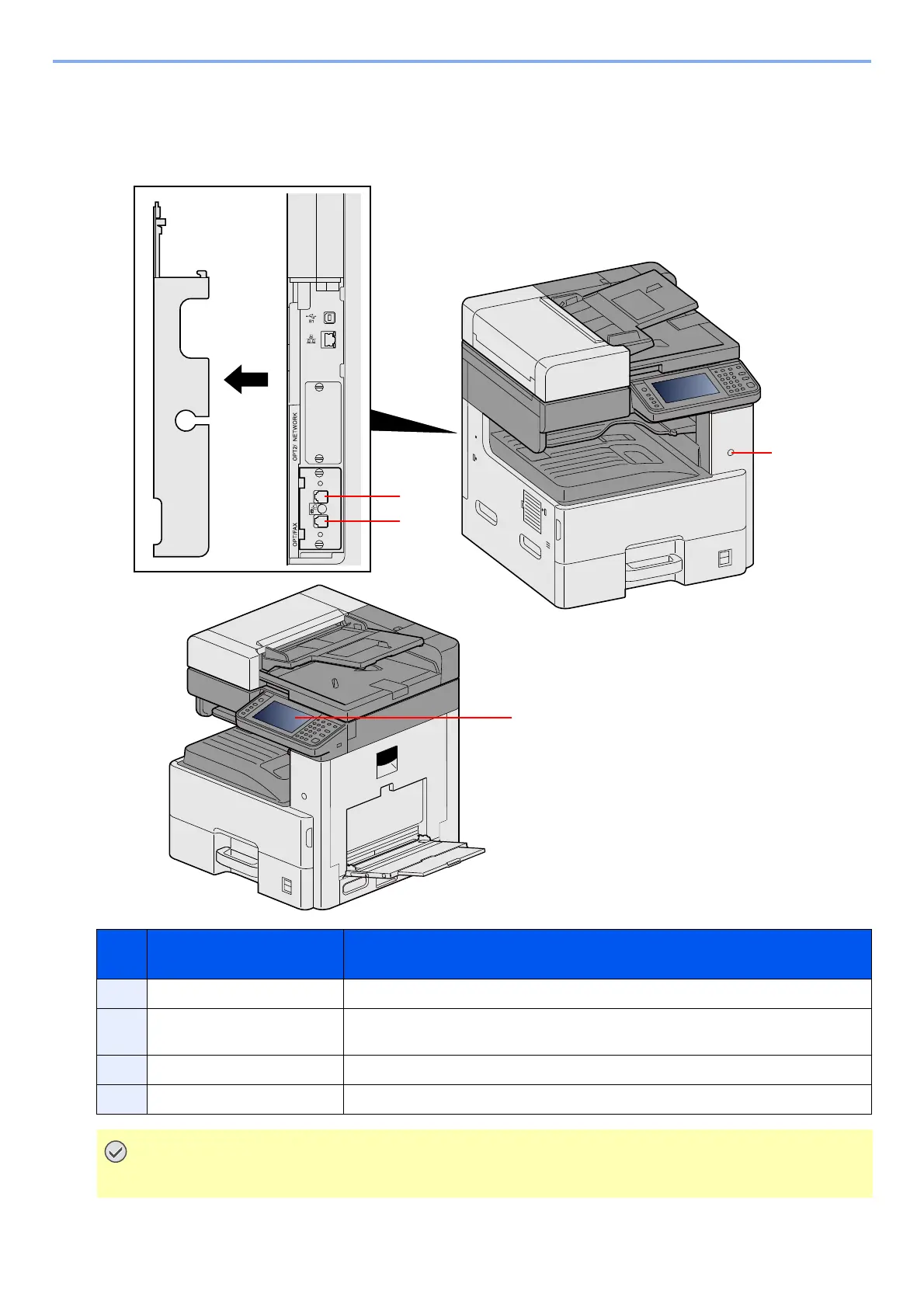

This chapter explains the names of parts when the machine is used as a fax machine. The appearance of some models
may differ from the illustrations.
Job
No.
Name Description
1 Operation panel Perform the fax operation with this panel.
2 Power switch Set this switch to the ON side when performing the fax or copier operation. The
touch panel lights to enable operation.
3 LINE connector Connect the modular cord for the telephone line to this connector.
4 TEL connector When using a commercially available telephone set, connect to this TEL connector.
You cannot automatically receive a fax when the power switch is turned off.
