Kyocera FS-6970DN Service Manual

2J5
2-1-9
2-1-6 Cleaning section
After the transferring process, the drum needs to be physically cleaned of toner which is residual after the development
process. The cleaning blade is constantly pressed against the drum and scrapes the residual toner off to the cleaning
roller. The waste toner is collected at the output end of the drum screw and sent to the waste toner box.
After the drum is physically cleaned, it then must be cleaned to the electrically neutral state. This is necessary to erase any
residual positive charge, ready to accept the uniform charge for the next print process. The residual charge is canceled by
exposing the drum to the light emitted from the eraser lamp (PWB). This lowers the electrical conductivity of the drum sur-
face making the residual charge on the drum surface escape to the ground.

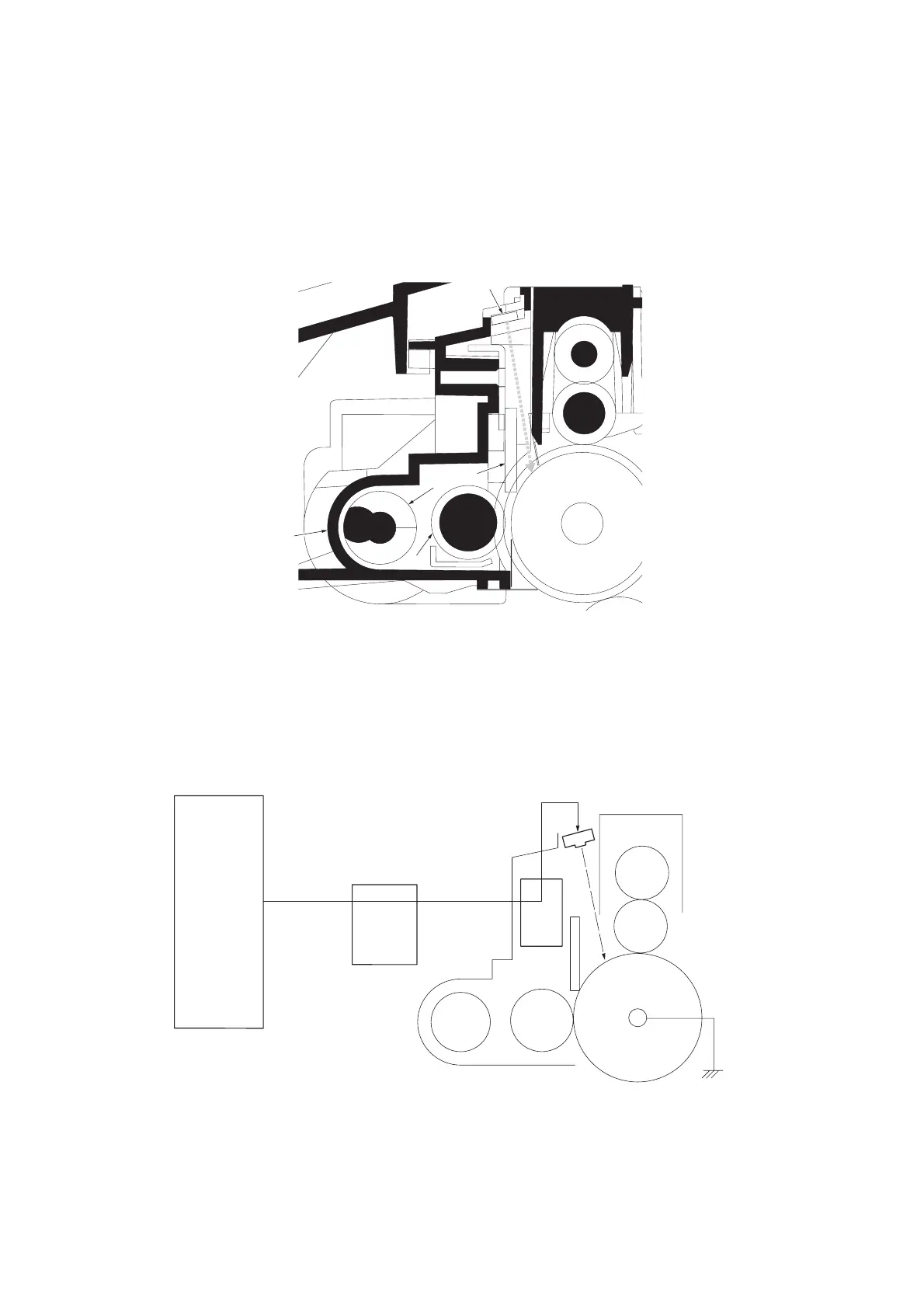

Figure 2-1-15Cleaning section
Figure 2-1-16Cleaning section block diagram





(1) Cleaning blade
(2) Cleaning roller
(3) Drum screw
(4) Drum frame
(5) Eraser lamp (PWB)
Engine PWB
Drum
PWB
Eraser lamp (PWB)
Drum
Drum unit
Connect-L
PWB
Ground
YC504-8
ERASER

Kyocera FS-6970DN Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	35 ppm
Duplex print speed (black, normal quality, A4/US Letter)	17 ppm
Processor model	440
Processor family	PowerPC
Maximum internal memory	1152 MB
Sound power level (standby)	29 dB
Sound pressure level (printing)	51 dB
Power requirements	AC 220-240 V, 50/60 Hz
Total input capacity	350 sheets
Total output capacity	250 sheets
Maximum input capacity	1350 sheets
Multi-Purpose tray input capacity	100 sheets
Custom media width	70 - 297 mm
Maximum print size	297 x 432 mm
Custom media length	148 - 450 mm
Paper tray media types	Plain paper
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Ledger (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A3, A4, A5
ISO B-series sizes (B0...B9)	B4, B5
Maximum ISO A-series paper size	A3
Multi-Purpose Tray media weight	60 - 220 g/m²
Security algorithms	802.1x RADIUS, SSL/TLS
Mobile printing technologies	Not supported
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	9.6 W
Power consumption (printing)	516 W
Power consumption (PowerSave)	6.3 W
Certification	GS, TÜV, CE
Product color	Black, Grey
Printing colors	Black
Maximum duty cycle	150000 pages per month
Recommended duty cycle	20000 pages per month
Number of print cartridges	1
Page description languages	Epson LQ, IBM ProPrinter, PCL 5c, PCL 6, PostScript 3
Standard interfaces	Ethernet, Parallel, USB 2.0
Mac operating systems supported	Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Dimensions (WxDxH)	469 x 395 x 285 mm
