Kyocera FS-6970DN - Duplex Conveying Section

2J5
2-1-14
2-1-9 Duplex conveying section
(1) Duplex conveying section

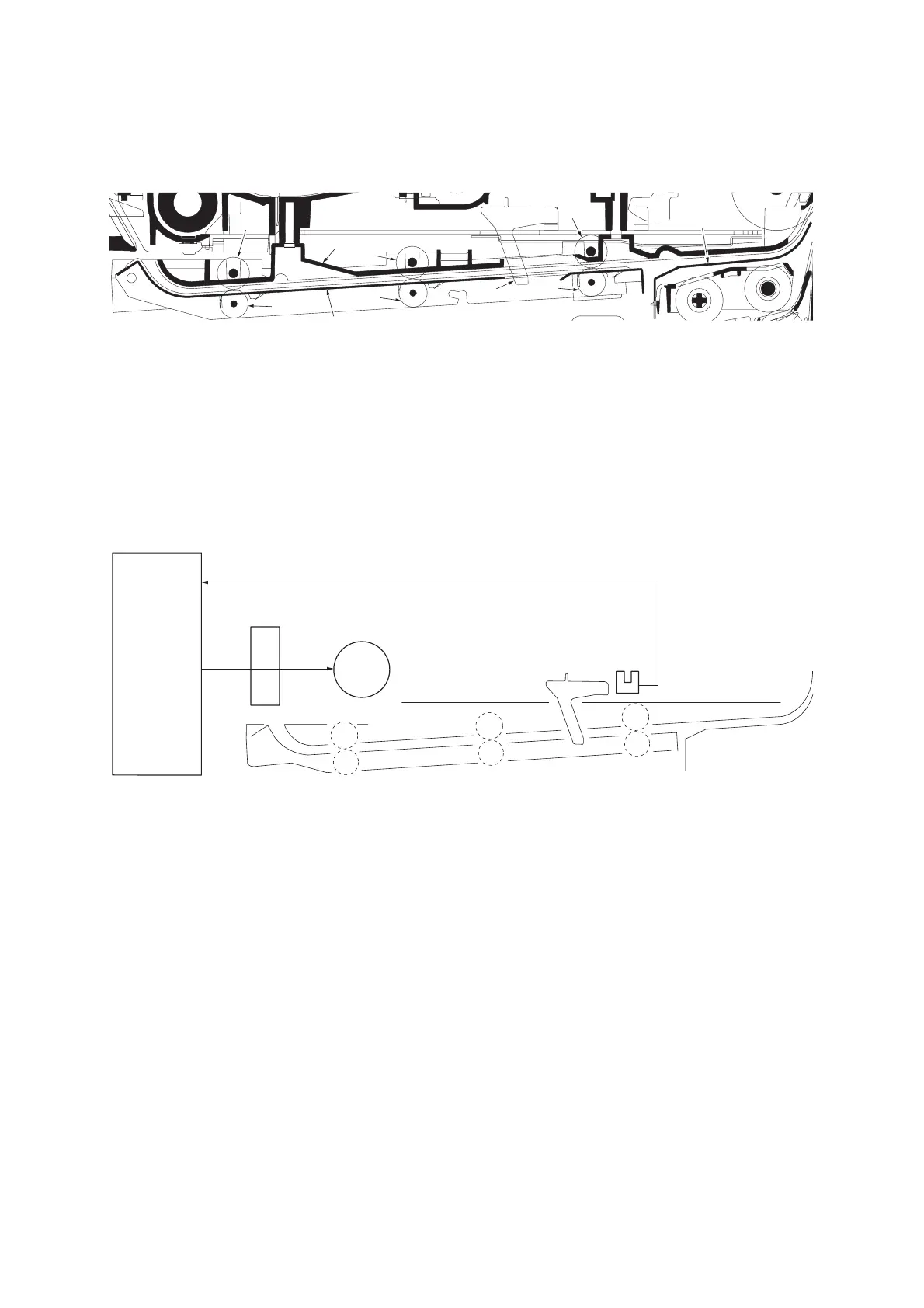

Figure 2-1-21Duplex conveying section
Figure 2-1-22Duplex conveying section block diagram










(1) DU roller
(2) DU feed pulley
(3) DU base
(4) DU lower guide
(5) DU roller
(6) DU feed pulley
(7) Duplex jam sensor
(actuator)
(8) DU roller
(9) DU feed pulley
(10) Feed upper guide
Engine PWB
Duplex
clutch
Connect-R
PWB
Duplex conveying section
Duplex jam
sensor
YC502-1
DUDRN
