Kyocera FS-6970DN Service Manual

2J5
2-1-1
2-1 Mechanical Construction
2-1-1 Paper feed section
Paper feed section consists of the paper feed unit that feeds paper from the paper cassette and the MP tray paper feed
unit that feeds paper from the MP tray, and the paper feed conveying section that conveys the fed paper to the transfer/
separation section.
(1) Paper cassette paper feeding
Paper cassette is the universal type that is applicable to various paper sizes by adjusting the side guides and paper stop-
per and approximate 250 pages can be put in. Mechanism in the paper cassette consists of the bottom plate that lifts the
paper in order to let it touch the pickup roller and the retard roller that prevents papers from multiple feeding. Paper that is
drawn out by the rotation of pickup roller of the paper cassette paper feed section is then sent in between the feed roller
and the retard roller. Function of the built-in torque limiter in the retard roller gives weak resistance force against the rota-
tion. Normally, when only a page is drawn out by the rotation of pickup roller, the paper is conveyed to the printer by the
rotation of feed roller on its own. If the pickup roller drew out two lapped pages someway, the upper paper is conveyed by
the feed roller and the lower paper stays due to the rotation resistant force of the retard roller because the friction force
between papers is smaller than the rotation resistance force of the retard roller and then the multiple paper feed can be
prevented.

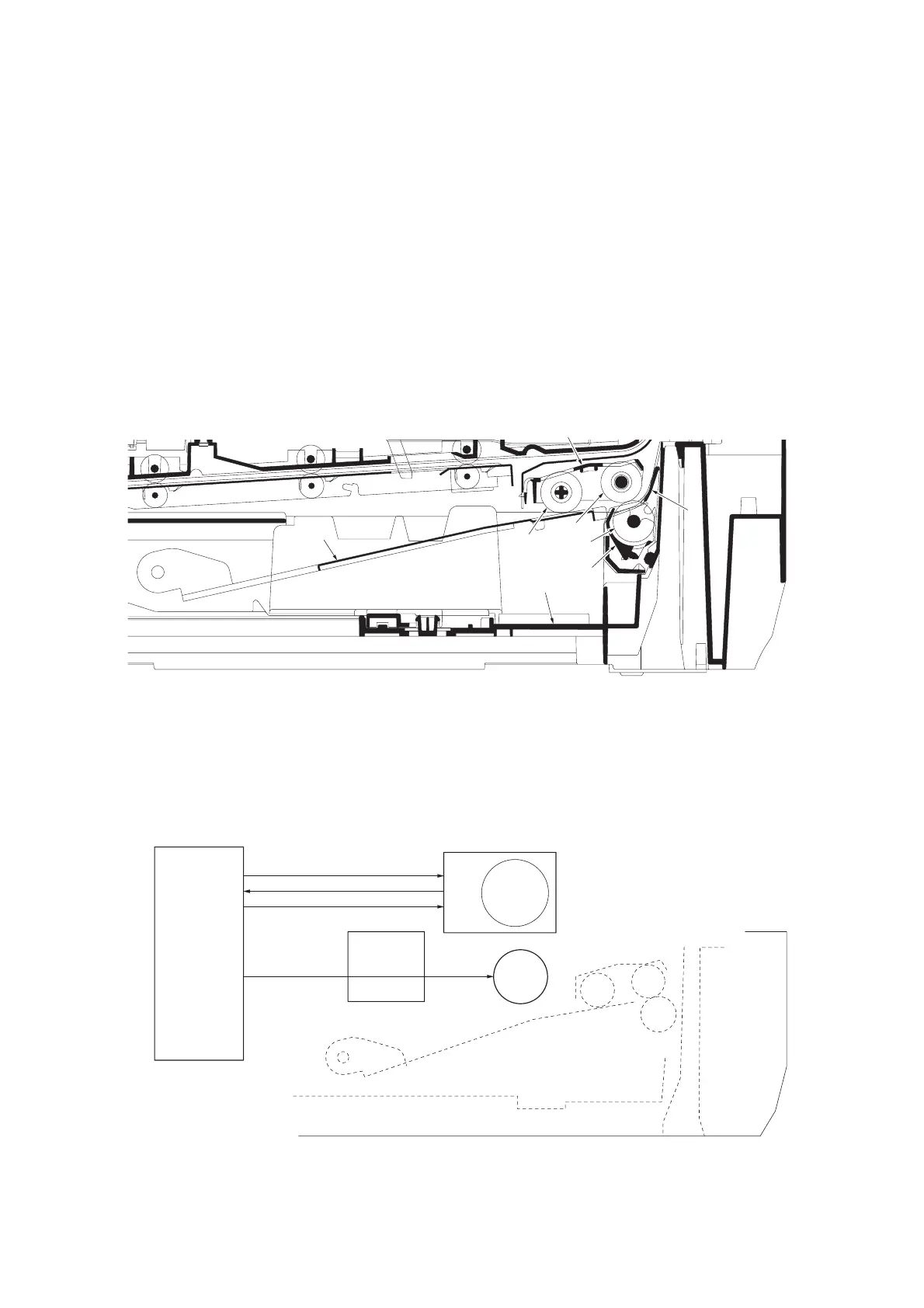

Figure 2-1-1 Paper cassette section
Figure 2-1-2Paper cassette section block diagram








(1) Pickup roller
(2) Paper feed roller
(3) Feed holder
(4) Retard roller
(5) Retard holder
(6) Bottom plate
(7) Retard guide
(8) Cassette base
Engine PWB
Connect-R
PWB
Main
motor
Feed
clutch
3
4
5
YC501-3
YC501-4
YC501-5
YC8-8
MMOTONN
MMOTRDYN
MMOTCLK
FEEDDRN

Kyocera FS-6970DN Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	35 ppm
Duplex print speed (black, normal quality, A4/US Letter)	17 ppm
Processor model	440
Processor family	PowerPC
Maximum internal memory	1152 MB
Sound power level (standby)	29 dB
Sound pressure level (printing)	51 dB
Power requirements	AC 220-240 V, 50/60 Hz
Total input capacity	350 sheets
Total output capacity	250 sheets
Maximum input capacity	1350 sheets
Multi-Purpose tray input capacity	100 sheets
Custom media width	70 - 297 mm
Maximum print size	297 x 432 mm
Custom media length	148 - 450 mm
Paper tray media types	Plain paper
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Ledger (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A3, A4, A5
ISO B-series sizes (B0...B9)	B4, B5
Maximum ISO A-series paper size	A3
Multi-Purpose Tray media weight	60 - 220 g/m²
Security algorithms	802.1x RADIUS, SSL/TLS
Mobile printing technologies	Not supported
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	9.6 W
Power consumption (printing)	516 W
Power consumption (PowerSave)	6.3 W
Certification	GS, TÜV, CE
Product color	Black, Grey
Printing colors	Black
Maximum duty cycle	150000 pages per month
Recommended duty cycle	20000 pages per month
Number of print cartridges	1
Page description languages	Epson LQ, IBM ProPrinter, PCL 5c, PCL 6, PostScript 3
Standard interfaces	Ethernet, Parallel, USB 2.0
Mac operating systems supported	Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Dimensions (WxDxH)	469 x 395 x 285 mm
