2J5
1-5-5
1-5-3 Paper feed section
(1) Detaching and refitting the paper feed assembly (paper feed roller and pickup roller)
Procedure
1. Remove the paper cassette.
2. Slide the paper feed roller pin.
3. While pressing the lever and then remove
the paper feed roller assembly.
4. Check or replace the paper feed assembly
and refit all the removed parts.

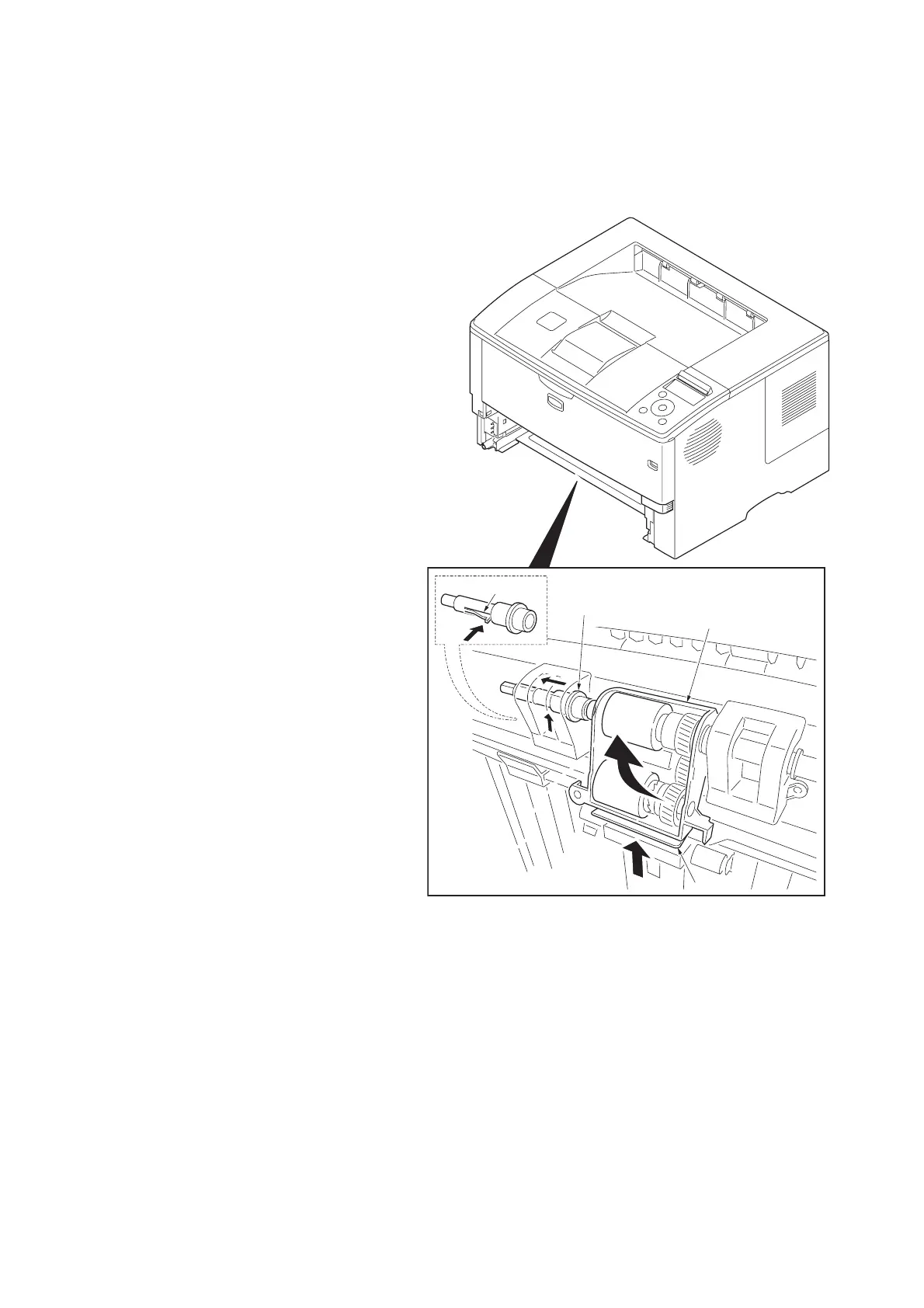

Figure 1-5-6
(Paper
feed roller)
(Pickup
roller)
Lever
Paper feed assembly
Paper feed roller pin
Lock
To Next Page
