Kyocera FS-6970DN - Detaching and Refitting the Right Cover and Left Cover

2J5
1-5-4
(2) Detaching and refitting the right cover and left cover
Procedure
1. Remove the paper cassette.
2. Open the MP tray.
3. Open the rear unit.
4. Remove the top cover (See page P.1-5-3).

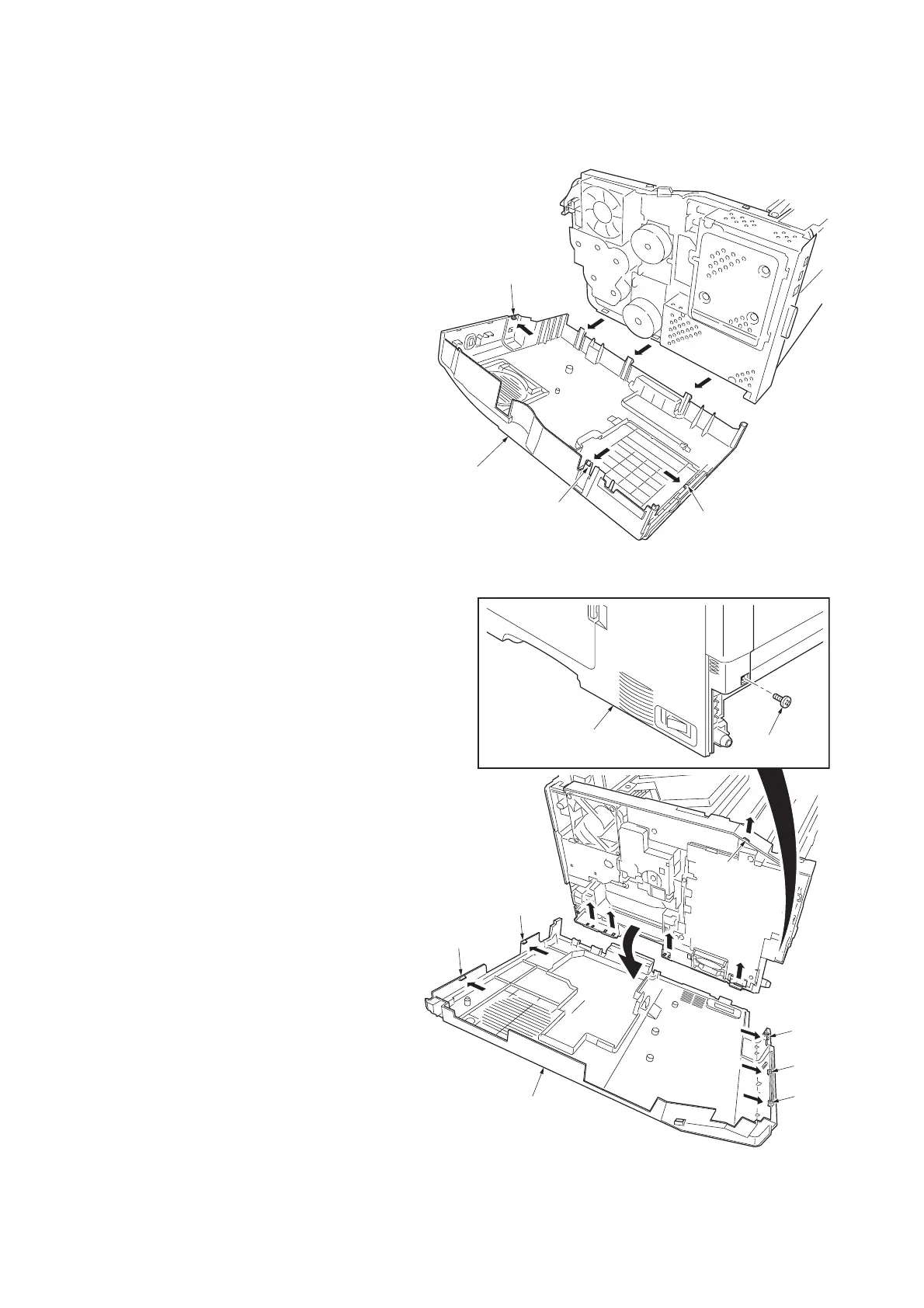

5. Unlatch three latches and then remove the
right cover.
Figure 1-5-4
6. Remove the screw.
7. Unlatch six latches and then remove the left
cover.
Figure 1-5-5
Latch
Latch
Latch
Right cover
Latch
Latch
Latch
Latch
Latch
Latch
Left cover
Left cover
Screw
