(2) Detaching and refitting the main drive unit
Procedure
1. Remove the top cover (See page P.1-5-3).
2. Remove the right cover (See page P.1-5-4).
3. Remove the controller box (See page P.1-5-
27).
4. Remove two connectors.
5. Remove five screws and then remove the
main drive unit.
6. Check or replace the main drive unit and
refit all the removed parts.

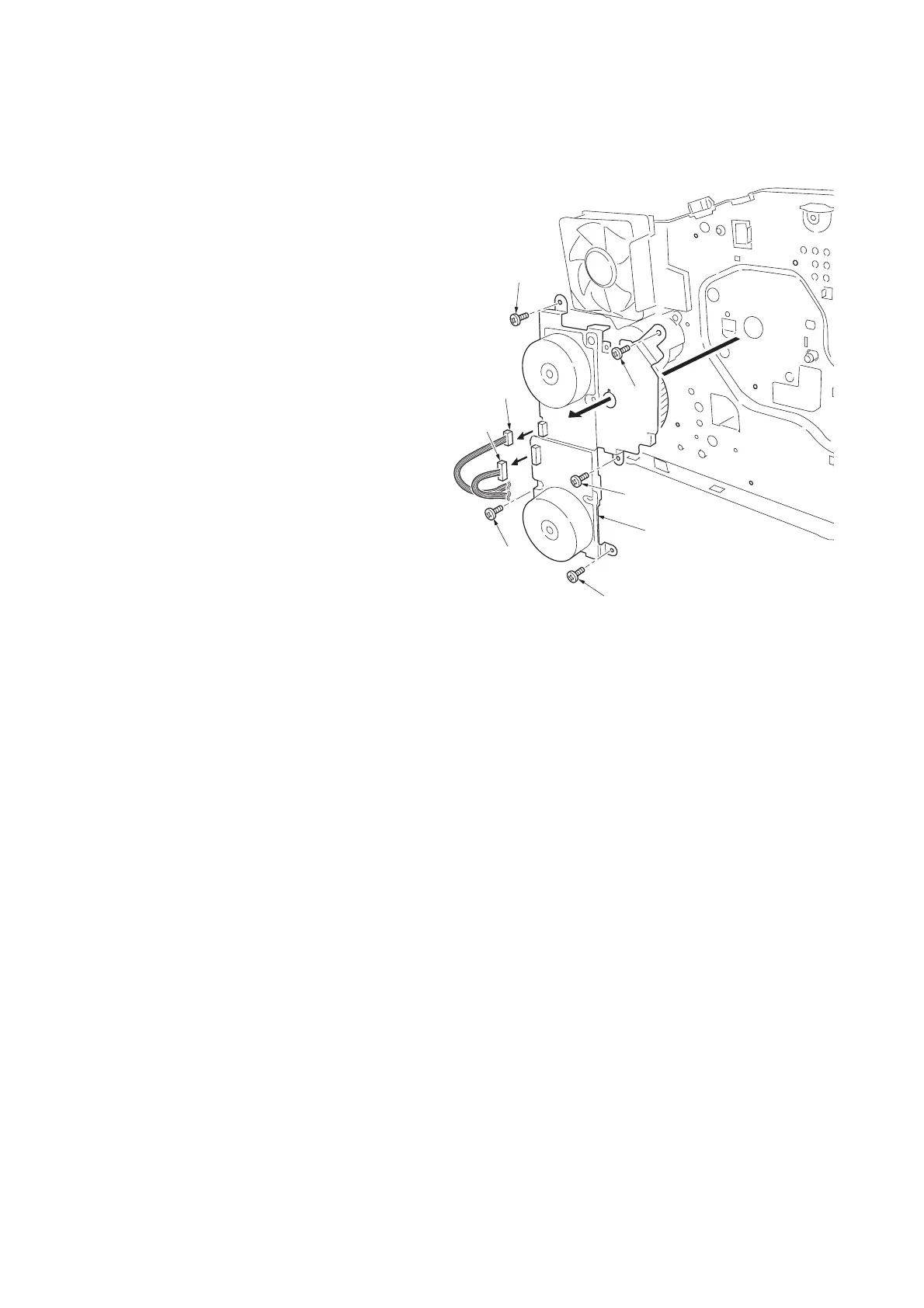

Figure 1-5-48
Connector
Connector
Screw
Screw
Screw
Screw
Screw
Main drive unit
