Kyocera FS-6970DN Service Manual

2J5
2-1-3
(3) Paper feed conveying section
The conveying section consists of the parts shown in the following illustration and conveys papers from the paper cassette
or the MP tray to the transfer/separation section when papers are fed. Paper by feeding or refeeding is conveyed by the
middle feed roller to the position where the registration sensor is turned on, and then sent to the transfer/separation sec-
tion by the upper registration roller and lower registration roller.

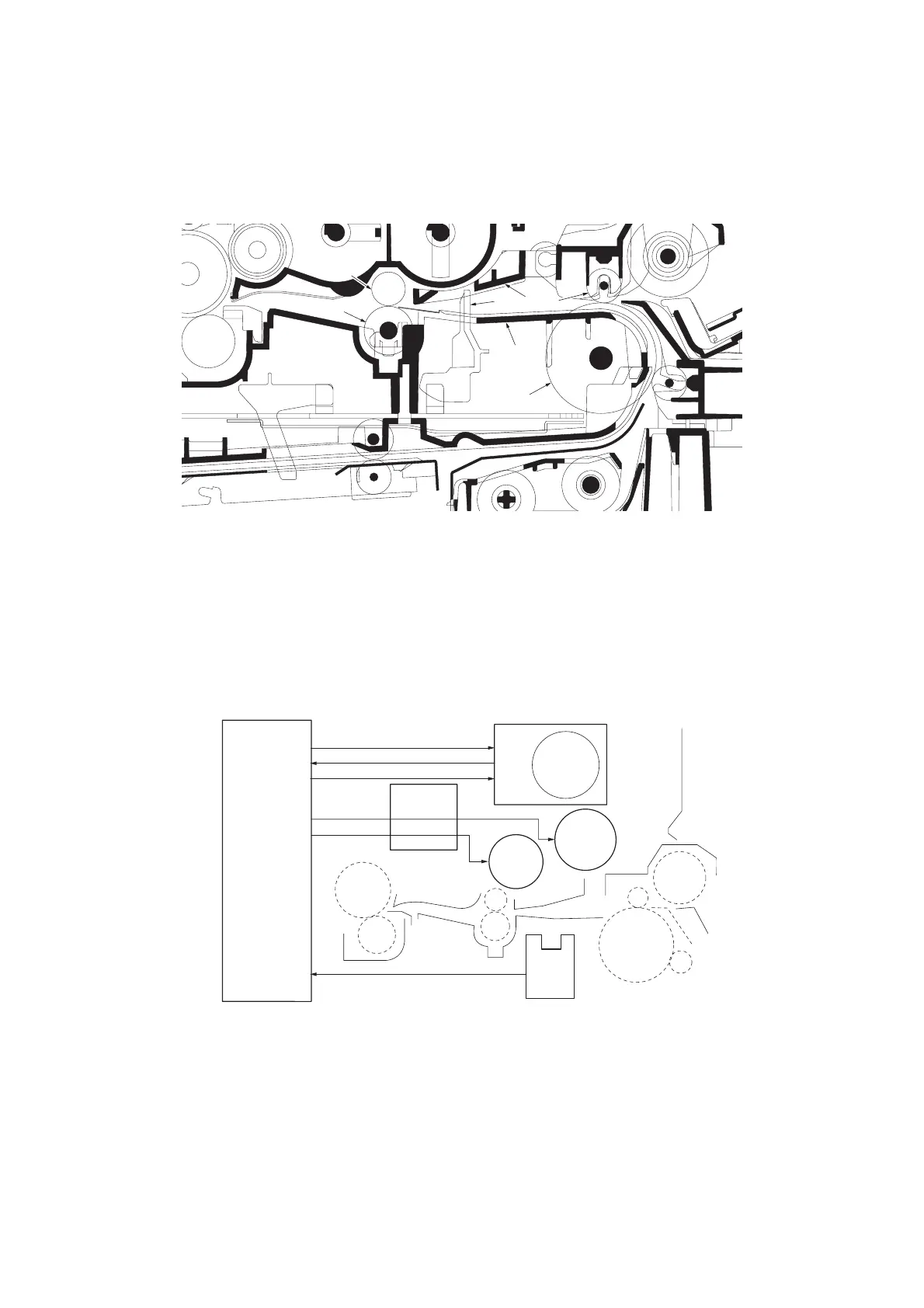

Figure 2-1-5Paper feed conveying section
Figure 2-1-6Paper feed conveying section block diagram







(1) Middle feed roller
(2) Feed DU pulley
(3) Feed frame
(4) Registration upper guide
(5) Registration sensor (actuator)
(6) Registration lower roller
(7) Registration upper roller
Engine PWB
Connect-R
PWB
Main
motor
Regist-
ration
clutch
Middle
feed
clutch
Regist-
ration
sensor
3
4
5
YC501-3
YC501-4
YC501-5
YC502-6
MMOTONN
MMOTRDYN
MMOTCLK
REGDRN
YC502-3
MIDDRN

Kyocera FS-6970DN Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	35 ppm
Duplex print speed (black, normal quality, A4/US Letter)	17 ppm
Processor model	440
Processor family	PowerPC
Maximum internal memory	1152 MB
Sound power level (standby)	29 dB
Sound pressure level (printing)	51 dB
Power requirements	AC 220-240 V, 50/60 Hz
Total input capacity	350 sheets
Total output capacity	250 sheets
Maximum input capacity	1350 sheets
Multi-Purpose tray input capacity	100 sheets
Custom media width	70 - 297 mm
Maximum print size	297 x 432 mm
Custom media length	148 - 450 mm
Paper tray media types	Plain paper
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Ledger (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A3, A4, A5
ISO B-series sizes (B0...B9)	B4, B5
Maximum ISO A-series paper size	A3
Multi-Purpose Tray media weight	60 - 220 g/m²
Security algorithms	802.1x RADIUS, SSL/TLS
Mobile printing technologies	Not supported
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	9.6 W
Power consumption (printing)	516 W
Power consumption (PowerSave)	6.3 W
Certification	GS, TÜV, CE
Product color	Black, Grey
Printing colors	Black
Maximum duty cycle	150000 pages per month
Recommended duty cycle	20000 pages per month
Number of print cartridges	1
Page description languages	Epson LQ, IBM ProPrinter, PCL 5c, PCL 6, PostScript 3
Standard interfaces	Ethernet, Parallel, USB 2.0
Mac operating systems supported	Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Dimensions (WxDxH)	469 x 395 x 285 mm
