Kyocera FS-6970DN - Detaching and Refitting the Laser Scanner Unit

2J5
1-5-35
(3) Detaching and refitting the laser scanner unit
Procedure
1. Remove the top cover (See page P.1-5-3).
2. Remove the right cover (See page P.1-5-4).
3. Remove two connectors from the main
PWB.

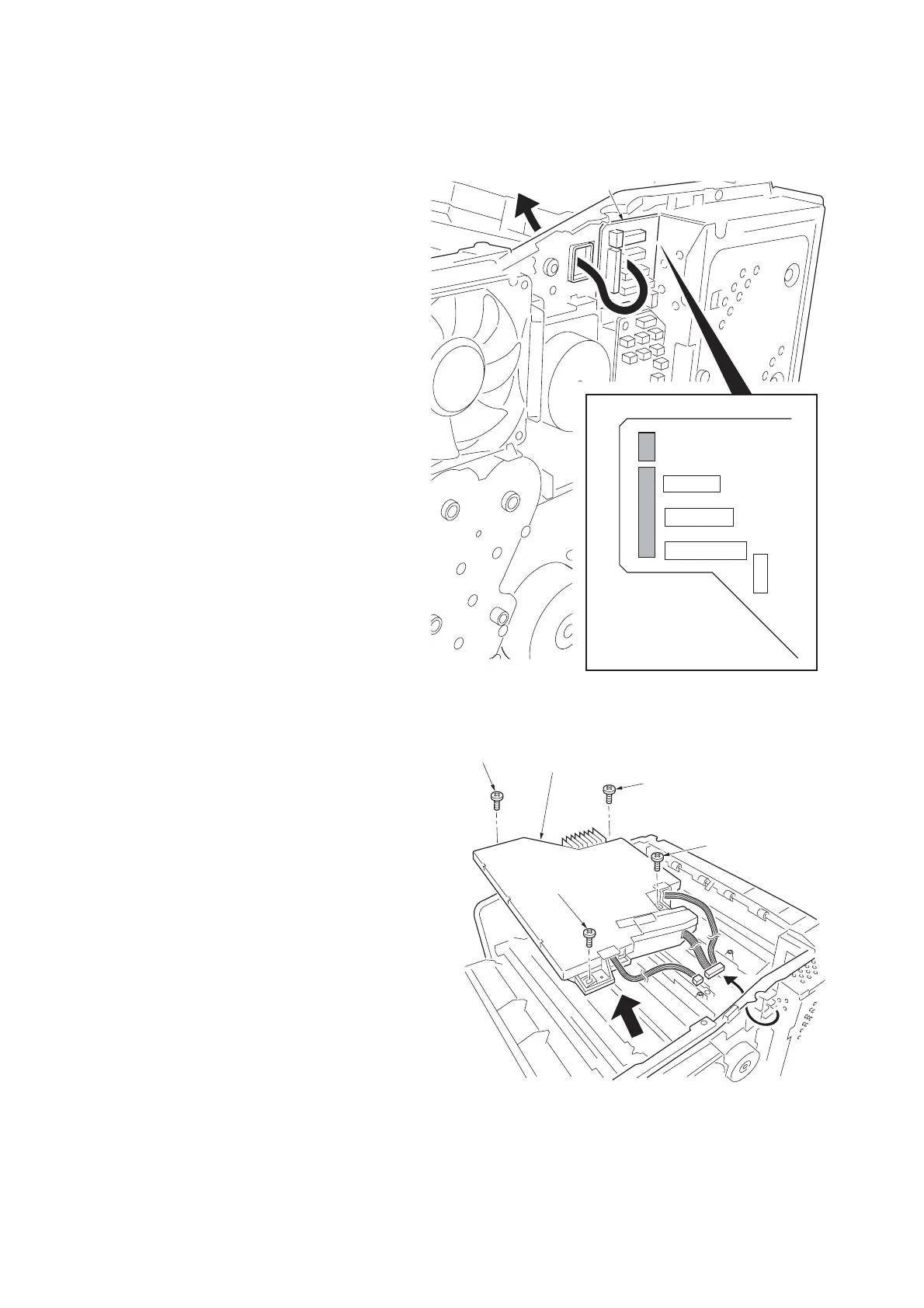

Figure 1-5-49
4. Remove four screws and then remove the
laser scanner unit.
5. Check or replace the laser scanner unit and
refit all the removed parts.
Figure 1-5-50
Main PWB
Main PWB
YC7
YC14
YC12
YC16YC11
YC4
Connectors
Laser scanner unit
Screw
Screw
Screw
Screw
