2J5
1-5-17
(2) Detaching and refitting the fuser heater lamp M and S
Procedure
1. Remove the fuser unit (See page P.1-5-16).

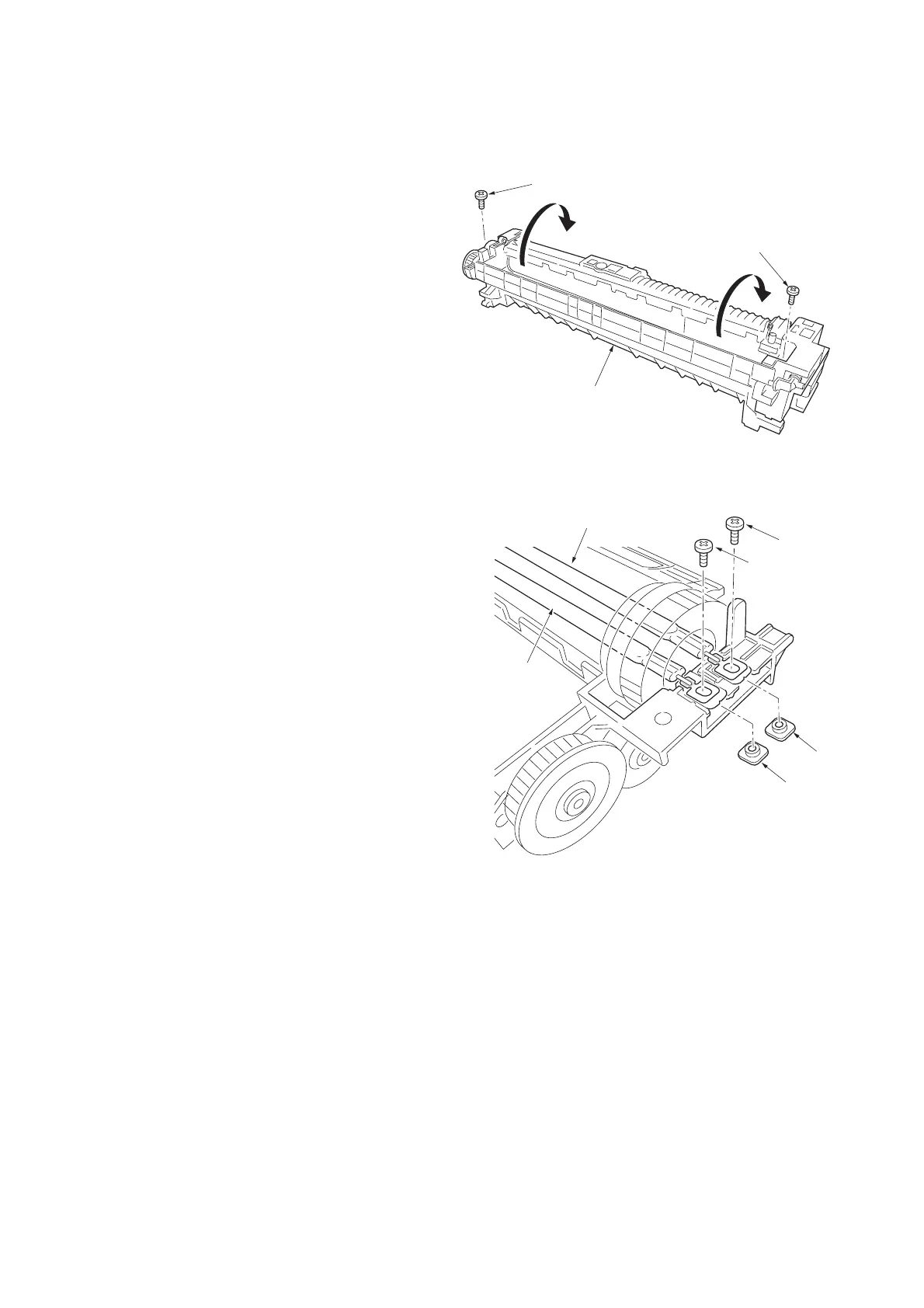

2. Remove two screws and then open the
fuser unit.
NOTE:
When fixing the screw again, be careful not
to tighten the screw too much because the
fuser lower frame is made of resin.
Figure 1-5-23
3. Remove two screws from the fuser heater
lamp M and S.
Figure 1-5-24
Screw
Screw
Fuser unit
Nut
Nut
Fuser heater lamp M
Fuser heater lamp S
Screw
Screw
To Next Page
