2J5
1-5-18
4. Remove two screws from the fuser heater
lamp M and S.
5. Remove the fuser heater lamp M and S.
6. Check or replace the fuser heater lamp M
and S, and refit all the removed parts.
Seat the fuser heater lamp M and S aligning
its wattage mark and welding mark faced
with the correct direction and side.

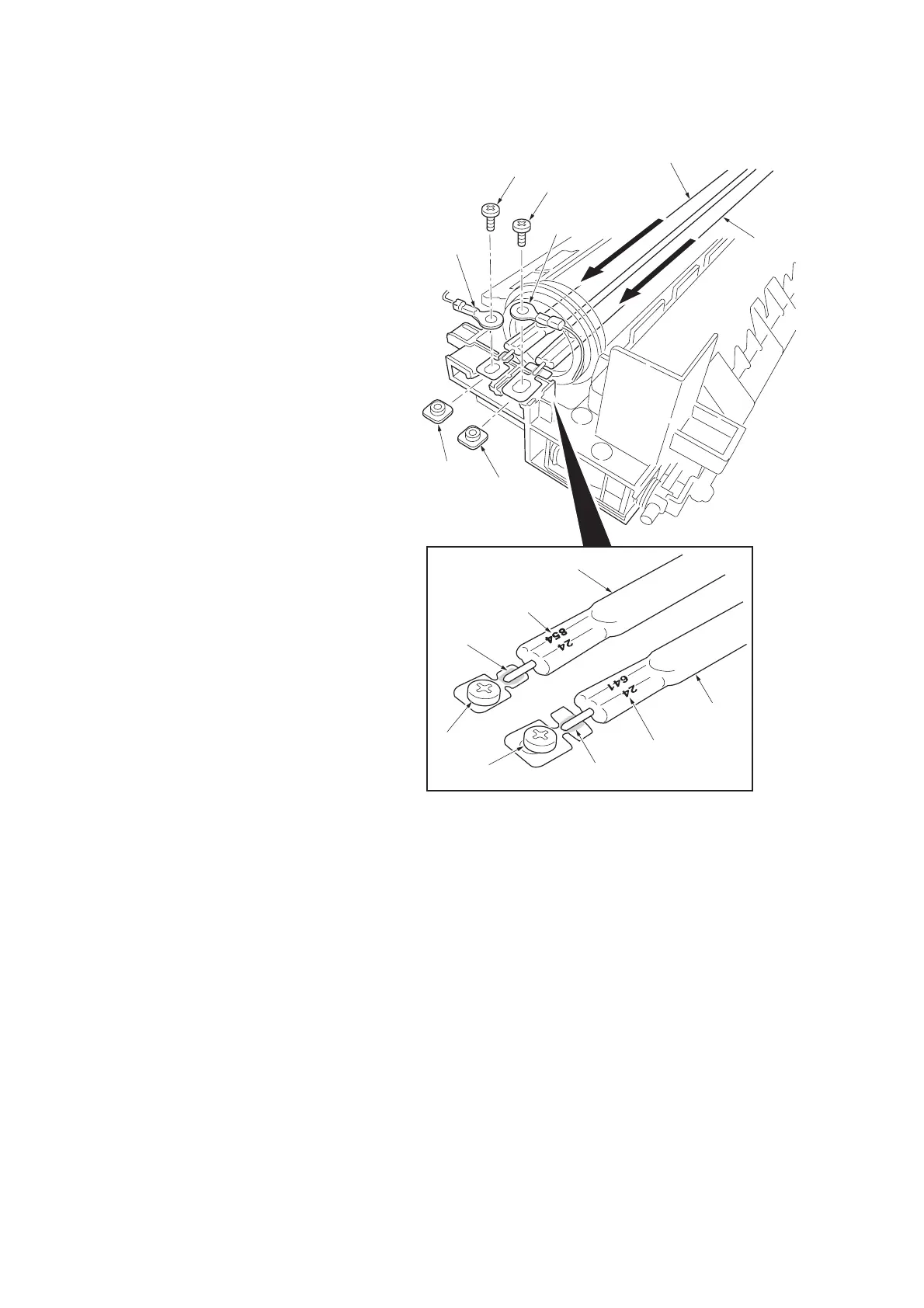

Figure 1-5-25
Fuser heater lamp M
Fuser heate
r
lamp S
Nut
Nut
Terminal
Terminal
Screw
Screw
Screw
Screw
Fuser heater
lamp S
Fuser heater lamp M
Rating mark
Rating mark
Welding side
Welding side
