Kyocera FS-6970DN - Detaching and Refitting the Press Roller

2J5
1-5-20
(4) Detaching and refitting the press roller
Procedure
1. Remove the fuser unit (See page P.1-5-16).
2. Open the fuser unit (See page P.1-5-17).
3. Remove the press roller from the fuser lower
frame.
4. Remove two bearings.
5. Check or replace the press roller and refit all
the removed parts.

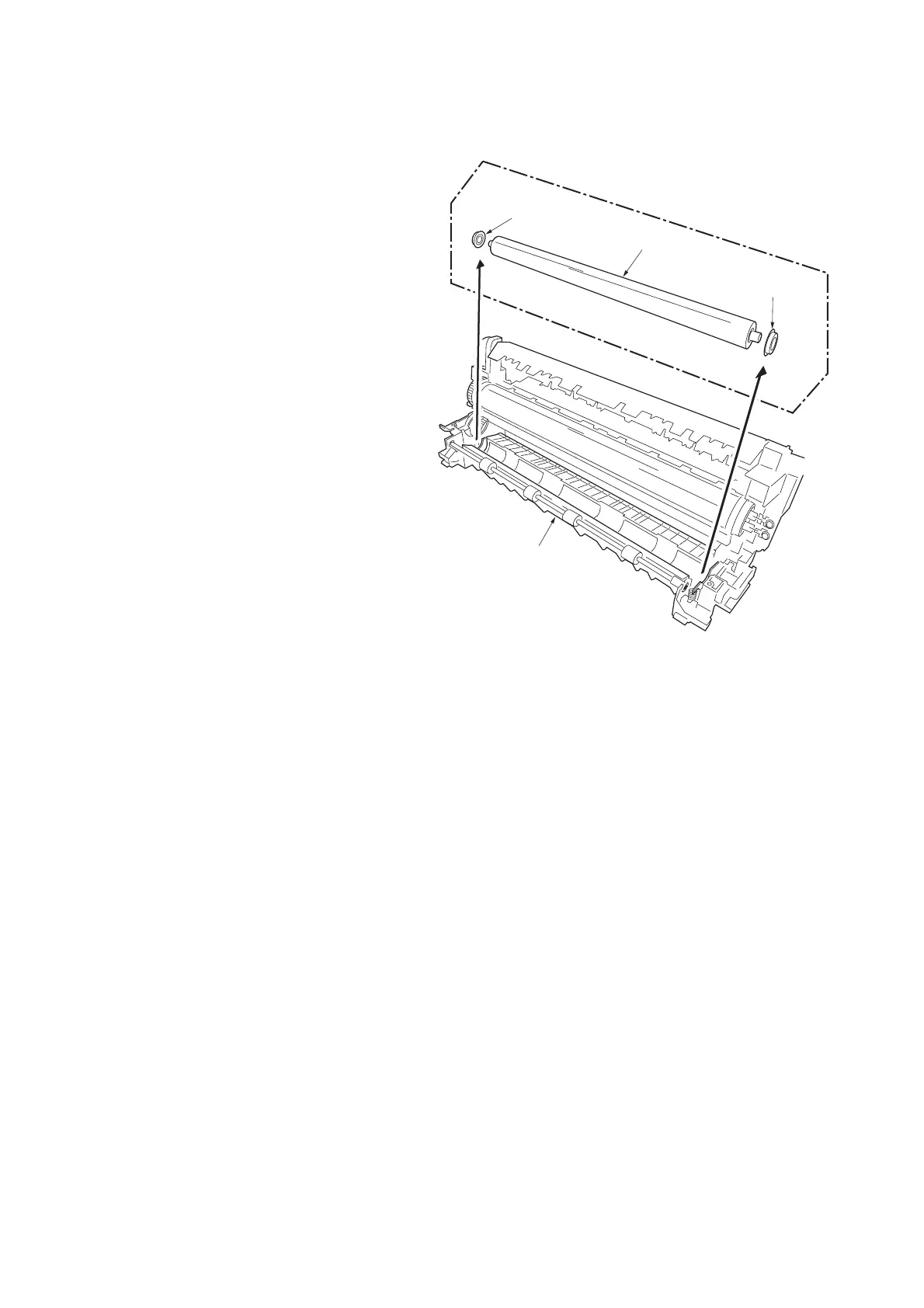

Figure 1-5-27
Press roller
Fuser lower frame
Bearing
Bearing
