1-5-4 Developer section
(1) Detaching and refitting the developer unit
Procedure
1. Open the top cover.
2. Open the MP tray.
3. Remove the developer unit.
4. Check or replace the developer unit and refit
all the removed parts.

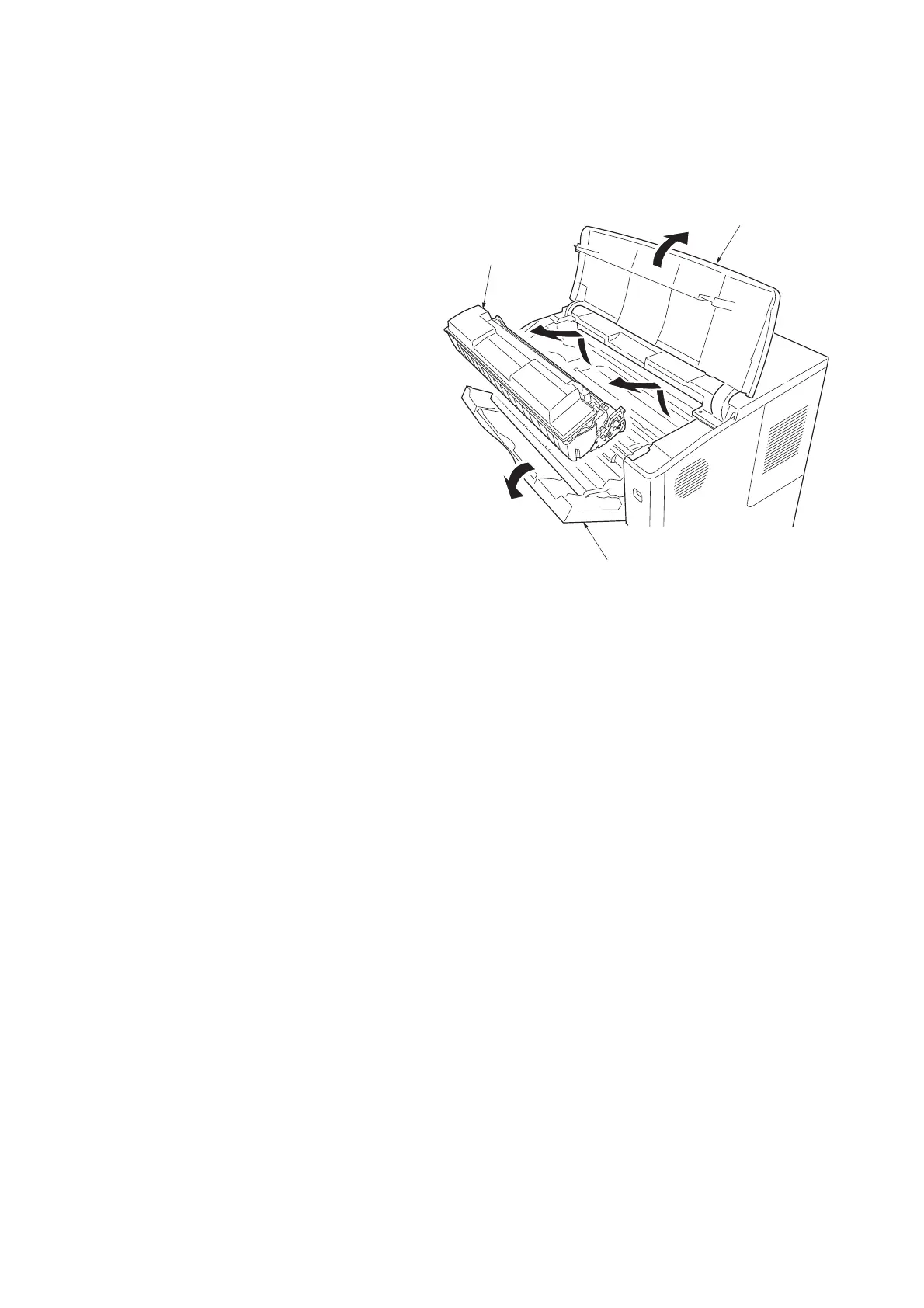

Figure 1-5-16
Developer unit
Top cover
MP tray
