(4) Detaching and refitting the MP tray paper feed roller
Procedure
1. Remove the paper cassette.
2. Open the top cover.
3. Remove two holders from the main unit
frame.

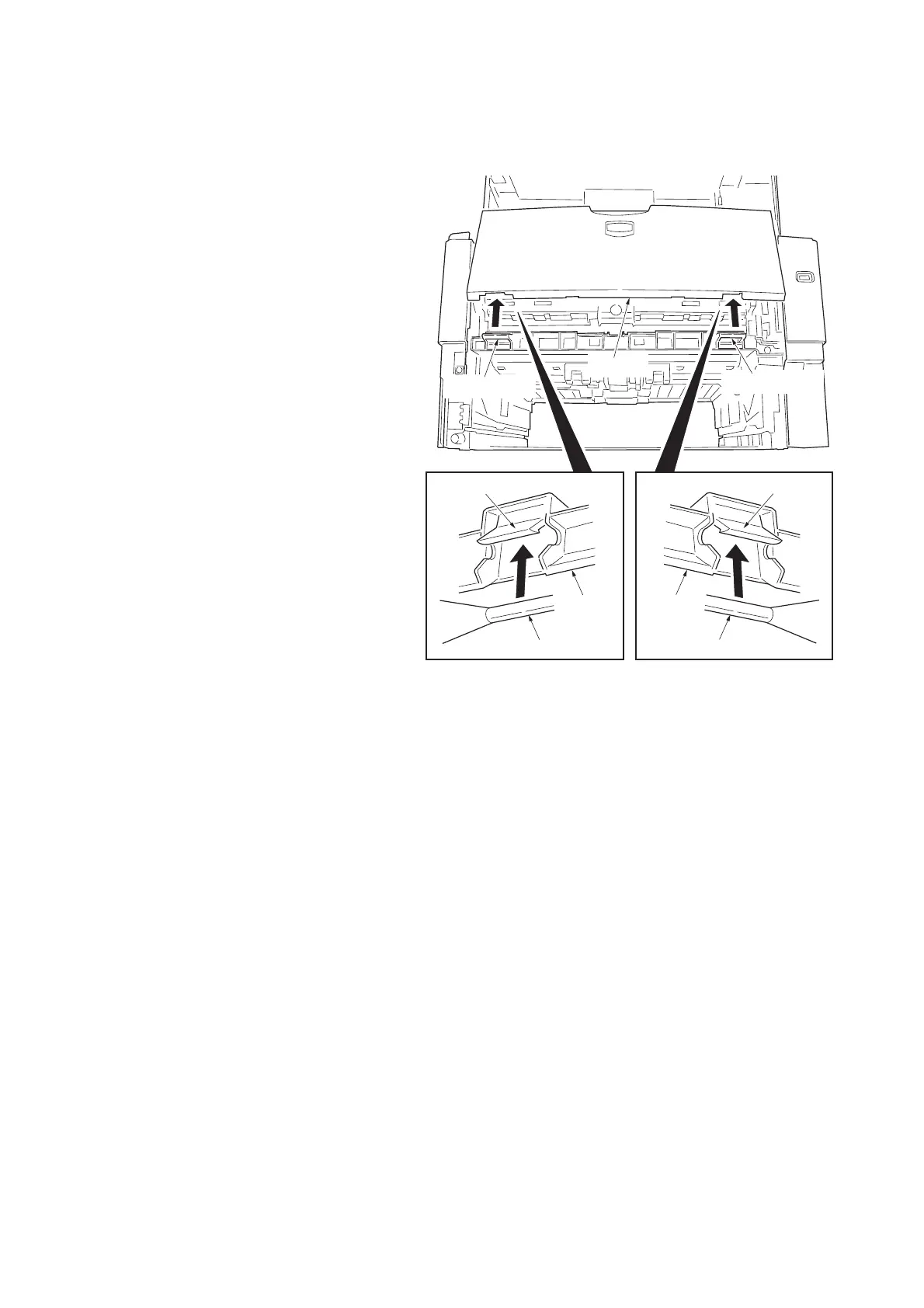

Figure 1-5-13
MP tray
(back side)
MP tray
(back side)
Holder
Holder
Main unit frameMain unit frame
Main unit frame
Main unit frame
MP tray
