6. Remove the stopper.
7. Slide the bush.

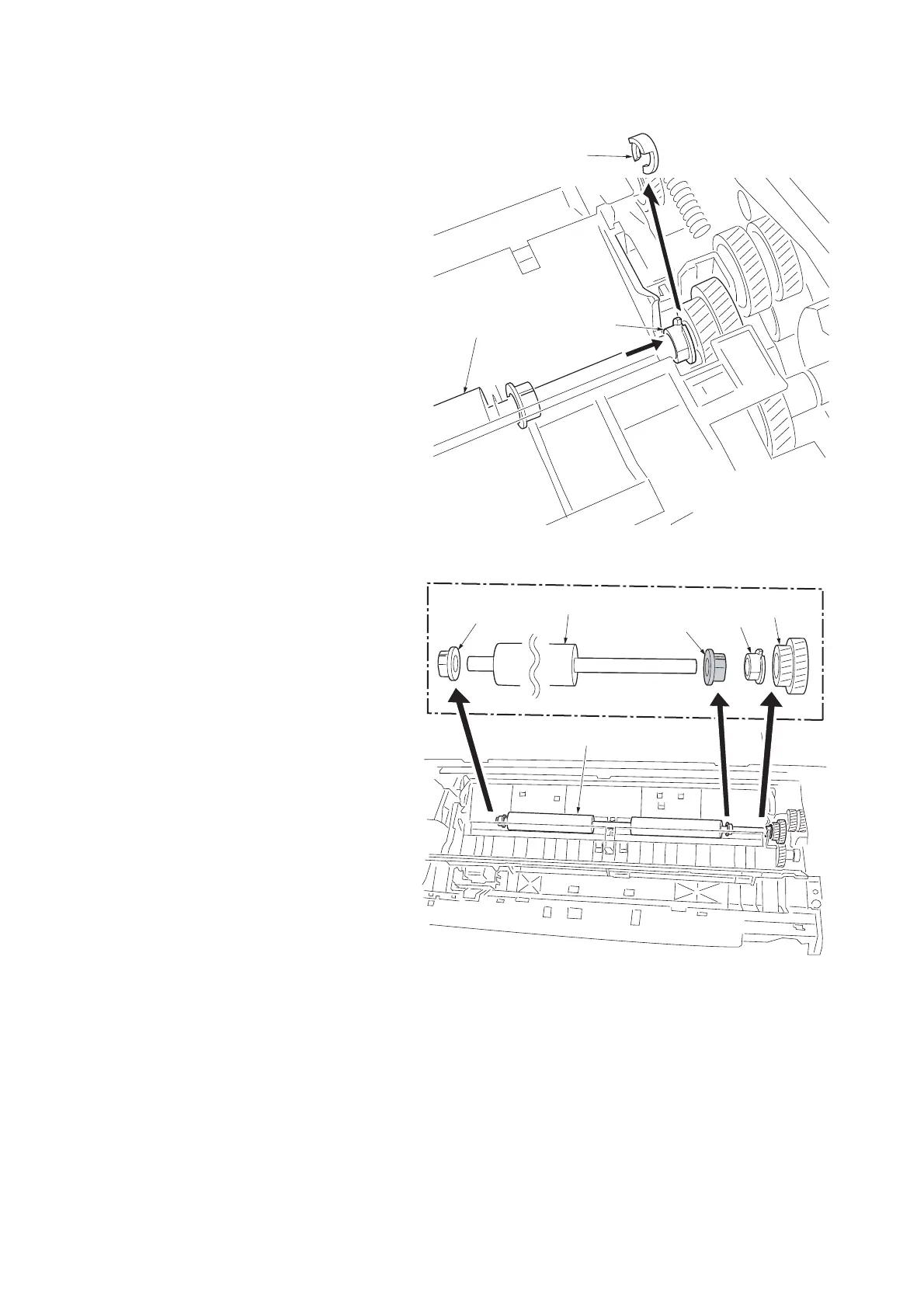

Figure 1-5-11
8. Remove the registration lower roller.
9. Remove the gear and three bushes from the
registration lower roller.
10. Check or replace the registration upper and
lower roller and refit all the removed parts.
Figure 1-5-12
Bush
Registration lower roller
Stopper
Registration lower roller
Registration lower roller
Bush
Bush
Bush
Gear
