Kyocera FS-6970DN - Detaching and Refitting the Power Source Unit

2J5
1-5-29
(3) Detaching and refitting the power source unit
Procedure
1. Remove the top cover (See page P.1-5-3).
2. Remove the left cover (See page P.1-5-4).
3. Remove the drum unit (See page P.1-5-12).
4. Remove the connector (YC11) from the con-
nect-L PWB.
5. Remove the wires from the drum grounding
plate and clamp.
6. Remove two hooks and then remove the
PSU fan motor.

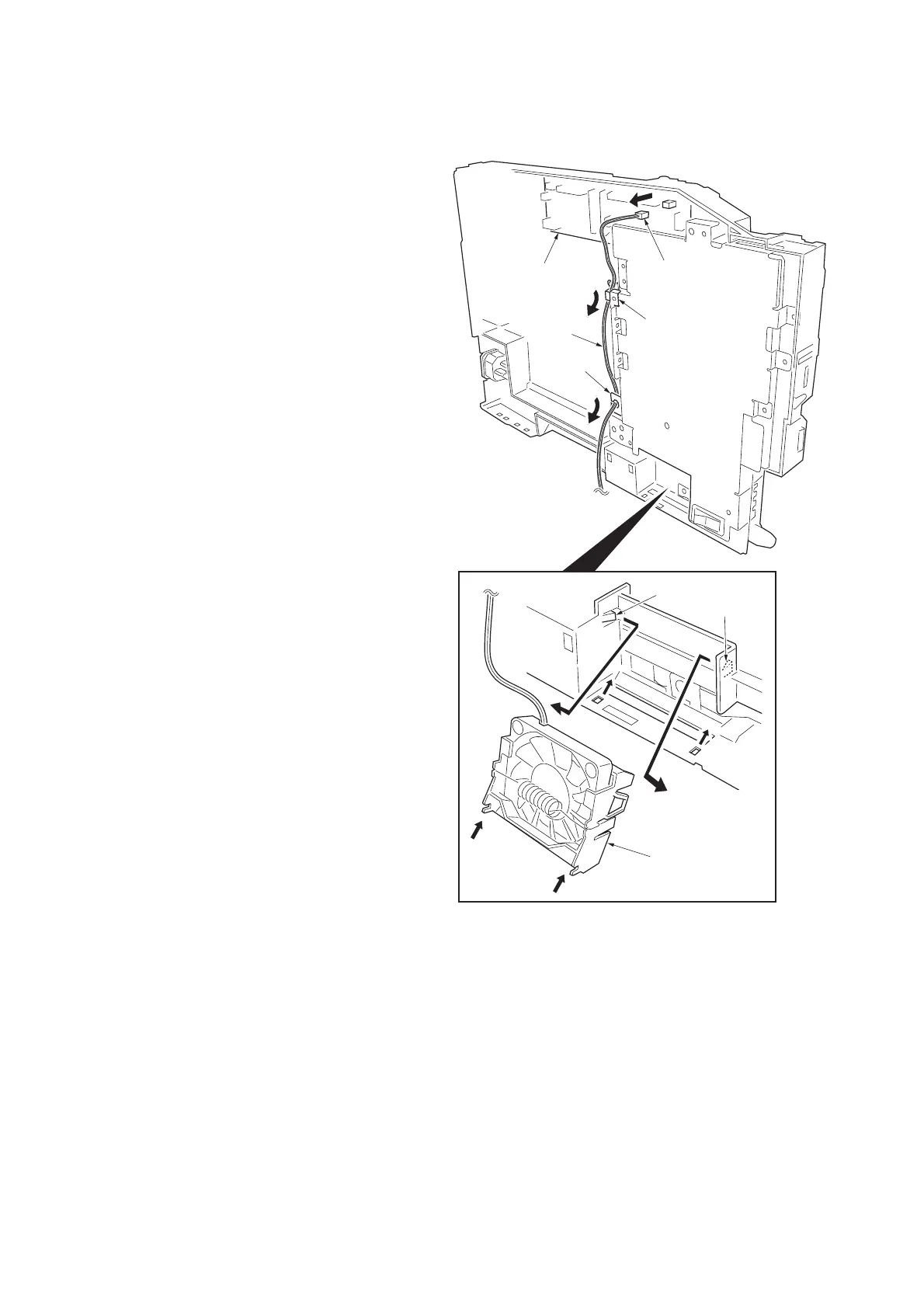

Figure 1-5-42
Connector (YC11)
Connect-L PWB
PSU fan motor
Hook
Hook
Drum grounding plate
Clamp
Wires
